Automatic Labelling Machine
>
|
| Place of Origin | China |
| Brand Name | LTPM China |
| Certification | CE, GMP |
| Model Number | MT |

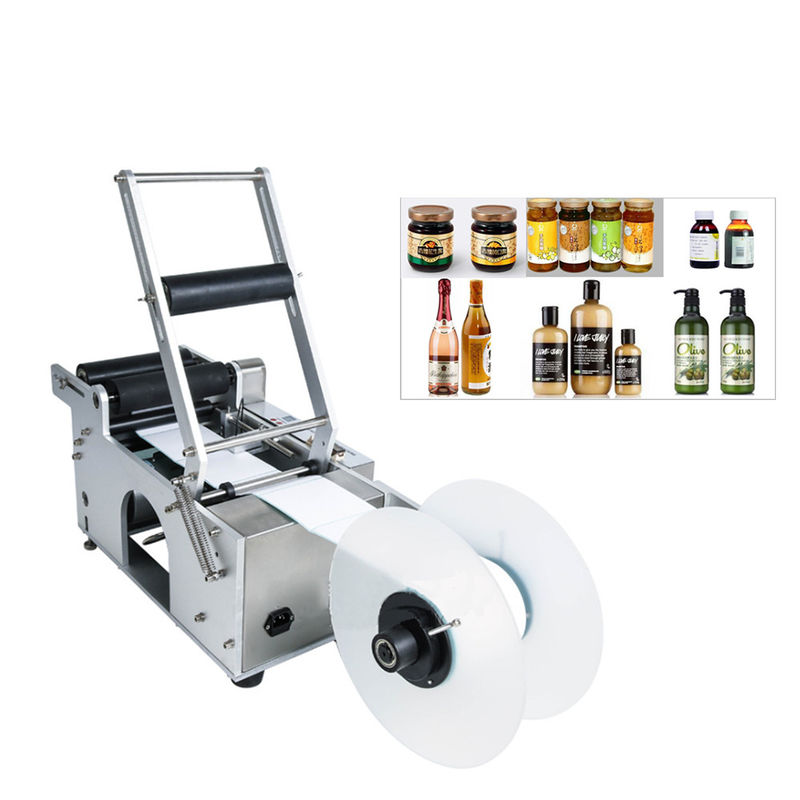

This newest labeling machine features many advantages, it has a samll footprint, lightweight design, pefectly suitable to use in a small space.
Full automatic processing provided by PLC controll and fast labelling speed to save your precious time, it's the best choice for
automatic labelling in a such small form factor.
Additionally, it can attach to bottle organizing machine to add bottle feeding and retracting functions.
Specifications:
| Labeling precision | ±0.5mm (exclude the product and label deviation) |
| Labeling speed | 20～40 pcs/minute (related to product size) |
| Product size applicable | 15≤≤diameter≤150mm |
| Label size applicable | 20≤width≤180mm,10mm≤length |
| Size of whole machine | 550×450×450mm (length×width×height) |
| Power supply | 220V 50/60HZ |
| Weight | 25kg |
Detail
1.PLC control
Intelligent control ,with no object no labeling , no standard automatic calibration ,and automatic detection tags ,labels and avoid waste drain posts.
2.Traction unit
High-quality materials,fine workmanship,original imported ,quality assurance.
3.Electric sensor for label
German leuze label detection sensor have stable.
4.Automatic bottle splitting mechanism
The use of the separation mechanism to improve the stability,effectively eliminate the bottle is not caused by the error of the bottle itself is not smooth.
Feature:
1. ightweight & Humanized Design: Small enough to sit on a desk comparing to the normal automatic labelling machine which is giant
and uneasy to move around.
2.Automatic Photoelectric Sensor: Smart controll for labelling and bottle decteting, it has automatic label calibration and
detection to avoid any waste of labels.
3.Automatic Bottle Feeding: Seperates bottles automatically to improve stablity by eliminating the small size difference between
each bottles.
4.Stainless Steel Body: Elegant appearance, non-deformation, high quality 304SS material that meets GMP standard, providing the
best using experience.
5.Best Imported Component: Carefully picking the best component to build the machine, ensures high quality and long service life.
6.Automatic Batch Process: Easy to operate and maintian, lowering labor cost and improving efficiency.
7.Multiple Functions: Automatic counting and stopping to save electricity, automatic save settings, etc.
8.Touch Screen Controll :Easy to controll and switch different settings, it features a user interface with guides.
9.High Labelling Stablity :Labelling is straight and flat, no bubbles or creases.
Application
