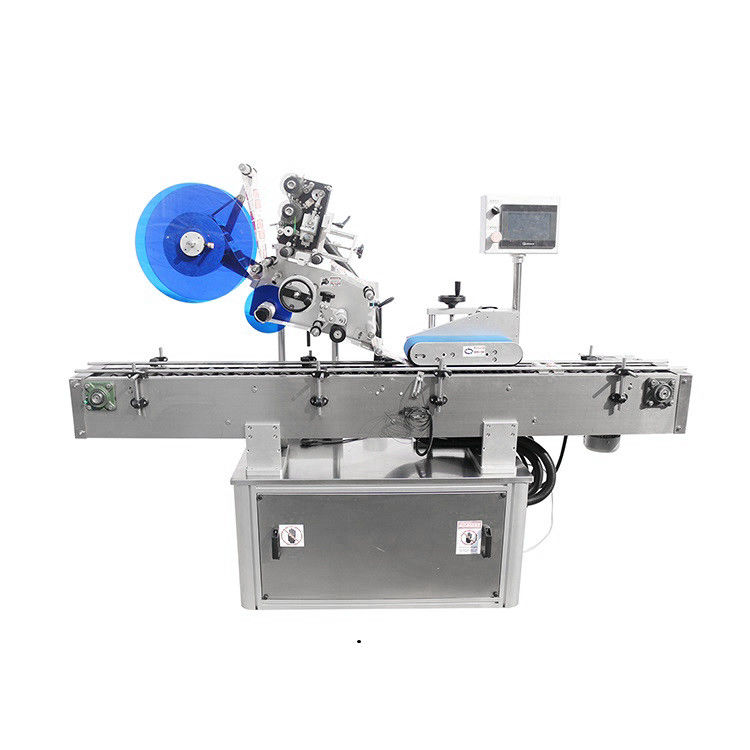

Automatic Labelling Machine
>
|
|
| Place of Origin | China |
| Brand Name | LTPM China |
| Certification | CE, GMP |
| Model Number | MT |
Description:
1. Imported electric elements, stable performance, low failure rate;
2. Using touch-screen man-machine interface operating system, simple and efficient;
3. Upgraded disc label station design, also can suit for conical and flask bottle.
4. Screw adjustment to suppress body movements accurately
5. Synchronization chain mechanism ensure labeling smooth and precise calibration.
6. Advanced technology of pneumatic coding system, print the batch number and expiry date clearly.
7. Transmission-type roll label device, make sure the label attached more firmly;
8. Butterfly designed station, machine’s angle can be adjusted to adapt different bottle's shape and size.
9. Adopt mature technology PLC control system, operation is stable and high-speed;
10. Adopting photoelectric detection, PLC control system, software operation, conveyor belt, labeling accurately and high precision;
11. Can be operated alone or contract with the production line;
12. No bottle not labeling, automatic alarm when achieve leakage label.
13. The whole machine use the material of S304 stainless steel and anodized senior aluminum alloy, with high corrosion resistance and never rust;
Applications:
1.Food & Beverage Industry
Suitable : Mineral Water, Pure Water
Bottle Material : PET / PE / Glass / Metal
Bottle Type : Round / Square / Unique
Label Material : PVC/PET Shrink Label
2.Daily chemical & Beauty Industry
Suitable : Daily chemical products
Bottle Material : PET / PE / Glass / Metal
Bottle Type : Round / Square / Unique
Label Material : PVC/PET Shrink Label
3.Pharmaceutical & Health Industry
Suitable : Medicine, Health products
Bottle Material : PET / PE / Glass / Metal
Bottle Type : Round / Square / Unique
Label Material : PVC/PET Shrink Label
Specifications:
| Operation direction | Left or right |
| Capacity | 20-100 bottle/min |
| Labeling speed | ≤40m/min |
| Labeling accuracy | ±1mm |
| The label type | Glassine backing paper, opaque label |
| The inner diameter of label plate | 76mm |
| The outer diameter of label plate | Max. 350mm |
| The size of label | Width 15-150mm length 15-300mm |
| Weight | 300kg |
| The power of motor | 1700W |
| Driving mode | Servo motor |
| Voltage | AC 220V 50/60Hz Single phase |
| The overall dimension of machine | 2900×1350×1500mm |
