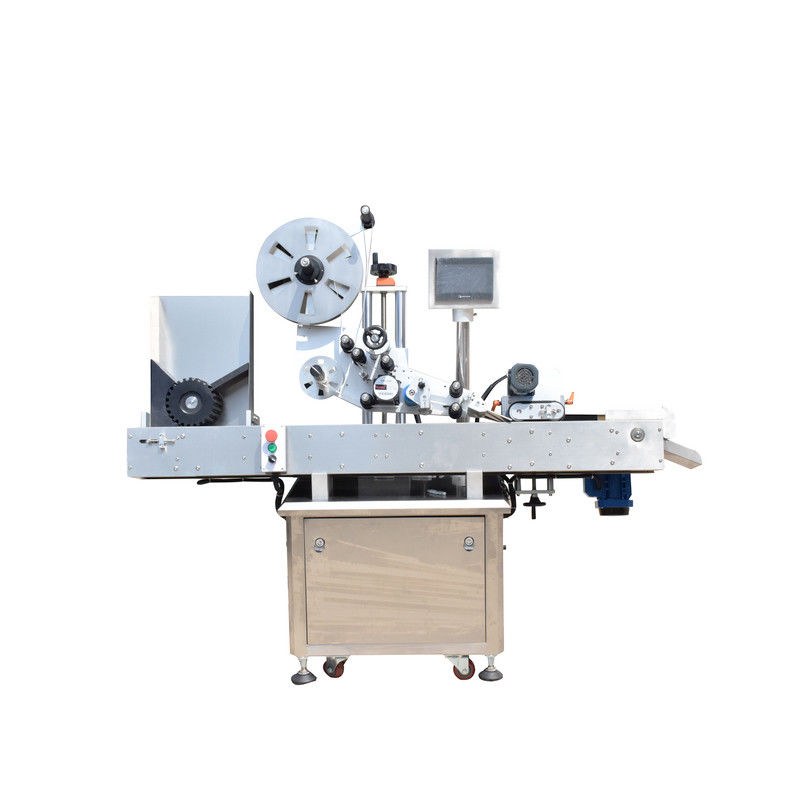

300kg Automatic Labelling Machine Round Bottle Ss304
  • 300kg Automatic Labelling Machine Round Bottle Ss304
  • 300kg Automatic Labelling Machine Round Bottle Ss304
  • 300kg Automatic Labelling Machine Round Bottle Ss304

300kg Automatic Labelling Machine Round Bottle Ss304

Place of Origin China
Brand Name LTPM China
Certification CE, GMP
Model Number MT
Product Details
Packing Speed:
Adhesive Labels Bottles Labeling Machine
High Light:

300kg Automatic Labelling Machine


ss304 Automatic Labelling Machine


ss304 Round Bottle Labeling Machine

Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Export standard wooden case
Delivery Time
Payment Terms
L/C, T/T
Supply Ability
Product Description

Brief Instruction

This automatic multifunctional labeling sticker machine is suitable for different shaps of bottles, such as round bottle, flat/square bottle, taper botlte, etc.

300kg Automatic Labelling Machine Round Bottle Ss304 0


The equipment is a fully automatic intelligent packaging line that integrates the functions of bottle feeding, bottle separation, sleeve labeling and shrink labeling. The real high speed, precise positioning, manpower reduction and perfect packaging are the spirit of this equipment design. In the beverage and health food factory, it has the function of being beautiful, easy to clean and maintain.

Synchronous transmission mechanism, one transmission belt drive six sets of synchronous delivery axis drive, any drive belt can be completed within three minutes, compared with the traditional multi-layer arm type (replacement and maintenance takes more than six hours), easy maintenance, easy maintenance






- Body is built with stainless steel, steel construction stable and not rust.

- The whole machine used quick release type of construction. In order to change and adjustment easier.

- Centralized lubricating system for simple and effortless on maintenance, lubrication and cleaness.

- With photo-sensors to detect label output and aotomatically self-regulated production speed.

- Used stable and reasonable of compiling program. It can be suitable for operation 24 hours.

- The bottle working mode is rotary input and output type.

- Equipped with the Torque limiter which prevent the torsion range abnormal situation and reduce accident.

- Roller coating, gluing balance and glue saving.

- Alarm system: Caution light & buzzer for out of label, label break and door open.

- Cut label system: Used multiple cure of cut system organization. (It is not quick-wear part.)

- The machine production speed is controlled by the machine input bottle signal. It is automatic transmission.

If input bottles too many, machine will increase speed.

If there is no input bottle, machine will change to low speed.

If output bottles too many, machine will change to low speed.

If output bottles are smooth, machine will increase speed.






Production 50-130bottle/min
Label Specifications Glassine paper, adhesive sticker opaque label
Labeling accuracy ±1mm (subject to the roughness of the plane)
The application of label Object customizing
The application of label Height 20-70mm Length 25-120mm
The inner diameter of label Roll 76mm
The outer diameter of label Roll 350mm
Driving mode Servo motor
Power of motor 500w
Voltage AC 220V 50/60Hz Single phase
Overall dimension 2200×1000×1800mm



After-sales service

1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly

2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.

3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

4.We provide one year warranty with spare parts free
