Double Side 200KGS Small Bottle Labeling Machine Semi Automatic
  • Double Side 200KGS Small Bottle Labeling Machine Semi Automatic
  • Double Side 200KGS Small Bottle Labeling Machine Semi Automatic

Double Side 200KGS Small Bottle Labeling Machine Semi Automatic

Place of Origin China
Brand Name LTPM China
Certification CE, GMP
Model Number MT-Series
Product Details
Voltage:
380/220V 50Hz
Capacity:
20-130 Carton/min
Bottle Diameter:
25-134mm
Type:
Labeling Machine
Condition:
New
Usage:
Adhesive Labels Bottles Labeling Machine,Beverage Drinks,Food,etc
Function:
Ahesive Sticker Labeling
High Light:

200KGS small bottle labeling machine

,

800W small bottle labeling machine

,

200KGS semi automatic label applicator machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Export standard wooden case
Delivery Time
25days
Payment Terms
L/C, T/T
Supply Ability
25sets/month
Product Description

One equipment performance overview

The automatic plane labeling machine is mainly composed of the main machine, label supply, label pull, transport, paper delivery, induction transmission and other mechanisms. The original technology of this equipment comes from Taiwan. After the company’s technical re-reference design, the original technology uses the overall working principle of the equipment more concisely. During the production process, the operation becomes simpler, the accuracy and stability become higher, and the application range of the equipment is changed. More expansive. This equipment can complete the work independently, or it can be connected to other production equipment to run. In addition to standard-applicable products, it can also be enlarged, widened and lengthened according to customer requirements. It can also be customized according to special-shaped products and fixed-point positioning of certain products.

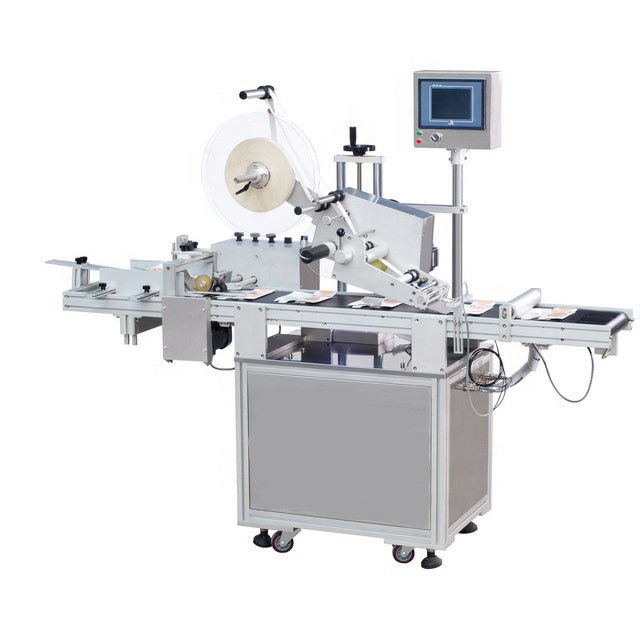

Double Side 200KGS Small Bottle Labeling Machine Semi Automatic 0

Three equipment working principle

The labeling of the automatic flat labeling machine is based on the principle of adhesion and compliance to complete the entire labeling action. When the product runs on the conveyor belt to the label peeling plate, the product detection photoelectric sensor is triggered to give a start signal, the traction motor runs, the label is peeled off the label backing paper, and the label is pasted on the product through the labeling delay set in the system Above, when the gap between the label and the label passes through the label detection sensor, the label detection sensor automatically gives a stop signal. At this time, one labeling cycle is completed, and the cycle goes back and forth to complete all labeling output.



Four check before starting

⑴ First, place the equipment on the overall level field, and hold the 4 leg cups tightly.

⑵ Check whether the power supply position inside the equipment is a 3-hole socket, whether it is well grounded, and whether the voltage is AC220V.

⑶ Check the inside of the electrical box of the equipment, whether the relay is loose during the transportation of the equipment, whether the optical fiber of the sensor is loose, and whether the screws of the photoelectric bracket are tightened.

⑷ Check whether the overall appearance of the equipment is bruised, whether there are any screws that have fallen loose during the shipment, and manually shake the main board back and forth to see if it shakes.



Five touch frequency button function and emergency stop switch and power switch

(1) Emergency stop switch and power switch

After the equipment is tested, plug in the power cord and press the button marked as the power switch on the switch box on the left side of the conveyor belt. At this time, the power indicator light in the middle of the switch box lights up and is green (blue). The touch screen lights up, and the exhaust fan on the side of the chassis is running. The emergency stop switch is used for emergency shutdown during equipment production.

(2) Keys on the touch screen interface of the host (Interface Figure 1)



Technical Parameters:

Model MT-130D
The standard system Step Motor
Capacity 20-130 carton/min
Operating Direction Left or right
Label speed ≤35 m/min
Tags volume inner diameter 76 mm
Tags volume outer diameter 350 mm (max)
Label Specifications Glassine backing Paper , opaque label (The application of carton Can be customized according to customer’s demand)
Labeling accuracy ±1.0mm (subject to the roughness of the plane)
Weight 200KGS
Total motor power 800W
Power supply AC220V 50/60HZ Single phase
Size appearance (mm) 2200 (L) 1800 (W) 1500(H)













Advantage

Double Side 200KGS Small Bottle Labeling Machine Semi Automatic 1





Products

Double Side 200KGS Small Bottle Labeling Machine Semi Automatic 2
