380V Automatic Labelling Machine Bottle 780mm 200 Pcs Min
  • 380V Automatic Labelling Machine Bottle 780mm 200 Pcs Min
  • 380V Automatic Labelling Machine Bottle 780mm 200 Pcs Min
  • 380V Automatic Labelling Machine Bottle 780mm 200 Pcs Min

380V Automatic Labelling Machine Bottle 780mm 200 Pcs Min

Place of Origin China
Brand Name LTPM China
Certification CE, GMP
Model Number SMT-Series
Product Details
Voltage:
220V/380V, 50/60Hz
Capacity:
20-200 Pcs/min
Applicable Dimensions:
30-120mm
Type:
Labeling Machine
Machine Size(LxWxH):
1270*800*780mm
Shipping Method:
Sea.Air And Express
Function:
Sticker Round Bottle Labeling Machine
Automatic Grade:
Automatic
High Light:

380V Automatic Labelling Machine

,

780mm Automatic Labelling Machine

,

380V bottle labeler machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Export standard wooden case
Delivery Time
25days
Payment Terms
L/C, T/T
Supply Ability
25sets/month
Product Description

Product Description

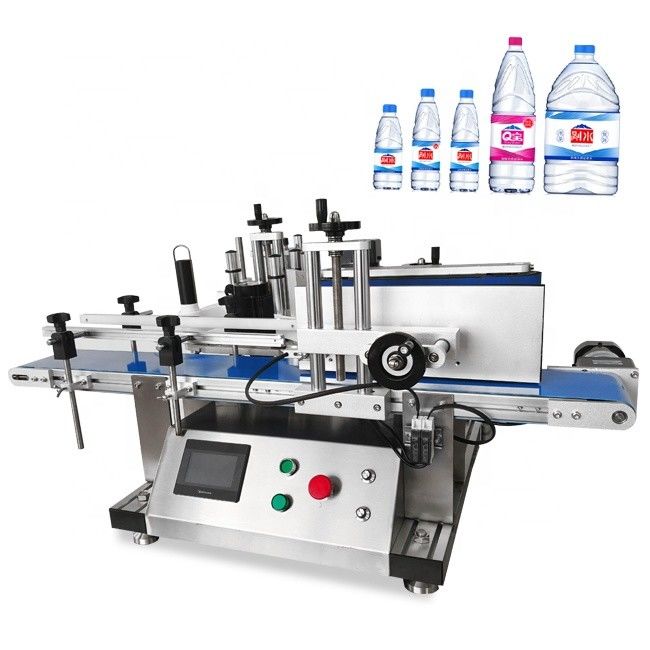

This round bottle labeling machine can be used for double side labeling.The desktop type labeling machine can save working space,but it can work automatically and accurately after you adjust and test working data.It is widely used to label round bottles like wine bottles,toner bottles,food cans etc.



Working principle

The sensor detects the passing bottles and send a sighal back to the control system .at the appropriate position ,the system controls the label to be sent out and attached to the suitable position .the product pass through the labeling device and the label is attached to bottles well.



Detail

1. Intelligent operation panel can help you control the machine easily.It can be set into English version,the working data like counting functions,delay time can be controlled by this panel.Beside two black rotary knobs can be used to control working speed.

2. The feeding inlet can be adjusted according to bottle diameter.This machine is suitable forφ≤100mm bottles.The working speed of

3. the conveyor can be adjusted as operators' need.This help to improve working efficiency.

4. The bottle will be detected by this sensor once they pass by the sensor.Reduce labeling error and ensure the labeling working efficiency.

5. With label sensor and adjusting components,these ensure the sensitivity and accuracy,prevent from missing or wasting label stickers,improve labeling quality.

6. These three labeling wheels make bottles rotating and then finish labeling,ensure that there is no bubbles under labels .Ensure

7. the labeling effect.This is suitable for double side labeling.The upgrade variable -speed motor makes the machine work stably and improve labeling speed,ensures the labeling accuracy at the same time.



Technical Parameters

Model
Fully automatic desktop round bottle labeling machine
Speed
20-200pcs/min
Diameter
30-120mm or customize
Height
15-200mm
Length
25-300mm
Accuracy
±1mm
Power
1500W
Voltage
220V/110V 50/60Hz
Weight
170kg



Application

380V Automatic Labelling Machine Bottle 780mm 200 Pcs Min 0

380V Automatic Labelling Machine Bottle 780mm 200 Pcs Min 1



Machine Details

380V Automatic Labelling Machine Bottle 780mm 200 Pcs Min 2



1>  ightweight & Humanized Design: Small enough to sit on a desk comparing to the normal automatic labelling machine which is giant and uneasy to move around.



2> Automatic Photoelectric Sensor: Smart controll for labelling and bottle decteting, it has automatic label calibration and detection to avoid any waste of labels.



3> Automatic Bottle Feeding: Seperates bottles automatically to improve stablity by eliminating the small size difference between each bottles.



4> Stainless Steel Body: Elegant appearance, non-deformation, high quality 304SS material that meets GMP standard, providing the best using experience.



5> Best Imported Component: Carefully picking the best component to build the machine, ensures high quality and long service life.



6> Automatic Batch Process: Easy to operate and maintian, lowering labor cost and improving efficiency.



7>  Multiple Functions: Automatic counting and stopping to save electricity, automatic save settings, etc.



8> Touch Screen Controll :Easy to controll and switch different settings, it features a user interface with guides.



9> High Labelling Stablity :Labelling is straight and flat, no bubbles or creases.
