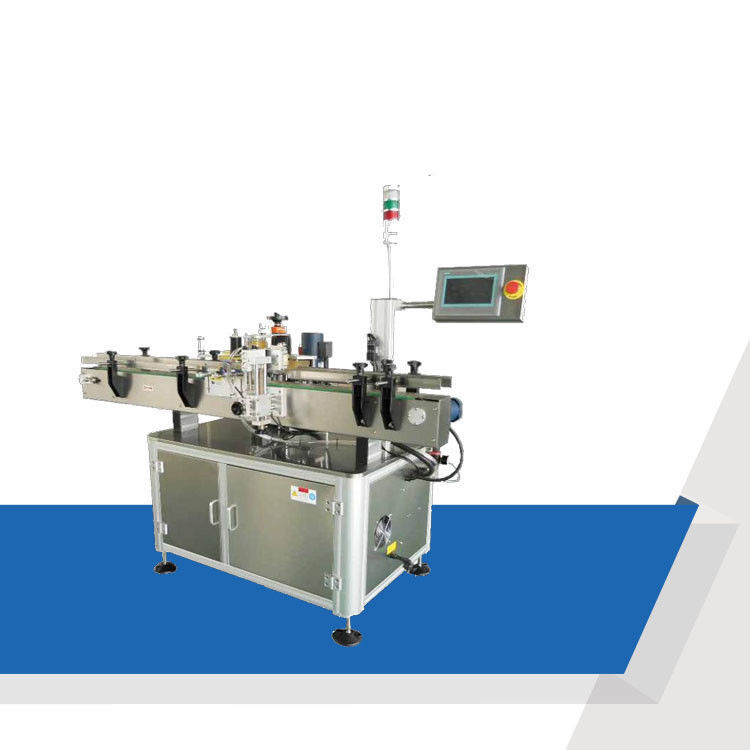

Automatic Labelling Machine
>
|
| Place of Origin | China |
| Brand Name | LTPM China |
| Certification | CE, GMP |
| Model Number | MT-Series |
Product Overview
It can be used to label all kinds of card pouch, anti-static bag and paper piece. It is suitable for unfolded carton labeling. The labeling precision is stable, the press roller is used to caress the workpiece, the transportation is stable, no warping, and the labeling precision is guaranteed.
Specification:
Adopting Germany SIEMENS PLC control
Adopting easy operation large touch screen
Adopting Germany label sensor
Adopting Japanese object sensor
All machines are made of SS#304 The machine can be equipped with coding machine (optional)
Features:
The machine is made in SUS304 stainless steel and high grade aluminum alloy.
Imported step motor or servo motor is used for the labeling head to assure labeling speed and accuracy.
The photo electricity and control system apply advanced component from Germany or Japan or Taiwan.
Use PLC man-machine interface control system, which is easy to understand.
Technical Parameters:
| Model | MT-130D |
| The standard system | Step Motor |
| Capacity | 20-130 carton/min |
| Operating Direction | Left or right |
| Label speed | ≤35 m/min |
| Tags volume inner diameter | 76 mm |
| Tags volume outer diameter | 350 mm (max) |
| Label Specifications | Glassine backing Paper , opaque label (The application of carton Can be customized according to customer’s demand) |
| Labeling accuracy | ±1.0mm (subject to the roughness of the plane) |
| Weight | 200KGS |
| Total motor power | 800W |
| Power supply | AC220V 50/60HZ Single phase |
| Size appearance (mm) | 2200 (L) 1800 (W) 1500(H) |
