SUS304 Automatic Labelling Machine 25mm Square Bottle Labeler
  • SUS304 Automatic Labelling Machine 25mm Square Bottle Labeler
  • SUS304 Automatic Labelling Machine 25mm Square Bottle Labeler
  • SUS304 Automatic Labelling Machine 25mm Square Bottle Labeler

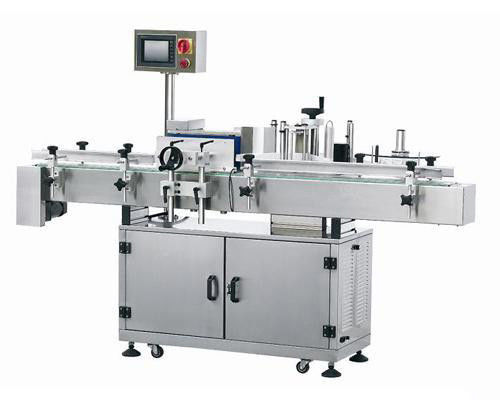

SUS304 Automatic Labelling Machine 25mm Square Bottle Labeler

Place of Origin China
Brand Name LTPM China
Certification CE, GMP
Model Number MT-Series
Product Details
Voltage:
220V/380V, 50/60Hz
Capacity:
20-130 Carton/min
Bottle Diameter:
25-134mm
Type:
Labeling Machine
Condition:
New
Usage:
Adhesive Labels Bottles Labeling Machine,Beverage Drinks,Food,etc
Labeling Accuracy:
±1mm
Warranty:
5 Years
High Light:

25mm Automatic Labelling Machine

,

SUS304 Automatic Labelling Machine

,

SS304 square bottle labeler

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Export standard wooden case
Delivery Time
25days
Payment Terms
L/C, T/T
Supply Ability
25sets/month
Product Description

Overview

This machine is suitable for labeling various plastic/glass/metal square bottles and flat surface with self-adhesive label.It's electric and pneumatic driven,high performance,can do more accurate positioning,widely used in cosmetic,beverage,food,medicine etc,it is an ideal label equipment which can improve the productivity effectively.



Product Features

  • 304 Stainless steel frame construction
  • Labeling speed is automatically synchronized with conveyor speed to ensure quality labeling;
  • Automatic infeed turntable diameter 550mm
  • Hot foil coding machine
  • Servo motor and PLC and Touch Screen assure prefect label exact
  • Automatically check the length of labels
  • Equipped with warning device of insufficient labels, broken labels
  • No bottle, no labeling
  • No labels , no labeling and automatic warning
  • No Ribbon, automatic warning
  • The bottle stand on the tray , and automatic lay down on conveyor for labeling
  • Servo motor control label , no label break , high speed.

Application

SUS304 Automatic Labelling Machine 25mm Square Bottle Labeler 0



Detail

  • Ribbon printer

It can be equipped with ribbon printer machine , which can printer production date and batch number on line reduce the pacaging process of bottle and improve production efficiency.

  • Application and the bag feeder

Type: pouch,bag,paper,card etc.

Material:plastic ,paper

Label:preprinted label or transparent label.

  • Machine material

Strong and durable, adopt three bar adjusting mechanism,make full use of the stability of triangle, the whole machine is solid and durable.it is made of full ss304 stainless steel ,which is in line with the requirements of GMP production.

  • Roller label

Label:sticker label ,adhesive film, electronic supervision code ,bar code and so on.

Product:a product that is required to attach a label or a film to a circumferential surface

Industry:widely used in food medicine,cosmetic ,daily,electronic, hardware ,plastic and other industries.

SUS304 Automatic Labelling Machine 25mm Square Bottle Labeler 1

Use

Achieve automatic sticking one adhesive label or adhesive film on round surface or small conical surface of the products.

Achieve automatic sticking 2 adhesive labels or adhesive films on double sides of round surface or small conical surface of the products.

Effect

High labeling efficiency, accuracy and quality and stability; Avoid many problems of labor labeling, skew labeling, bubble, wrinkle, irregular labeling etc; Lower product cost effectively and make the product more beautiful.



Technical Parameters:

Model MT-130D
The standard system Step Motor
Capacity 20-130 carton/min
Operating Direction Left or right
Label speed ≤35 m/min
Tags volume inner diameter 76 mm
Tags volume outer diameter 350 mm (max)
Label Specifications Glassine backing Paper , opaque label (The application of carton Can be customized according to customer’s demand)
Labeling accuracy ±1.0mm (subject to the roughness of the plane)
Weight 200KGS
Total motor power 800W
Power supply AC220V 50/60HZ Single phase
Size appearance (mm) 2200 (L) 1800 (W) 1500(H)
