Mitsubishi Bottle Sticker Labelling Machine Bopp 25mm
  • Mitsubishi Bottle Sticker Labelling Machine Bopp 25mm
  • Mitsubishi Bottle Sticker Labelling Machine Bopp 25mm

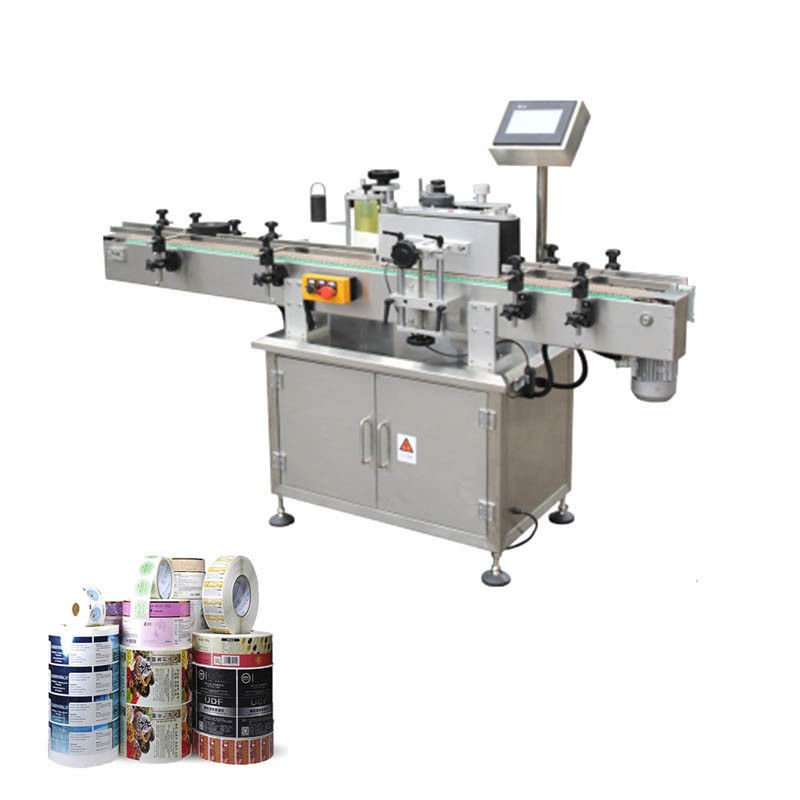

Mitsubishi Bottle Sticker Labelling Machine Bopp 25mm

Place of Origin China
Brand Name LTPM China
Certification CE, GMP
Model Number MT-Series
Product Details
Voltage:
220V/380V, 50/60Hz
Capacity:
20-130 Carton/min
Bottle Diameter:
25-134mm
Type:
Labeling Machine
Condition:
New
Usage:
Adhesive Labels Bottles Labeling Machine,Beverage Drinks,Food,etc
Driven Type:
Electric
Warranty:
5 Years
High Light:

25mm bottle sticker labelling machine

,

Mitsubishi bottle sticker labelling machine

,

25mm bopp labeling machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Export standard wooden case
Delivery Time
25days
Payment Terms
L/C, T/T
Supply Ability
25sets/month
Product Description



Product Description

The Automatic Ampoule/Vial Bottle Labeling Machine is fabricated under rigid supervision, keeping in view the strict GMP standards for use in Pharmaceutical and allied industries. Very strict quality control standards adopted during the manufacturing process ensure trouble free operation and need minimum maintenance / shutdown time. The High out put of the machine saving production cost and also saves valuable time. The Automatic Ampoule Labeling Machine has Variable AC Frequency Drive system for smooth control of

the machine for required out-put Upto 300 Ampoules per minute. The machines having online batch printing. The Super Silent Machine has minimum noise pollution and thus result in increased productivity amongst the work force. Inclined in-feed hopper ensures

uniform flow of objects for labeling.



Facility character:

1.Whole machine agreat quantity of stainless steel and good-quality ulminium alloy ,reasonable fracture,compact,convenient to adjust.

2.Shrinkage film volume label rack, match with adjustable device, convenient to adjust according to differ volume label 5″~10″paper tube.

3.Simply installation, then can convenient for square and round bottle.

No need of instrument, rotary mechanism is convenient to adjust, apply to differ bottle type.

4.Unique sleeve labelling method, adopt to pressing sleeve labelling method, not only convenient but also reasonable.

5.Auto controlling feeding system, level-off shrinkage film materials and regulate/adjust strain simultaneity.Unique design knife plate, within specification scope, can avoid changing knife base, knife changing is quick and conveniently.

6.mould changing is more quick, no need any instrument.Label location system, can promote and demote in-phase adjust location according to specific bottle type requirement.

7.Adopt to Japanese import servo system and high-sensitivity photoelectric, label cutting precision is highly.



Technical Parameters:

Model MT-130D
The standard system Step Motor
Capacity 20-130 carton/min
Operating Direction Left or right
Label speed ≤35 m/min
Tags volume inner diameter 76 mm
Tags volume outer diameter 350 mm (max)
Label Specifications Glassine backing Paper , opaque label (The application of carton Can be customized according to customer’s demand)
Labeling accuracy ±1.0mm (subject to the roughness of the plane)
Weight 200KGS
Total motor power 800W
Power supply AC220V 50/60HZ Single phase
Size appearance (mm) 2200 (L) 1800 (W) 1500(H)



Mitsubishi Bottle Sticker Labelling Machine Bopp 25mm 0



Mitsubishi Bottle Sticker Labelling Machine Bopp 25mm 1



1. Adopt mature PLC control system technology, make the whole machine stable and high-speed

2. Adopt touch screen control system, make operation simple, practical and efficient

3. Advanced pneumatic code system technology, make the printed letter clear, fast and stable

4. Wide application, adapted to various sizes of round bottles

5. Roll extrusion bottle, so the labels attached more solid

6. Production line is for optional , also turntable is optional for collecting, sorting and packaging



Mitsubishi Bottle Sticker Labelling Machine Bopp 25mm 2

Mitsubishi Bottle Sticker Labelling Machine Bopp 25mm 3
