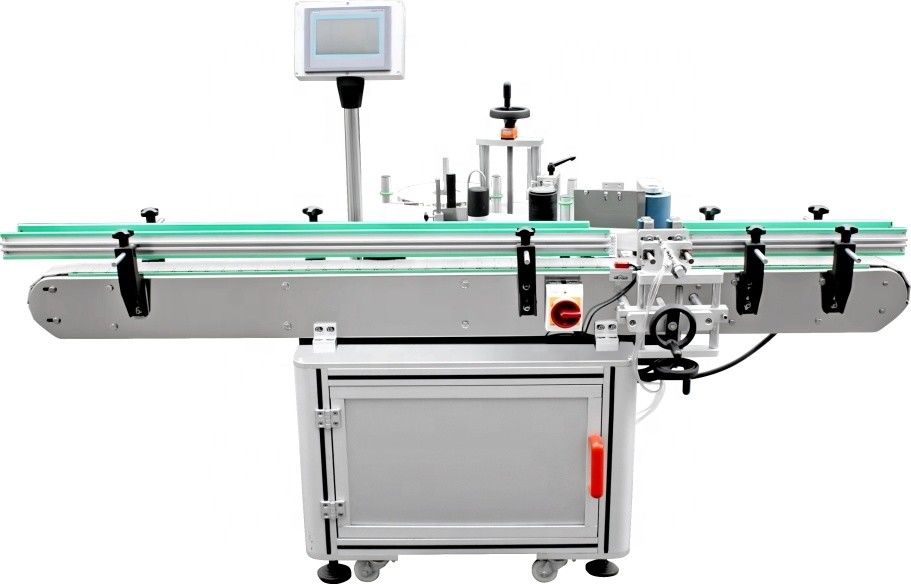

MT -200 Self Adhesive Sticker Labelling Machine For Round Bottle , High Speed
  • MT -200 Self Adhesive Sticker Labelling Machine For Round Bottle , High Speed
  • MT -200 Self Adhesive Sticker Labelling Machine For Round Bottle , High Speed

MT -200 Self Adhesive Sticker Labelling Machine For Round Bottle , High Speed

Place of Origin China
Brand Name LTPM China
Certification CE, GMP
Model Number MT-200
Product Details
Usage:
Round Bottle
Label:
Single Side Label
Capaciy:
200bottle/min
Power:
1.5Kw
Power Supply:
220V 50hz Single Phase (customized)
Bacth Number:
Ribon Coding Machine Is Available
Certification:
CE GMP ISO
Warranty:
5 Years
High Light:

bottle labeler machine

,

self adhesive labelling machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Export standard wooden case
Delivery Time
25days
Payment Terms
L/C, T/T
Supply Ability
25sets/month
Product Description

Summary:
MT-200 model vertical type round bottle non-dry tape marking machine, in order to achieve rationalization of production target and design. Labeling process automation, simple operation, the production speed is quick, labeling position, beautiful, neat, For pharmaceutical, chemical and foodstuff trades etc circular vessels labeling.

MT -200 Self Adhesive Sticker Labelling Machine For Round Bottle , High Speed 0

Main feature:

1.The equipment used in Taiwan original technology and design concept from Germany carried out

on the improvements made.

2.Device uses a large touch screen, easy operation, parameter display glance, truly interactive.

3.Japan Mitsubishi PLC control system, more stable performance.

4.Measuring objects using Omron photoelectric sensors, sensing objects higher sensitivity.

5.Omron Japan / Taiwan FOTEK label of photoelectric sensors, sensing a sensitive, easy to adjust.

6.Using German technology KINCO a standard motor, stable performance, high labeling accuracy

7.Using matching motor drive signal is never distorted

8.Using the French Schneider inverter speed, more stable performance

9.Large control box, the internal electrical heat easier, convenient detection, increase firmness.

10.High quality stainless steel and aluminum alloy.

11.Anodized aluminum surface sandblasted, higher strength, beautiful appearance.

12.Send standard buffer device, make sure that the job is not pulled off the label during

13.Closed end of paper patented design to ensure the collection of paper is not pulled off

14.Equipment motor coordination, running smooth and stable, durable, long service life.

15.Main electrical components are well-known products, parts by unified action solid resistance and connecting a computer numerical control machine tool precision machining, parts are well protected, prolonged use will not be any problems.



Working principle:

The machine can packing different objects into labeling machine belt conveyor, by driving a bottle into the bottle conveying institutions, continuous motion by depending on fiber detected after bottle, photoelectric signal transmission to PLC, by PLC output signal processing will lose to the stepping motor, the standard of stepping motor, through the rolling institutions will stick son, tag labeling of objects by labeling machine conveyor belt into the next procedure or containers.

Main machine running adopts stepping motor driver, sets of (Taiwan) PLC control system, sets of (Taiwan) touch screen, keyence fiber (Japan) device etc imported components, gathers numerous leading technology, make it become the industry has the advantage of technology products.

Microcomputer automatic control, interface screen friendly human-machine interface, ingenious mechanical structure, make the operation simple and powerful function, Can realize tag number, counting, set print control, labeling, lack of control, marking, colorless such abnormalities automatic detection and alarm functions, Random capacity and the quantity management label, Adjust tightness labels, The length and tags, Host height and adjust position before, Optional ribbon typewriter one, Labeling and tag with reaction degree detection.

The machine adopts high-quality T6 aluminum and stainless steel SUS304, well made, in conformity with the requirements of GMP.



Main Technical Data:

Driver: Stepping motor
Operation: Right or left
Poster speed: 0-200 PCS/min

Packaging Range:



20 - 100mm diameter

Height 25-350mm

Label size width 10-150mm length 15-200mm
Labeling precision + 1mm (depending on the bottle degree, perpendicular round)
Maximum diameter volume label: dia.300mm
Coil diameter: Dia. 75mm label
Weight: 200kg
Power supply: AC220V 0.5Kw 60HZ
Overall Size: 2000X1300X1500
Ribbon Coding machine: HP 260Q
