Sus304 Square Automatic Bottle Labeling Machine GMP
  • Sus304 Square Automatic Bottle Labeling Machine GMP
  • Sus304 Square Automatic Bottle Labeling Machine GMP

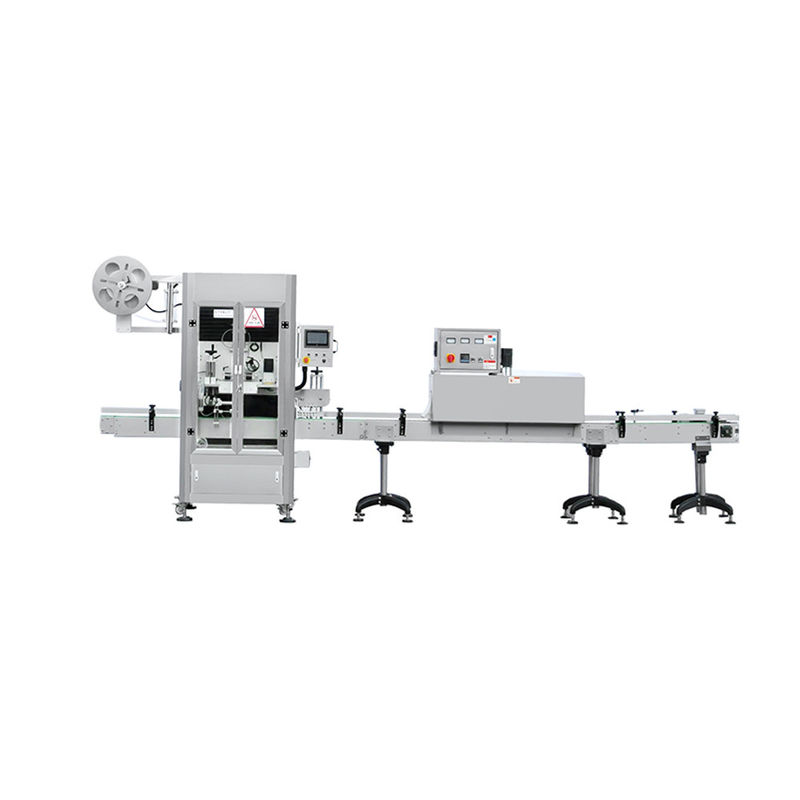

Sus304 Square Automatic Bottle Labeling Machine GMP

Place of Origin China
Brand Name LTPM China
Certification CE, GMP
Model Number MT
Product Details
Color:
Silver
Material:
Ss304
Packing Speed:
50-150bottles/min
Application:
APPAREL, Beverage, Chemical, Commodity, Food, Machinery
Packaging Material:
Wood
Driven Type:
Electric
Warranty:
5 Years
Height Of Bottle:
≤ DiameterX3 Mm
High Light:

Sus304 automatic bottle labeling machine

,

GMP automatic bottle labeling machine

,

Sus304 square bottle labeling machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Export standard wooden case
Delivery Time
25days
Payment Terms
L/C, T/T
Supply Ability
25sets/month
Product Description

It offers a full range of shrink sleeve label applicators for low, medium, and high-speed production environments. All of our shrink material applicators are capable of performing up to five key sleeving applications:

Full body sleeves, Full body over-the-cap sleeves, Partial body sleeves, Tamper evident bands, Multi-packs etc.



It also offers wide label format models capable of handling label widths up to 900mm. our shrink sleeve label applicators and machine systems are used in a wide variety of industries including fluid milk, craft beer, ready-to-drink beverages, cosmetics, home care products, and personal care products. Their flexibility and reliable performance make them one of the best values in the shrink sleeving industry.

Sus304 Square Automatic Bottle Labeling Machine GMP 0

Working pricinple



A sleeving machine shoots heat shrinkable plastic sleeves over bottles as they pass by on a conveyor. The sleeves are supplied as lay flats on reels, printed with label information. The fascinating part of a sleeving machine is how it opens the lay flat into a cylinder and then cuts the labels to the correct length at high speed.



Shrink labeling is a two-step process. First, a heat-shrinkable plastic sleeve is dropped over a bottle as it moves by on a conveyor. Second, the sleeved bottle is conveyed through a heat tunnel that shrinks the label to a snug wrinkle-free fit. A shrink tunnel must subject the bottle to the correct amount of heat for the right length of time. Shrink labeling systems can achieve speeds in the range of 300 bottles per minute depending on the sleeving machine model purchased.



Specifications:




Model HG-B
Machine size 5000L*1600W*2000H(mm)
Weight 2.5T
Speed of labeling 3000BPH-24000BPH
Power voltage AC 3-pin 380V / 50Hz
Rated power 9KW
Percent of pass ≥99.5
Accuracy of labeling ±1mm
Diameter of bottle 55-120mm
Material of bottle Glass , Metal , Plastic
Buttle shape Round
Label material OPP , BOPP , PAPER
Label thickness 0.035-0.13mm
Label height 40-300mm
Inside diameter of paper tube 6 inch
Power consumption of air source 0.5Mpa
Operation Full Automatically



Detail

(1) It Sleeve Labeling Machine is custom built to meet the exacting demands of manufacturers and suppliers. It can be used stand alone or integrated in-line and matching filling equipment speeds.



(2) It is built upon a framework of seam welded, food grade stainless steel section. This solid foundation keeps movement and vibration to an absolute minimum to ensure consistent, accurate labeling.



(3) Unit cutter head plane design in China which apply to the container of ∮30 mm—∮130 mm. you never need to change or debug it.It also has unique light touch human-machine screen,that means,auto search original location as well as safety and convenience which is ahead of other congener products.



(4) Double shrinking label feed plane, reasonable height which is convenience to fix the label; micro-computer auto figure which avoid enactment and adjustment. you only need to press it lightly ,the label will detect and locate automatically.The change of label is quick and convenience, besides,the cut place is absolutely exact.
