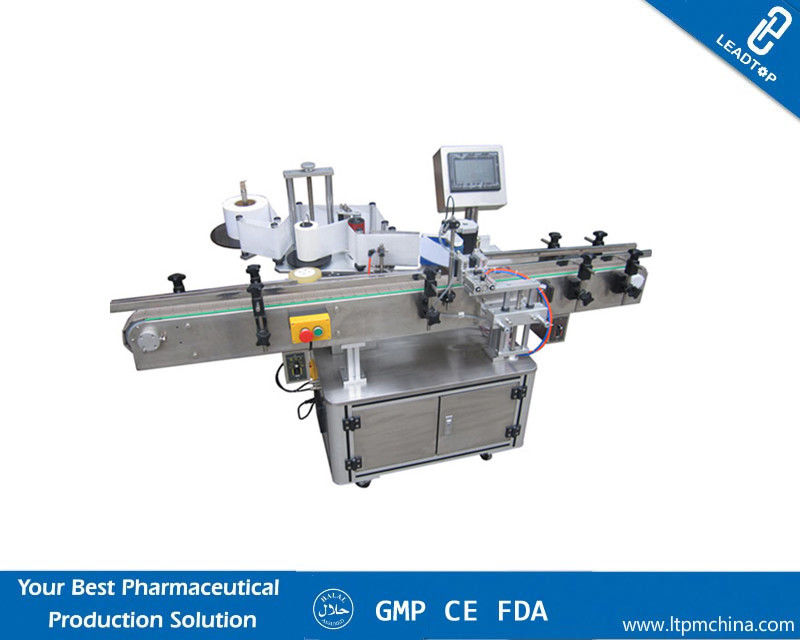

Ss304 Silver Automatic Labelling Machine Flat Bottle 2200mm
  • Ss304 Silver Automatic Labelling Machine Flat Bottle 2200mm
  • Ss304 Silver Automatic Labelling Machine Flat Bottle 2200mm

Ss304 Silver Automatic Labelling Machine Flat Bottle 2200mm

Place of Origin China
Brand Name LTPM China
Certification CE, GMP
Model Number MT
Product Details
Color:
Silver
Material:
Ss304
Weight:
300kg
Dimension:
2200*1200*1800mm
Packing Speed:
50-150bottles/min
Warranty:
5 Years
Service:
24/7 Technical Support
Usage:
Adhesive Labels Bottles
High Light:

2200mm Automatic Labelling Machine

,

ss304 silver Automatic Labelling Machine

,

ss304 flat bottle labelling machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Export standard wooden case
Delivery Time
25days
Payment Terms
L/C, T/T
Supply Ability
25sets/month
Product Description


Can fit for ampoules of pharmaceutical industry, schering bottles, oral liquid, blood vessels; Stationery such as pen, paste pen; In daily chemical industry such as lipstick, lip balm etc small cylindrical material for the wrap aroundor part of wrap of the automatic labeling requirements

Product Characteristics:


  • 1.Bottles of bottles broken rate is low, application of flexible points technology and flexible by standard technology, bottle labeling smoothly
  •
  • 2.Intelligent control, automatic photoelectric tracking, have any label, no standard automatic correction and label automatic detection function, prevent leakage and labels to waste
  •
  • 3.High stability, PLC+ouch screen + needle advanced electronic control system of electric eye, 7 x 24 hour support equipment operation
  •
  • 4.Main material is made of stainless steel equipment and advanced aluminum alloy manufacturing, comply with GMP requirement

Detail

Labeling System
1.Unique sleeve labeling method, using pressure sleeve labeling method.
2.The unique knife disc design can avoid changing the knife holder and change the knife quickly and easily.
3.Middle guide rod clamping system, fast mold changing speed, no need of any instrument.

Servo Motor
1.Servo motor can control the speed, position accuracy is very accurate, can convert the voltage signal into torque and speed to drive the control object.
2.The rotor speed of servo motor is controlled by the input signal and can respond quickly.
3. It is used as an actuator in the automatic control system, and it has the characteristics of small electromechanical time constant, high linearity and starting voltage, etc.

Ss304 Silver Automatic Labelling Machine Flat Bottle 2200mm 0Ss304 Silver Automatic Labelling Machine Flat Bottle 2200mm 1
Specifications:



Production50-130bottle/min
Label SpecificationsGlassine paper, adhesive sticker opaque label
Labeling accuracy±1mm (subject to the roughness of the plane)
The application of labelObject customizing
The application of labelHeight 20-70mm Length 25-120mm
The inner diameter of labelRoll 76mm
The outer diameter of labelRoll 350mm
Driving modeServo motor
Power of motor500w
VoltageAC 220V 50/60Hz Single phase
Overall dimension2200×1000×1800mm





The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our factory,and see the machine running.
3.If we get the permission of the customers who have bought the machines from us,we can provide you their contact information and you can go and visit.
Customized service
1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our
professional suggestion,as you know,we have been in this industry for many years.
2. We can offer free technical support and consultation such as design your factory,draw the factory layout and so on.
After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
4.We provide one year warranty with spare parts free
