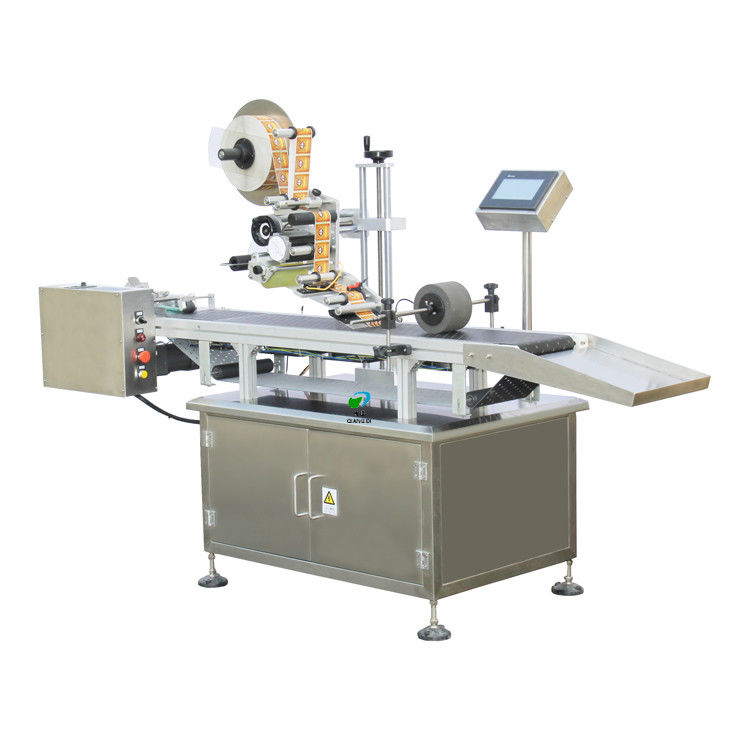

Automatic Small Opp Square Bottle Labeler Machine 70mm
  • Automatic Small Opp Square Bottle Labeler Machine 70mm
  • Automatic Small Opp Square Bottle Labeler Machine 70mm

Automatic Small Opp Square Bottle Labeler Machine 70mm

Place of Origin China
Brand Name LTPM China
Certification CE, GMP
Model Number MT
Product Details
Food, Beverage, Commodity, MEDICAL, Chemical
Height 20-70mm Length 25-120mm
Packaging Material:
Plastic, Metal, Glass
Driven Type:
5 Years
Double Side Labeling
Label Size:
High Light:

70mm bottle labeler machine


Opp bottle labeler machine


Opp square bottle label applicator

Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Export standard wooden case
Delivery Time
Payment Terms
L/C, T/T
Supply Ability
Product Description

Product Description


This shrink sleeve labelling machine can used for bottle neck&body in the same time.

  • Applicable Bottle Types:

Various kind of bottle types, for example : round bottle, square bottle, flat bottle, curved bottle and cup-shaped, etc.

  • Electrical Appliance Configuration Specification

It adopts PLC programmable controller, imported servo motor, servo driver, frequency converter and transducer,besides, it adopts the positioning module to ensure casting label precise, rapid and stable

Automatic Small Opp Square Bottle Labeler Machine 70mm 0



1.This machine is used for using the Taiwan touching type of PLC control or knob control.

It is made up of photoelectricity equipment of Japan OMRON. Synchronization electrical,timing electrical, conveyer belt. Import strap etc correlative part.

2.The design of mainframe part absorbed label transmit of import machine and solved the unsteady ingredient of homemade common label.

3.The machine is suitable for various specifications of bottles. Its operation is easy and it can be finished in a short time.

4.The quick printer adopts the motor drive, gas drive. The words in the ribbon are clear and clean.

5.The whole machine is designed to meet GMP standard.

6.This machine is suitable for processing the big round label of medicine, chemical, food, commodity etc.

Automatic Small Opp Square Bottle Labeler Machine 70mm 1





Production 50-130bottle/min
Label Specifications Glassine paper, adhesive sticker opaque label
Labeling accuracy ±1mm (subject to the roughness of the plane)
The application of label Object customizing
The application of label Height 20-70mm Length 25-120mm
The inner diameter of label Roll 76mm
The outer diameter of label Roll 350mm
Driving mode Servo motor
Power of motor 500w
Voltage AC 220V 50/60Hz Single phase
Overall dimension 2200×1000×1800mm




* Super large touch screen, easy to operate;

* Imported Microcomputer control system;

* Servo motor is adopted, and the labeling precision is enhanced when the speed is increased. The machine performance is more stable;

* More than 100 groups of labeling parameter memories can realize fast sample changing;

* The whole machine is made of high class stainless steel and aluminum alloy using anodizing treatment, it will never rust, which conforms to GMP requirements.
