Desktop 5mm Semi Automatic Labelling Machine Sticker 25kg
  • Desktop 5mm Semi Automatic Labelling Machine Sticker 25kg
  • Desktop 5mm Semi Automatic Labelling Machine Sticker 25kg
  • Desktop 5mm Semi Automatic Labelling Machine Sticker 25kg

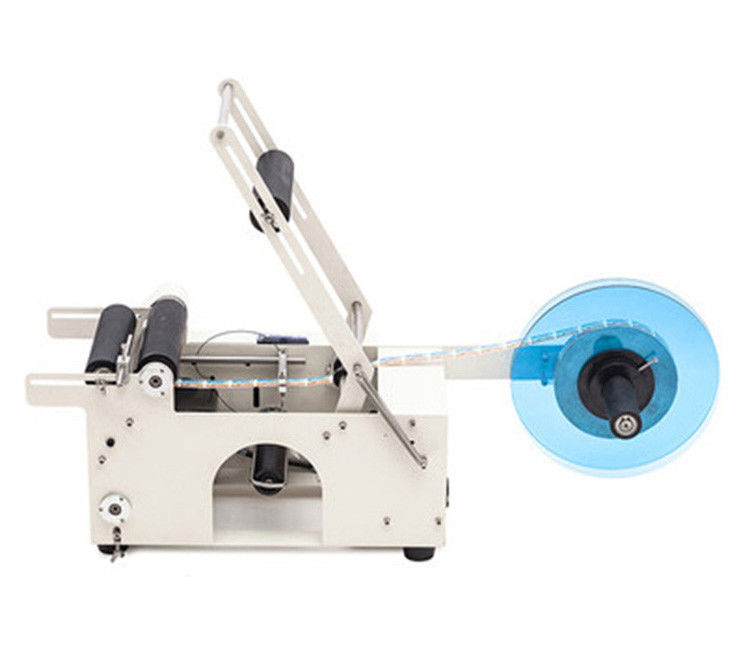

Desktop 5mm Semi Automatic Labelling Machine Sticker 25kg

Place of Origin China
Brand Name LTPM China
Certification CE, GMP
Model Number MT
Product Details
Material:
Stainless Steel
Labeling Speed:
20-40 Pcs/min
Labeling Precision:
±5mm
Size Of Machine:
550×450×450mm
Bottle Size:
15≤≤diameter≤150mm
Bottle Shape:
Round
Warranty:
5 Years
Core Components:
PLC, Motor, Engine
High Light:

5mm Automatic Labelling Machine

,

25kg Automatic Labelling Machine

,

25kg semi automatic sticker labeling machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Export standard wooden case
Delivery Time
25days
Payment Terms
L/C, T/T
Supply Ability
25sets/month
Product Description

Product description:
1. Small structure takes up less space and easy to move and load.

2. Good labeling precision and stability; Neat, no wrinkle, no bubble.

3. It has powerful function. It can achieve circumferential position labeling and non-position labeling easily.

4. It satisfy the circumferential position labeling and non-position labeling on diameter between 20-120mm bottles.

5. It is easy to use and adjust. The new workers can use or adjust it easily after simple training.

6. Conveyer parts are completely covered to avoid the abnormal conditions which make the use safer.

7. The clever design which allow user to mechanically adjust some structure combination and label winding, makes it easy to adjust the labeling position freely. All these make it easy to change products and wind labels.

8. Has 2 control methods: automatic and semi-automatic. Workers can choose either sensor control or feet step control for labeling according to reality.

9. Whole equipment is mainly made of stainless steel and high level aluminum alloy. The whole structure is strong and harmonious.

10. Has fault stop function, production counting function.

Desktop 5mm Semi Automatic Labelling Machine Sticker 25kg 0

This machine is mainly characteristic:

1. CE Certification.

2. A wide range of application.

3. Labeling accuracy is high, the tag end to end local deviation ≤ ± 0.5mm

4. Clever extrusion device material, simply put the workpiece, and auto-complete labeling

5. Card position adjustment, simple the different workpiece labeling switch

6. Timing belt traction, greatly improving the mechanical stability

7. Desktop design, lean, compact, powerful

8. After anodized aluminum bracket and advanced computer white electric box, nice

9.  Advanced electric eye, objects, high tag detection sensitivity.

Desktop 5mm Semi Automatic Labelling Machine Sticker 25kg 1



Specifications:





Labeling precision

±0.5mm (exclude the product and label deviation)

Labeling speed

20~40 pcs/minute (related to product size)

Product size applicable

15≤≤diameter≤150mm

Label size applicable

20≤width≤180mm,10mm≤length

Size of whole machine

550×450×450mm (length×width×height)

Power supply

220V 50/60HZ

Weight

25kg



Parameter:

1. Wide application, can meet the 10-100mm diameter range cylinder labeling.

2. High precision end labeling, label place deviation less than 0.5mm.

3. the use of clever extrusion device feeding, just put items, pull the handle to complete labeling.

4. The body is made of stainless steel, with long service life.

5. Using synchronous belt traction, mechanical stability greatly improved.

6. Desktop design, Stainless steel body, compact appearance, powerful.

7. Using the advanced electric eye detection sensitivity, object, label.

8. This machine complies with CE certification
