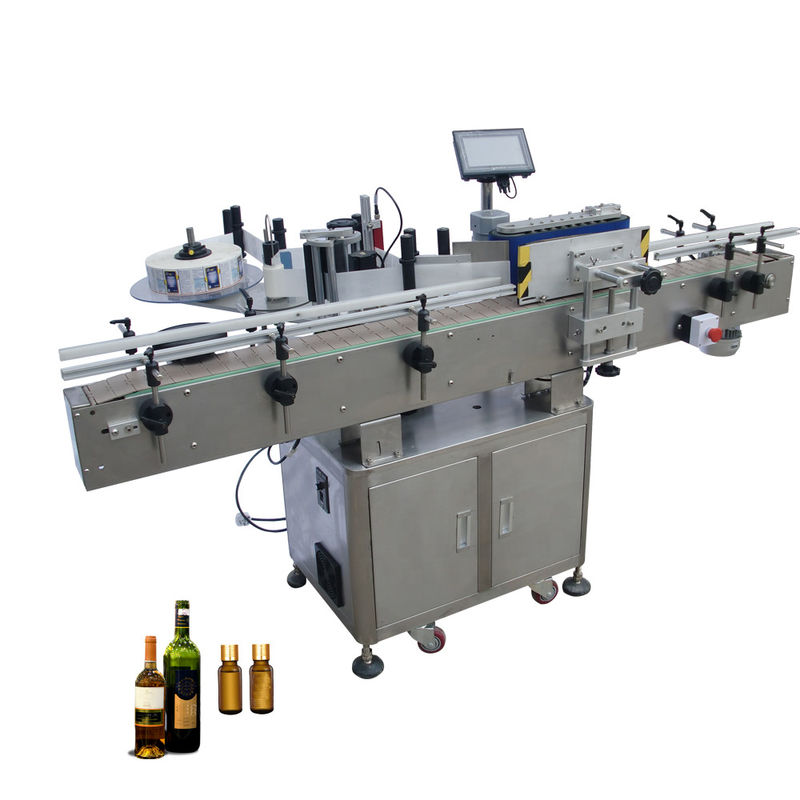

Automatic flat /round/ Square bottle adhesive sticker double side labeling machine
  • Automatic flat /round/ Square bottle adhesive sticker double side labeling machine
  • Automatic flat /round/ Square bottle adhesive sticker double side labeling machine

Automatic flat /round/ Square bottle adhesive sticker double side labeling machine

Place of Origin China
Brand Name LTPM China
Certification CE, GMP
Model Number MT
Product Details
Driving Mode:
Servo Motor
Production:
30-150 Bottle/min
Labeling Speed:
≤40 M/min
Application:
Food, Beverage, MEDICAL, Chemical
Driven Type:
Electric
Certification:
CE,ISO9001
Material:
SUS304
Usage:
Adhesive Labels Bottles
High Light:

bottle labeler machine

,

automatic round bottle labeling machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Export standard wooden case
Delivery Time
25days
Payment Terms
L/C, T/T
Supply Ability
25sets/month
Product Description

introduction

Our shrink sleeve labeling machines series use the newest shrink technology with large control touch screen.The humanize operation, the mainframe can be easy adjusted up and down with automatically.The labelingmachine has been accurately designed, even use this machine with high speed for a long time, machine runningis still very stable and smoothly.We have many models with all kind of speed selection and is suitable for wide range, it can be modifed according to the package’s shape. We can always meet your all kind of requirement no matter it is for cap orbottle.The machine is suitable for pharmaceutical, food industries, health-food, medicine, juice, milk, drink.We are looking forward to hear from you.

Automatic flat /round/ Square bottle adhesive sticker double side labeling machine 0

Application

The machine we can do customizable sleeve labeling for bottle, cap , cup and so on.

The machine is suitable for pharmaceutical,food industries,health-food ,medicine,juice,milk, drink,etc.



Remark:

1. Transparent plastic label need match special transparency sensor

2. Need date code shall match printer

Automatic flat /round/ Square bottle adhesive sticker double side labeling machine 1

Main Configuration:

1.Frame: SUS + aluminum alloy

2. PLC + 7 inch touch screen: Siemens

3. Photo electronic sensor: German LEUZ

4. Relay and air switch: French Schneider

5. Converter: French Schneider

6. Conveyor motor: 750W China brand AC motor

7. Labeling driving motor: 750W French Schneider servo motor

8. Bottle dividing motor: 40W China brand AC motor

9. Bottle turning motor: 90W China brand AC motor

10. Exposed parts: SUS, aluminum alloy, 45 # steel, plastic



Detail

Automatic sleeve labeling machine id custom built to meet the exacting demands of manufacturers and suppliers.it can be used stand alone orintegrated in-line and matching filling quipment speeds.

The newly designed cutter stepper motor which speed ishigh,action is exact,the cut is in order and the shrinking is beautiful. This design cooperate with the label synchronized lacation structure enable the precisiion of cut location within 1mm.

Unit cutter head plane design in china which apply to the container of 30mm-130mm. You never need to change or debug it .it also has unique light touch human-machine screen ,that means ,auto search original location as well as safety and convenience which is ahead of other congener products.

Double shrinking label feedplane ,reasonable height which is convienence to labeling .micro-computer auto figure which avoid enactment and adjustment . you only need to pressit lightly ,the label will detect and locate automatically.the change of label is quick and convenience ,besides , the cut place is absolutely exact.

Automatic flat /round/ Square bottle adhesive sticker double side labeling machine 2

Automatic flat /round/ Square bottle adhesive sticker double side labeling machine 3

Specifications:





Driving Mode Servo motor
Production 30-150 bottle/min
Labeling Speed ≤40 m/min
Operating direction Left or Right
Labeling Accuracy ±1.0 mm (subject to the roughness of the plane)
Label Specifications Glassine Paper, opaque label
The application of bottle Outer diameter 40-100mm; Height 35-180mm
The application of label Height 20-140mm; Length 23-280mm
The inner diameter of label Min. volume 76mm
The outer diameter of label volume 350mm (max.)
The power of motor 550W
Voltage AC220V 50/60HZ Single phase(Can customized according to Client country’s voltage)
Weight 170 kg
Size appearance 1800×700×1270mm
