Automatic Labeller Round Bottle Labeling Machine for Flat, Square, Round Bottle /jar
  • Automatic Labeller Round Bottle Labeling Machine for Flat, Square, Round Bottle /jar
  • Automatic Labeller Round Bottle Labeling Machine for Flat, Square, Round Bottle /jar
  • Automatic Labeller Round Bottle Labeling Machine for Flat, Square, Round Bottle /jar

Automatic Labeller Round Bottle Labeling Machine for Flat, Square, Round Bottle /jar

Place of Origin China
Brand Name LTPM China
Certification CE, GMP
Model Number MT
Product Details
Labeling Speed:
≤40m/min
The Application Of Label:
Width 20-70mm Length 25-80mm
The Application Of Bottle:
Outer Diameter 10-24mm Height 25-95mm
Automatic Grade:
Automatic
Condition:
New
Packaging Type:
Bottles
Application:
Food, Beverage, MEDICAL, Chemical
Core Components:
PLC
High Light:

bottle labeler machine

,

self adhesive labelling machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Export standard wooden case
Delivery Time
25days
Payment Terms
L/C, T/T
Supply Ability
25sets/month
Product Description

Generally Description:

This in-line hot melt glue labeler provides stable labeling performance. Speed up to 6000 - 7000 bottles per hour, and easy change parts for variety of specifications. Suitable for OPP labels, on PET, HDPE round bottles. No glue jam as other spray system, the machine use easier glue-trans system and label cutting device, which makes the machine working stable and with good price.

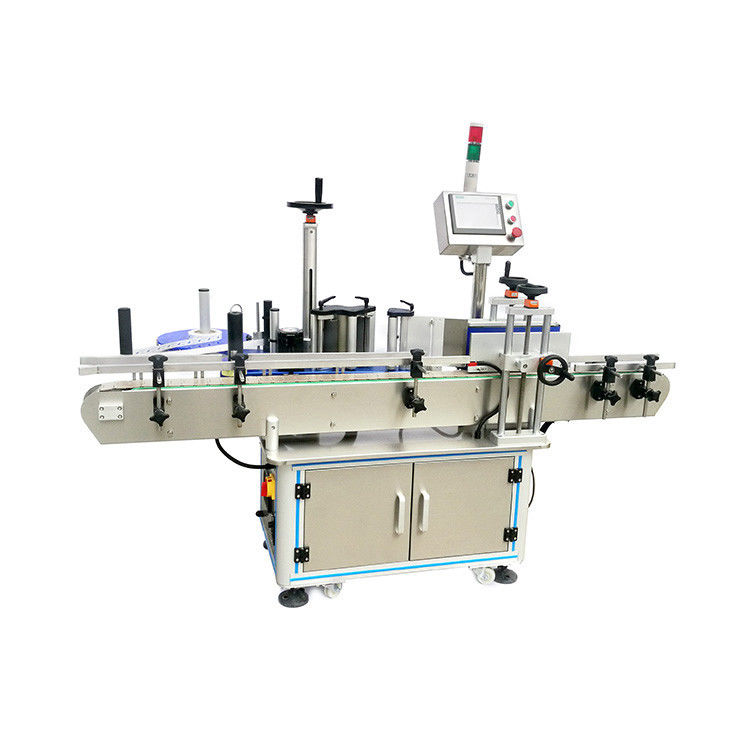

Automatic Labeller Round Bottle Labeling Machine for Flat, Square, Round Bottle /jar 0

Features:

Cost saving and environment protection

Servo system with high precision

Vacuum system without friction and static

Bottle feed-in smoothly by conveyor

Easy to operate with HMI friendly

Labeling system adopt wheeling design

Automatic pushing bottle system is convenient for bottle feed in-out

Labeling speed up to 100 BPM

Sensor checking system for bottle without labeling(Optional)



Structure and performance specification:

◆ Wide application range, apply for Flat/Oval/Square/Rectangular/Round bottles, 2 sides labeling or just 1 side labeling,easy to switch labeling between bottles, easy to adjust;

◆ Good quality of labeling,smooth labeling without puckering;

◆ Excellent labeling quality, adopting elastic pressure-coated belt, flat labeling, no wrinkles, and improve packaging quality;

◆ Flexible application, bottle standing labeling, automatic bottle splitting function, can be produced in a single machine, or can be connected to the production line;

◆ Intelligent control, automatic photoelectric tracking, with no material and no labeling, no automatic calibration and automatic label detection to prevent leakage and label waste;

◆ High stability, Panasonic PLC + Panasonic touch screen + Panasonic needle-shaped electric eye + German labor test label electric eye composed of advanced electronic control system, support equipment 7 × 24 hours of operation;

◆ Simple adjustment, labeling speed, conveying speed and bottle dividing speed can realize stepless speed regulation and adjust according to need;

◆ Rugged and durable, adopting three-bar adjustment mechanism to make full use of the stability of the triangle, the whole machine is solid and durable. Made of stainless steel and high-grade aluminum alloy, in line with GMP



Specifications:

Production 300-600 bottles/min
Labeling speed ≤40m/min
Labeling accuracy ±1mm
The application specification of label graze paper Opaque label
The application of bottle Outer diameter 10-24mm Height 25-95mm
The application of label Width 20-70mm Length 25-80mm
The inner diameter of label volume 76mm
The outer diameter of label volume Max. 350mm
Driving mode Servo motor
The power of motor 1000w
Size appearance 2780×1270×1500mm
Weight 300kg
Voltage AC 220V 50/60Hz Single phase (according to the voltage in client country)
Labeling methods The bottle is stand into, stand paste, stand out





Automatic Labeller Round Bottle Labeling Machine for Flat, Square, Round Bottle /jar 1

Detail



Automatic Labeller Round Bottle Labeling Machine for Flat, Square, Round Bottle /jar 2

Automatic Labeller Round Bottle Labeling Machine for Flat, Square, Round Bottle /jar 3
