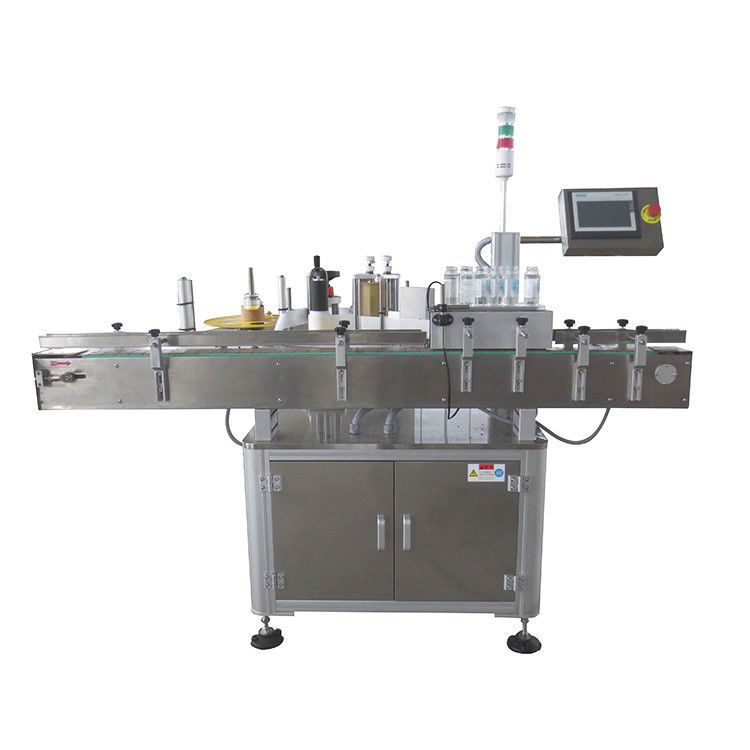

Round Glass Jar Cans Wine Bottle Sticker Automatic Essential Oil Bottle Labeling Machine
  • Round Glass Jar Cans Wine Bottle Sticker Automatic Essential Oil Bottle Labeling Machine
  • Round Glass Jar Cans Wine Bottle Sticker Automatic Essential Oil Bottle Labeling Machine
  • Round Glass Jar Cans Wine Bottle Sticker Automatic Essential Oil Bottle Labeling Machine

Round Glass Jar Cans Wine Bottle Sticker Automatic Essential Oil Bottle Labeling Machine

Place of Origin China
Brand Name LTPM China
Certification CE, GMP
Model Number MT
Product Details
Labeling Speed:
≤40m/min
Labeling Accuracy:
±1mm
The Power Of Motor:
1000W
Warranty:
5 Years
Machinery Capacity:
21m/min
Packaging Type:
Bottles
Condition:
New
Core Components:
PLC
High Light:

bottle labeler machine

,

self adhesive labelling machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Export standard wooden case
Delivery Time
25days
Payment Terms
L/C, T/T
Supply Ability
25sets/month
Product Description

Quick Detail:

Labeling accuracy: ±1mm
Material: Stainless steel 304
Certificate: CE Certificate
Model No.: MT-80
Driving mode: Servo motor
Running speed:: 10-80 bottle/min
Weight:200kg
Overall Size: 1800×1000×1500mm

Description:

1. Using touch-screen control operating system, simple and efficient;
2. Adopt mature technology PLC control system, operation is stable and high-speed
3. Upgraded disc label station design, also suit for conical and flask bucket;
4. Screw adjustment suppressing mechanism suppress bucket move accurately;
5. Synchronization chain mechanism ensure labeling smooth and precise calibration;
6. Advanced technology of pneumatic code system, print the batch number and expiry date clearly;
7. Transmission-type roll label device, make sure the label attached more firmly;
8. Imported electric elements, stable performance, low failure rate;
9. Adopting photoelectric detection, PLC control, software operation, conveyor belt, labeling accurately and high precision;
10. Can be operated alone or connect with the production line;
11. No objects no labeling, automatic alarm when achieve leakage label.
12. The whole machine use the material of S304 stainless steel and anodized senior aluminum alloy, with high corrosion resistance and never rust.


Applications:


MT-80 model Fix-point position single label sticker labeling machine, in order to achieve rationalization of production target and design. The machine comes with automatic labeling process, simple operation, high speed running, accurate labeling position, beautiful labeling. The machine can be used for pharmaceutical, chemical and foodstuff Industry labeling.


Specifications:

Operation direction Left or right
Capacity 10-80 bottle/min
Labeling speed ≤40m/min
Labeling accuracy ±1mm
The application specification of label graze Opaque label
The inner diameter of label volume 76mm
The outer diameter of label volume Max. 350mm
Suitable bottle range external diameter Within 90mm
Suitable label range length Within 300mm
The power of motor 1000W
Driving mode Servo motor
Voltage AC 220V 50/60Hz Single phase
The overall dimension of machine 1800×1000×1500mm



Competitive Advantage:


1. We have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho


Our Work Shop:


Round Glass Jar Cans Wine Bottle Sticker Automatic Essential Oil Bottle Labeling Machine 0


Station:


Round Glass Jar Cans Wine Bottle Sticker Automatic Essential Oil Bottle Labeling Machine 1
