70mm Self Adhesive Labelling Machine AC 220V Semi Automatic Labeling Machine
  • 70mm Self Adhesive Labelling Machine AC 220V Semi Automatic Labeling Machine
  • 70mm Self Adhesive Labelling Machine AC 220V Semi Automatic Labeling Machine

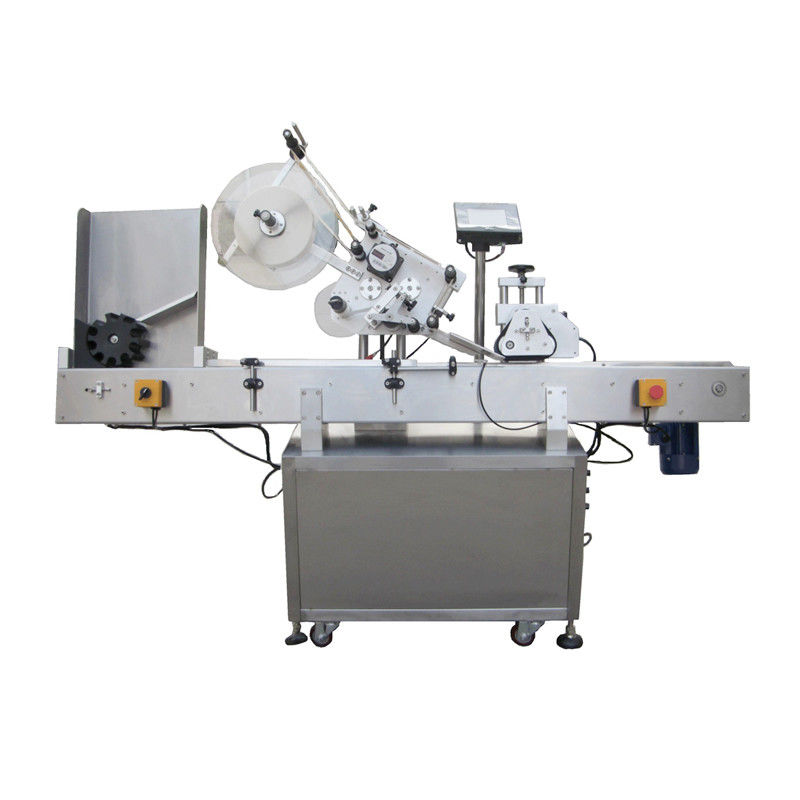

70mm Self Adhesive Labelling Machine AC 220V Semi Automatic Labeling Machine

Place of Origin China
Brand Name LTPM China
Certification CE, GMP
Model Number MT
Product Details
Application:
APPAREL, Beverage, Chemical, Commodity, Food, Machinery
Packaging Material:
Wood
Warranty:
5 Years
Machinery Capacity:
20-40 Pcs/min
Length Of Label:
15-300mm
Inner Coil Diameter:
≤ 76mm
Material:
SUS 304 Stainless Steel
Condition:
New
High Light:

70mm self adhesive labelling machine

,

AC 220V self adhesive labelling machine

,

AC 220V semi automatic labeling machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Export standard wooden case
Delivery Time
25days
Payment Terms
L/C, T/T
Supply Ability
25sets/month
Product Description

Product Description

This type of machine is suitable for glass bottles, plastic bottles and some other cylindrical articles. Subuliform objects could be customized, and the code printer is optional. Its design is delicate, well appearance, and could be used independently or with manufacture lines.

Product Feature

  • Adjusting part :

Adjusting part can adjust the label height which can suitable for bottle height.

  • Labeling separating area :

Labeling separating area is clear and you can adjust the labeling height.

  • Conveyor belt :

Conveyor belt : The conveyor belt is made of plastic, can be adjustable, work stable.

70mm Self Adhesive Labelling Machine AC 220V Semi Automatic Labeling Machine 0



Detail

1.Our PLC Touch screen control panel makes it more convenient to adjust parameter.It can fill liquid and viscosity by entering certain filling range,and the visual working data helps you fill liquid and viscosity more accurately.

2.Our famous brand label lendth sensor is designed to detect labels,prevent from missing or wasting tables.It will not labeling if no bottle passes through, reduce labeling error

3.This bottle reducer is to reduce the speed to prevent missing bottle labeing which can decrease the error rate .

4.The screw rod is for adjusting the labeling operation platform to match for different location of labeling for different size container .

5.This labeling height adjuster is adjusting up and down for different height size of different size container.

6.The foam conveyor is for pressing and tightening the label to make it without label bobbles for delicate packing .



Specifications:





Production 30-60 bottle/min (Step motor)
60-230 bottle/min (Servo motor)
Labeling speed ≤40m/min
Labeling specification Glassine paper, transparent and opaque
Printer to use air 5kg/cm²
The application of bottle Outer diameter 12-24mm Height 25-95mm
The application of label Height 20-70mm Length 25-80mm
The inner diameter of label plate Min. 76mm
The outer diameter of label plate Max. 350mm
Driving mode Servo or step motor
The power of motor 300w
Size appearance 1800×700×1270mm
Voltage AC 220V 50/60Hz Single phase (according to the voltage in client country)
