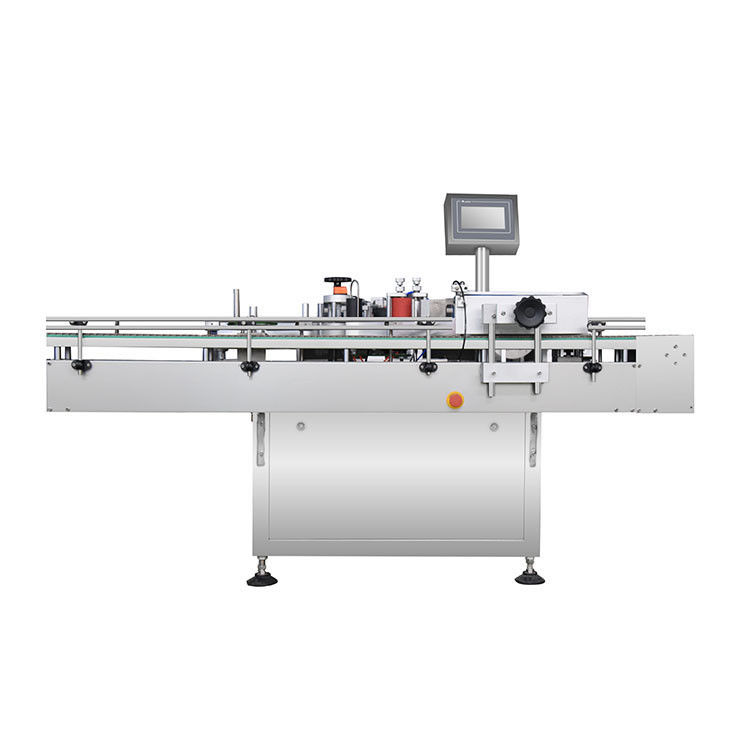

Fully Automatic Double Sides Labeling Machine for Flat/Round/Rectangular/Square bottles
  • Fully Automatic Double Sides Labeling Machine for Flat/Round/Rectangular/Square bottles
  • Fully Automatic Double Sides Labeling Machine for Flat/Round/Rectangular/Square bottles

Fully Automatic Double Sides Labeling Machine for Flat/Round/Rectangular/Square bottles

Place of Origin China
Brand Name LTPM China
Certification CE, GMP
Model Number MT
Product Details
Driver Moto:
Stepping Motor
Running Speed:
10-200 PCS/min
Power Supply:
AC220V 0.5Kw 60HZ
Application:
Food, Beverage, Commodity, MEDICAL, Chemical
Packaging Material:
Plastic
Driven Type:
Electric
Marketing Type:
Ordinary Product
Key Selling Points:
Easy To Operate
High Light:

bottle labeler machine

,

automatic round bottle labeling machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Export standard wooden case
Delivery Time
25days
Payment Terms
L/C, T/T
Supply Ability
25sets/month
Product Description

Description:



1. The machine adopts step motor for driving, high accuracy working. (Servo Motor is also an optional)

2. PLC control with Touch screen for operation. This controlling system are Taiwan Delta Brand.

3. The sensors of the machine are Japan imported brand, Keyence, High speed and accurate working.

4. The machine comes with automatic alarming system when lack of label, breaking label, lack of ribbon.

5. Whole body stainless steel 304 with T6 Aluminum Alloy meets GMP Standard.

The position of height and backwards or forwards are adjustable



Applications:



MT-200 model vertical type round bottle Round Bottle Labeling machine, in order to achieve rationalization of production target and design. The machine comes with automatic labeling process, simple operation, high speed running, accurate labeling position, beautiful labeling. The machine can be used for pharmaceutical, chemical and foodstuff Industry labeling.



Main Features:



1) Wide application range, can meet the needs of all round bottle labeling or semi circle labeling, labeling switching between the bottle is simple, easy to adjust

2) The label accuaracy is good, the tape detour adopts the rectifying mechanism, the tape does not deviate, the three directions of the labeling position x / y / z and the inclination are adjustable with eight degrees of freedom, and the adjustment has no dead angle.

3) The label quality is excellent, adopt the elastic press cover belt, the label is flat, no wrinkle, improve the packing quality.

4) The application is flexible , the bottle standing type labeling machine is provided with an automatic bottle separating function , can be produced in a single machine , and also can be connected with the production line.

5) Intelligent control , automatic photoelectric tracking , non - labeling , non - standard automatic correction and label auto - detection , prevention of leakage and label waste.

6)High stability, The supporting equipment runs 7 × 24 hour,Mitsubishi PLC,SIEMENS Touch ,KEYENCE bottle sensor,Leuze high accuracy label sensor.

7)The adjustment is simple , the labeling speed , the conveying speed and the bottle separating speed can realize stepless speed regulation , and the adjustment is carried out according to the requirement.

8)Strong and durable, adopt three bar adjusting mechanism, make full use of the stability of triangle, the whole machine is solid and durable. It is made of full ss304 stainless steel,which is in line with the requirements of GMP production.



Specifications:





Driver Motor: Stepping motor
Operation: Right or left
Running speed: 10-200 PCS/min
Packaging Range:

Ф 15 - Ф diameter 100mm

Height 25-350mm

Label size width 10-150mm length 15-200mm

Maximum diameter of label: Ф 300mm
Coil diameter: Ф 75mm label
Weight: 200kg
Power supply: AC220V 0.5Kw 60HZ
Overall Size: 2000X1300X1500
*Ribbon Coding machine: HP 260Q





Competitive Advantage:





1. We have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho





Our Work Shop:





Fully Automatic Double Sides Labeling Machine for Flat/Round/Rectangular/Square bottles 0





Our Machine Get Ready For Sending:





Fully Automatic Double Sides Labeling Machine for Flat/Round/Rectangular/Square bottles 1





Station:





Fully Automatic Double Sides Labeling Machine for Flat/Round/Rectangular/Square bottles 2
