Aseptic Syringe Filling Equipment PFS-1 Prefilled High Speed
  • Aseptic Syringe Filling Equipment PFS-1 Prefilled High Speed
  • Aseptic Syringe Filling Equipment PFS-1 Prefilled High Speed
  • Aseptic Syringe Filling Equipment PFS-1 Prefilled High Speed
  • Aseptic Syringe Filling Equipment PFS-1 Prefilled High Speed
  • Aseptic Syringe Filling Equipment PFS-1 Prefilled High Speed
  • Aseptic Syringe Filling Equipment PFS-1 Prefilled High Speed

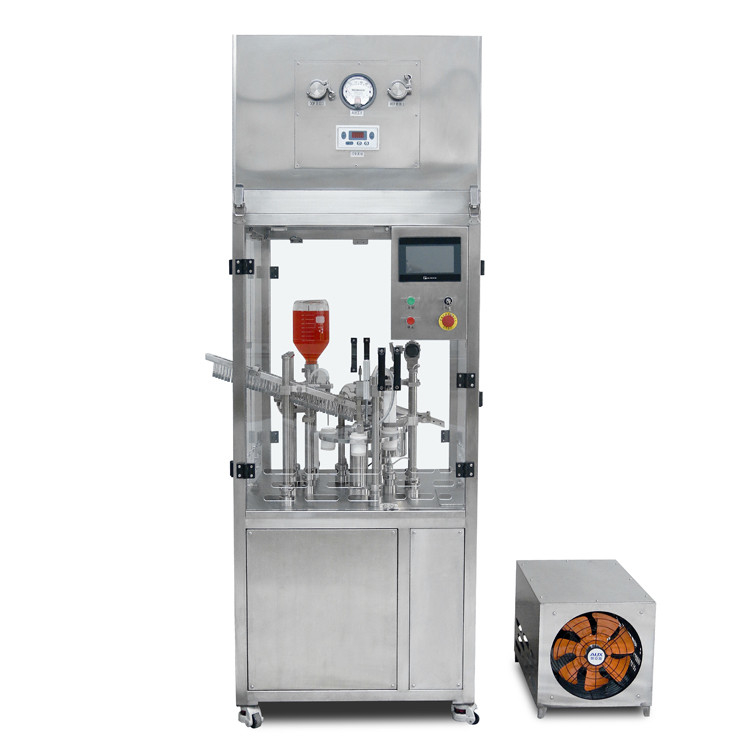

Aseptic Syringe Filling Equipment PFS-1 Prefilled High Speed

Place of Origin China
Brand Name LTPM China
Certification SGS, CE
Model Number PFS-1、PFS-1Pro
Product Details
Application:
Liquid And Ointment
Applicable Syringe Specifications:
0.5,1,2.25,3,5,10ML
Compressed Air:
0.55-0.75Mpa 15L/S
Filling Accuracy:
≤±1-2%
Total Power:
2 KW
Dimensions:
L808*W758*H1760mm
High Light:

Aseptic Syringe Filling Equipment

,

High Speed Aseptic Syringe Filling Equipment

,

Prefilled Syringe Machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Export Standard Wooden Case
Delivery Time
25days
Payment Terms
T/T, L/C, D/P, Cash, Paypal
Supply Ability
15sets/month
Product Description

Aseptic Syringe Filling Equipment PFS-1 Prefilled High Speed 0

This product is specially designed by our company for the filling of prefilled syringes. It is an automatic packaging equipment for aseptic and efficient filling of syringes. The equipment runs smoothly, is easy to operate, and is equipped with intelligent detection devices. It has high automation, high work efficiency and easy maintenance. It is an ideal equipment for filling and plugging prefilled syringes.



Technical Parameters



Mode
PFS-1Pro
PFS-1
Applicable Materials
Liquid and ointment
Liquid and ointment
Applicable Syringe Specifications
0.5,1,2.25,3,5,10ML
0.5,1,2.25,3,5,10ML
Number of Filling Heads
1
1
Number of Capping Heads
1
1
Filling Accuracy
≤±1-2%
≤±1-2%
Production Capacity
420-720 p/h
600-720 p/h
Total Power
2KW
2KW
Voltage
380V/220V 50-60Hz
380V/220V 50-60Hz
Compressed Air
0.55-0.75Mpa 15L/S
0.55-0.75Mpa 15L/S
Dimensions
L808×W758×H1760mm
L808×W758×H1760mm
Equipment Weight
300KG
300KG





Features

1.This product is widely applicable to SCF (prefilled syringe) syringes from BD, BG, SCHOTT and major domestic manufacturers. Other types of syringes can also be customized.

2.The surface is made of SUS304 stainless steel, and the contact parts are made of SUS316L stainless steel and medical silicon rubber, which fully meets the requirements of GMP specifications.
3.The ceramic plunger pump realizes quantitative filling, is resistant to acid and alkali corrosion, wear-resisting and high temperature, and has high filling accuracy.
4.The conveying and sorting of the rubber plugs are realized by the vibratory feeder, which is made of SUS316L stainless steel clean plate with bright surface treatment and no clean dead corners.
5.It adopts internationally renowned electrical components and implements interference-free modular control. Synchronous actions are all controlled by servo motors. Automatic filling and stoppering are implemented, which is accurate, reliable and easy to operate.
6.The operation of the motor is controlled by the PLC programming controller. The human-computer interaction interface monitors and displays the working status of each station in real time, and automatically alarms and displays the fault location in real time, and the fault prompts.

Aseptic Syringe Filling Equipment PFS-1 Prefilled High Speed 1
Loading Syringe Tube
enter the filling dial from the slide.Insert a syringe into the dial wheel and turn it to the corresponding work station.
Aseptic Syringe Filling Equipment PFS-1 Prefilled High Speed 2
Filling Pump
Controlled by peristaltic pump, high precision and easy cleaning.
