HDPE Liquid Bottle Filling Machine High Viscosity 5ml
  • HDPE Liquid Bottle Filling Machine High Viscosity 5ml
  • HDPE Liquid Bottle Filling Machine High Viscosity 5ml

HDPE Liquid Bottle Filling Machine High Viscosity 5ml

Place of Origin China
Brand Name LEADTOP
Certification CE certification
Model Number RotaFill-Series
Product Details
Model:
RotaFill-Series
Range:
5ml-100ml
Speed:
30-40bottles/minute
Measurement Precision:
±1%
Net Weight:
700kg
Contour Sizes:
2400×1640×1580mm
Automatic Grade:
Automatic
Packaging Type:
Case
High Light:

5ml liquid bottle filling machine

,

HDPE liquid bottle filling machine

,

HDPE high viscosity filling machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
discuss personally
Packaging Details
wooden box
Delivery Time
25days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
25 days/month
Product Description

Production Description



Automatic liquid filling machine is made with electric,mechnical and pneumatic principle. Use counter to control the filling colume and designed with Special filling nozzel to reduce bubble when filling.

It is widely use for foodstuff chemical and medicine filed etc. We can accord to customer's requirements to design the filling volume.





Technical parameters:

Capacity
2500BPH (500ml)
Bottle Height
150~310mm
Bottle Diameter
50~96mm(diameter)
Bottle Type
PET bottle
Cap
HDPE Cap
Washing Head
8
Washing Capacity
1000kgs/hour
Washing Pressure
0.2-0.4Mpa
Filling Heads
8
Capping Heads
3
Rated Voltage
220V/380V,50/60HZ, 3 phase
Main Motor Power
1.5kw
Total Motor Power
3kw
Overall dimension
2000*1800*2100mm
Weight
1800Kg





Features:

1. Can customize products according to customer bottle samples.

2. Adopted piston quantitative, mechanical and electrical, pneumatic in one, electrical and pneumatic components used well-known brands.

3. Screen rational design, simple operation.

4. Compact structure, beautiful appearance, with stable and reliable performance, easy maintenance.

5. Filling accuracy, adaptability.

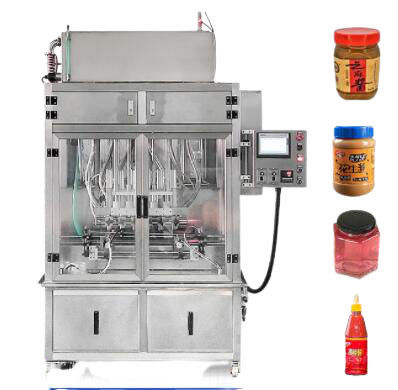

HDPE Liquid Bottle Filling Machine High Viscosity 5ml 0



HDPE Liquid Bottle Filling Machine High Viscosity 5ml 1

Machine Details



HDPE Liquid Bottle Filling Machine High Viscosity 5ml 2
