SryPlas-4 Automatic Liquid Filling Machine PreFilled Syringe Sealing Aseptic
  • SryPlas-4 Automatic Liquid Filling Machine PreFilled Syringe Sealing Aseptic
  • SryPlas-4 Automatic Liquid Filling Machine PreFilled Syringe Sealing Aseptic
  • SryPlas-4 Automatic Liquid Filling Machine PreFilled Syringe Sealing Aseptic
  • SryPlas-4 Automatic Liquid Filling Machine PreFilled Syringe Sealing Aseptic
  • SryPlas-4 Automatic Liquid Filling Machine PreFilled Syringe Sealing Aseptic
  • SryPlas-4 Automatic Liquid Filling Machine PreFilled Syringe Sealing Aseptic

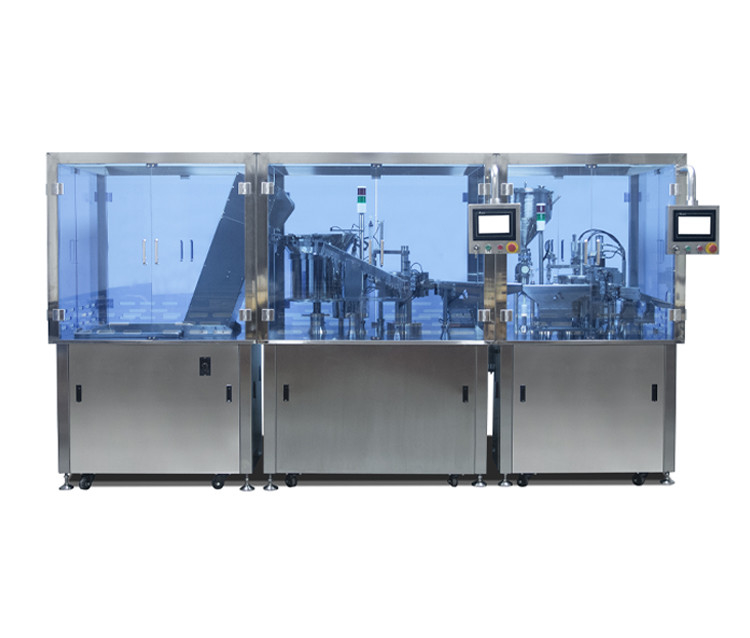

SryPlas-4 Automatic Liquid Filling Machine PreFilled Syringe Sealing Aseptic

Place of Origin China
Brand Name LTPM China
Certification SGS, CE
Model Number SryPlas-4
Product Details
Application:
Liquid And Ointment
Number Of Injection Needles:
1 Needle
Compressed Air:
0.55-0.75Mpa 15L/S
Filling Accuracy:
≤±1-2%
Total Power:
3 KW
Voltage:
380V/220V 50-60Hz
High Light:

Liquid PreFilled Filling Machine

,

Aseptic Syringe Filling Sealing Machine

,

Syringe Filling Sealing Machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Export Standard Wooden Case
Delivery Time
25days
Payment Terms
T/T, L/C, D/P, Cash, Paypal
Supply Ability
15sets/month
Product Description

This product is specially designed by our company for the filling of plastic syringes. It is an automatic packaging equipment for aseptic and efficient filling of syringes. The equipment runs smoothly, is simple to operate, and is equipped with intelligent detection devices, with high automation, high work efficiency, convenient maintenance, and the technology can reach the current domestic industry advanced level.

SryPlas-4 Automatic Liquid Filling Machine PreFilled Syringe Sealing Aseptic 0



Specification:



filling machine
Applicable materials Water agent and ointment
Insyringe syringe applicable 0.5-80ml
Filling accuracy ≤±1-2%
Number of injection needles One
productive power 1800-2700 branches / h
gross power 3KW
voltage 380V/220V 50-60Hz
group installed equipment

Applicable

package material

Custom plastic syringes
Insyringe syringe applicable 5-80ml
Silicon oil assembly Japanese import customization
noise ≤ 60 decibels
production capacity 1800-2700 branches / h
gross power 3KW
voltage 380V/220V 50-60Hz
auto loading conveyor
Applicable package material Custom plastic syringes
Insyringe syringe applicable 5-80ml
noises ≤ 60 decibels
Feeding capacity 0-180 units / min (Adjustable)
gross power 1.5KW
voltage 380V/220V 50-60Hz
physical dimension L1100×W952×H1785mm
Max forming depth 12mm
Cutting frequency 0-25
Packing material PVC/PE(0.2-0.4)×120mm
Capacity 1-50ml
Indtalled power 6.5Kw
Voltage 380V/50Hz
Machine’s weight 850Kg
Quter size(L×W×H) 3200×850×1400mm





SryPlas-4 Automatic Liquid Filling Machine PreFilled Syringe Sealing Aseptic 1

auto loading conveyor

SryPlas-4 Automatic Liquid Filling Machine PreFilled Syringe Sealing Aseptic 2



auto loading

Just place the full box of syringes in the conveyor to save labor.

SryPlas-4 Automatic Liquid Filling Machine PreFilled Syringe Sealing Aseptic 3



Syringe tube loading guider

Syringe sort of vibrating plate will sort of the syringe tubes and send to the loading guider one by one, loading guider will send syringe tub into turn table.

SryPlas-4 Automatic Liquid Filling Machine PreFilled Syringe Sealing Aseptic 4

Assembling Station

Assembling equipment, Japanese import customization Silicon oil assembly.
