220v 5mm Soft Gelatin Tablet Capsule Counter 24 Channels
  • 220v 5mm Soft Gelatin Tablet Capsule Counter 24 Channels
  • 220v 5mm Soft Gelatin Tablet Capsule Counter 24 Channels
  • 220v 5mm Soft Gelatin Tablet Capsule Counter 24 Channels

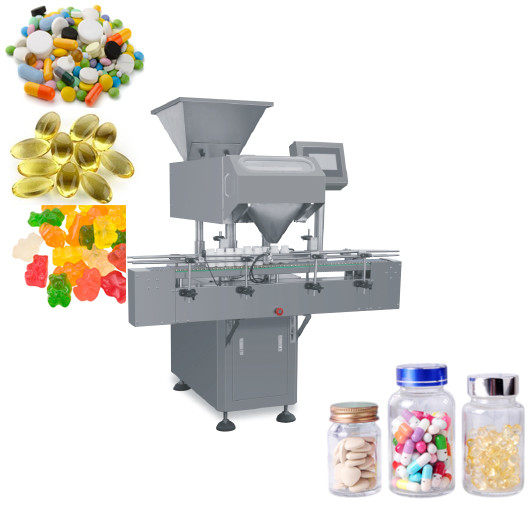

220v 5mm Soft Gelatin Tablet Capsule Counter 24 Channels

Place of Origin China
Brand Name LTPM China
Certification CE, GMP, SGS, BV
Model Number LTEC series
Product Details
220v 50hz Single Phase
Line Length:
High Light:

5mm Soft Gelatin Tablet Capsule Counter


24 Channels Tablet Capsule Counter


Intellectualized Tablet Capsule Counter

Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Export Standard Wooden Case
Delivery Time
Payment Terms
Supply Ability
Product Description


Products Description


The electronic counting machine is a kind of light and compact counting and filling equipment for solid particles. It adopts the internationally advanced 8-channel vibration, computer control, dynamic scanning counting, automatic bottle conveying and photoelectric control. As a high-tech material counting and filling machine, the machine is widely used in pharmaceutical, food, chemical and other industries to count and fill tablets, capsules, pills, food, health care products and other materials.





soft gelatin capsule, hard capsule, tablet, gummy candy (like bear candy).


Working principle:


The bottle device on the bottle track of the bottle conveying mechanism will transfer the bottle from the upper equipment to the bottling position, waiting for filling. The medicine enters the storehouse in an orderly manner through the vibration of the corrugated plate. The storehouse is equipped with a counting photoelectric sensor, and the medicine falling into the storehouse is loaded into the bottle at the bottling position after quantitative counting by the photoelectric counting sensor.


Main features


Easy operation :Adopting intellectualized design, all kinds of operation data can be set according to the requirement .It can store 10 groups of setting parameters for use.


Convenient maintenance :After simple training, the worker can operate easily.It is easy to disassembly, clean and change the components without any tools.


Sealing and dustproof :Dust collection box is available, it can reduce the dust pollution. (Optional)


Main Technical Data
Model LTEC-12 LTEC-16 LTEC-24 LTEC-32
Slide wheel 12 Channels 16 Channels 24 Channels 32 Channels
Size of Object Tablet: φ5-12mm Capsule: 00#-5# all kinds of soft capsule
Size of bottles 20-300ml
The diameter for bottles mouth 20-80mm
Output 4,000pcs/min 6,000pcs/min 8,000pcs/min 10,000pcs/min
Capacity 40bottles/min 60bottles/min 80bottle/min 100bottles/min
Power 0.9KW 0.9KW 1.35KW 1.35KW
Power supply 220V 60HZ
Air pressure 6kgs/c
Overall dimensions(mm) 1700×1700×1900 2000×1700×1900 2800×1700×1900 3200×1700×1900
