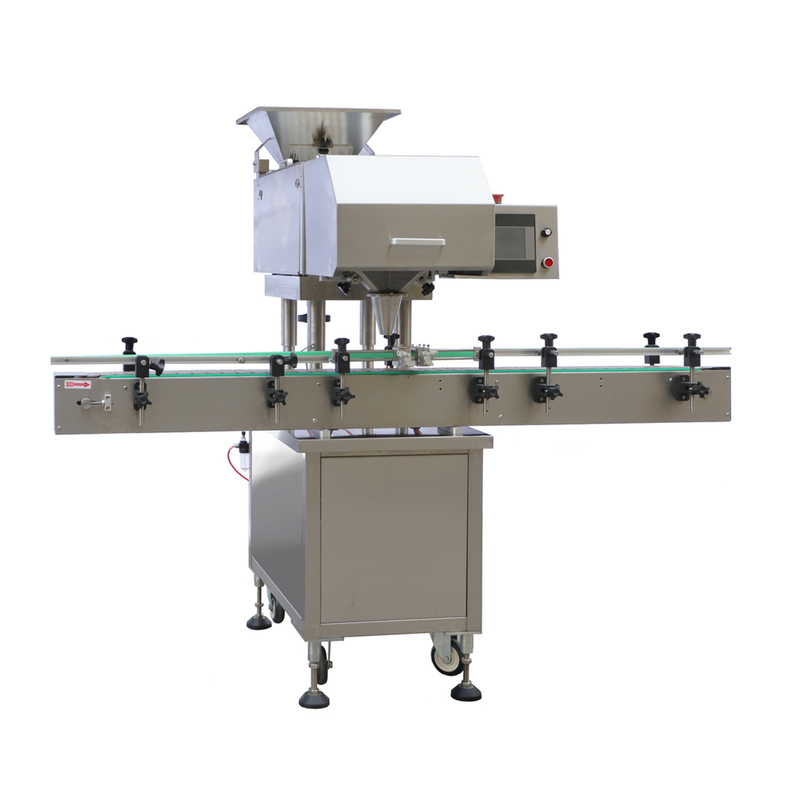

Softgel Candy Counter Counting Tablets Capsule Machine
  • Softgel Candy Counter Counting Tablets Capsule Machine
  • Softgel Candy Counter Counting Tablets Capsule Machine
  • Softgel Candy Counter Counting Tablets Capsule Machine
Softgel Candy Counter Counting Tablets Capsule Machine

Softgel Candy Counter Counting Tablets Capsule Machine

Place of Origin China
Brand Name LTPM China
Certification CE, GMP, SGS, BV
Model Number LTEC series
Product Details
Usage:
Capsule,tablets,gums,rubber,etc.
Power:
220v 50hz Single Phase
Transmission:
Electronic
Capacity:
2000-3000 Pieces/minute
Brand:
LeadTop
Line Length:
Optional
Weight:
100kg
Dimension:
1200mm×660mm×750 Mm
Highlight:

softgel candy counting machine

,

automatic capsule counter

,

tablet counting machine with warranty

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Export Standard Wooden Case
Delivery Time
25days
Payment Terms
T/T,L/C,D/P
Supply Ability
15sets/month
Product Description

Products Description

counting and filling machine is a minitype lab equipment which adopts advanced vibration and 8 channel, computer control, dynamic scan counting automatically. The machine with compact design is comply with the standard of GMP. The machine is easy to be operated without training. Compose the light, electric machinery to one set, which is suitable for tablet or capsule counting and filling in lab, semi-works.
This capsules counting mchine combines 16-channel counting heads over a dual-track conveyor on a single frame to double the throughput without doubling the floor space, achieving speeds up to 60 cpm based on 100-count bottles. The machine handles a wide variety of candies,both hard and soft candies of different shapes, sizes and properties.

Features
1. Speeds up to 30 cpm based on 100-count bottles with vibration system

2. Counter discrepancies is less than 1‰

3. Operation stable and lower noise

4. Bottle convey smoothly with dual-track conveyor

5. full-set protecting device keep operation steady and reliable

6. Touch screen Control System which is easy to control

7. Simple Straight Forward Operator Controls

8. On-Screen trouble description which is easy to solve

9. Stainless Frame capsules counting mchine


Main Technical Data

Counting Speed 2000-3000 pieces/minute
Bottle height 40mm-100mm
Bottle opening Φ25- 40 mm
Bottle diameter Φ45 mm – 60 mm
Size of tablet Φ5 mm – 15 mm
Size of capsule 0# – 5#
Power source & consumption 1.5KW, 220v, single phase, 50-60HZ
Compressed air pressure 87 Psi (6 Kgs/ cm2)
Dimensions (L*W*H) 1200mm×660mm×750 mm
Weight 100kg
Working direction Left → Right (or Right → Left)
