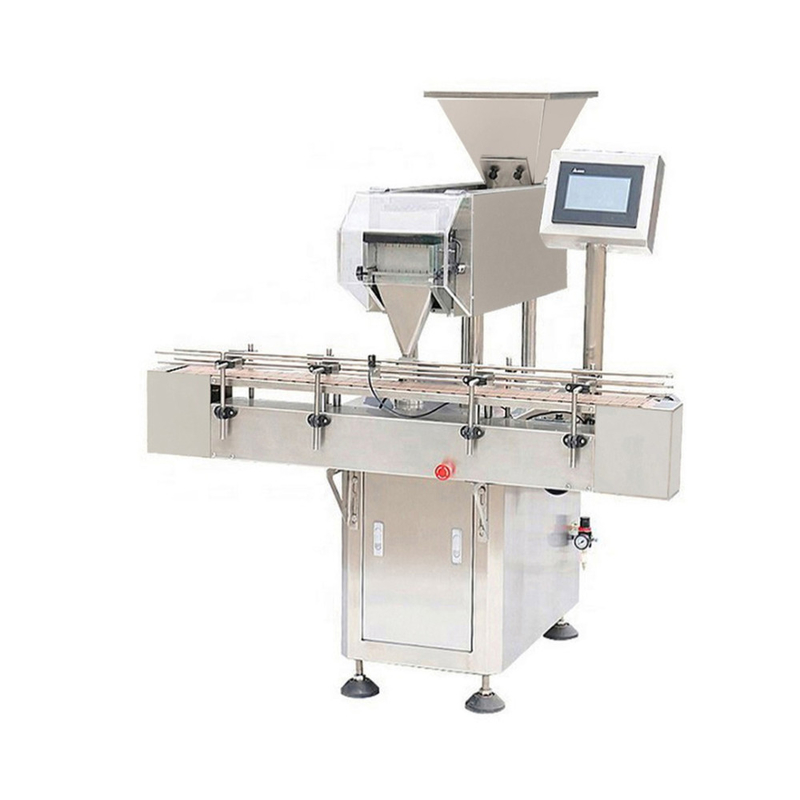

8 Channel Pharmacy Tablet Counting Filling Machine Automatic Vibrating
  • 8 Channel Pharmacy Tablet Counting Filling Machine Automatic Vibrating
  • 8 Channel Pharmacy Tablet Counting Filling Machine Automatic Vibrating
  • 8 Channel Pharmacy Tablet Counting Filling Machine Automatic Vibrating

8 Channel Pharmacy Tablet Counting Filling Machine Automatic Vibrating

Place of Origin China
Brand Name LTPM China
Certification CE, GMP, SGS, BV
Model Number LTEC series
Product Details
Usage:
Capsule,tablets,gums,rubber,etc.
Power:
220v 50hz Single Phase
Transmission:
Electronic
Capacity:
200000pcs/h
Brand:
LeadTop
Line Length:
Optional
High Light:

8 Channel Counting Filling Machine

,

0.9KW Automatic Counting Machine

,

6000pcs/Min Counting Filling Machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Export Standard Wooden Case
Delivery Time
25days
Payment Terms
T/T,L/C,D/P
Supply Ability
15sets/month
Product Description

Factory Automatic Vibrating Capsule Pharmacy Tablet Counting And Filling Machine 200000pcs/h capacity



APPLICATIONS:



It can be widely used for counting and bottling solid preparations, such as pills, sugar-coated tablets, plain tablets, soft and hard capsules and other shapes of medicine granules.



Products Specifications



Electronic Counting Machine is mainly suitable for medicine, industry, chemical industry, food and other industries. It can be widely used for counting and bottling solid preparations, such as pills, sugar-coated tablets, plain tablets, soft and hard capsules and other shapes of medicine granules. This machine can be used independently, and can also form a linked production line with other supporting equipment such as bottle unscrambler, filling machine, capping machine, sealing and labeling machine.





1. With 8-channel vibration, materials are distributed more evenly.

2. It runs stably and smoothly with low noise.

3. It adopts unique anti-dust photoelectric sensor.

4. Due to photoelectric sensor detection and imported large PLC counting, bottle-filling error meets the international standard.

5. It is equipped with a dust box to reduce dust pollution. 6. The platform height can be adjusted according to the bottle height



Details



Electrical control system

(Control panel) This part includes HMI, PLC and the power amplifier.



Dual emergency stop switch device

convenient and fast when emergency stop is required in the process of counting grains, and there is no need to run back and forth.



The new pneumatic blanking is adopted

the continuous number of grains does not stop, and the blanking is pushed by the cylinder at one time. The output is 50% higher than that of the previous machines.



Three-stage vibrators

With 8-channel vibration, materials are distributed more evenly.



The plexiglass transparent window

It can observe the blanking condition of the machine at any time, timely adjust and disassemble and clean up problems, which is convenient and fast



Main features:

1. Three-stage vibrators:With 8-channel vibration, materials are distributed more evenly.

2. Reliable operation:It runs stably and smoothly with low noise.

3. High dust resistance:It adopts unique anti-dust photoelectric sensor.

4. Accurate counting:Due to photoelectric sensor detection and imported large PLC counting, bottle-filling error meets the international standard.

5. Optional function:If special components are added, it can possess functions such as rejecting unqualified capsules or tablets and photoelectric detection alarming for lack of bottles or bottles being blocked.





Main Technical Data
Model LTEC-12 LTEC-16 LTEC-24 LTEC-32
Slide wheel 12 Channels 16 Channels 24 Channels 32 Channels
Size of Object Tablet: φ5-12mm Capsule: 00#-5# all kinds of soft capsule
Size of bottles 20-300ml
The diameter for bottles mouth 20-80mm
Output 4,000pcs/min 6,000pcs/min 8,000pcs/min 10,000pcs/min
Capacity 40bottles/min 60bottles/min 80bottle/min 100bottles/min
Power 0.9KW 0.9KW 1.35KW 1.35KW
Power supply 220V 60HZ
Air pressure 6kgs/c
Overall dimensions(mm) 1700×1700×1900 2000×1700×1900 2800×1700×1900 3200×1700×1900
