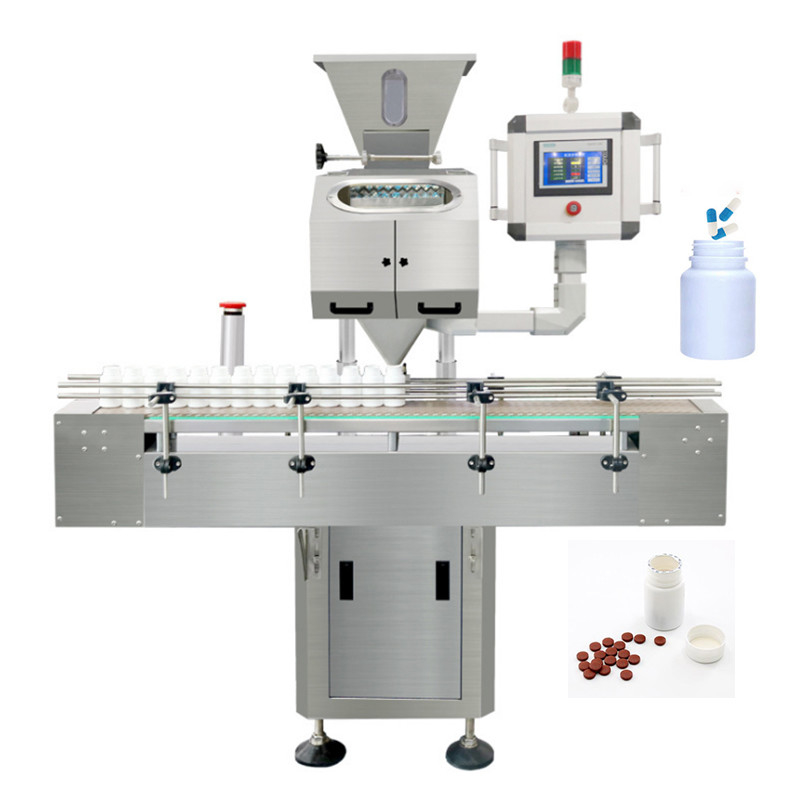

16 Channels Tablet Counting Filling Machine Stainless Steel Tablet Counter
  • 16 Channels Tablet Counting Filling Machine Stainless Steel Tablet Counter
  • 16 Channels Tablet Counting Filling Machine Stainless Steel Tablet Counter
  • 16 Channels Tablet Counting Filling Machine Stainless Steel Tablet Counter

16 Channels Tablet Counting Filling Machine Stainless Steel Tablet Counter

Place of Origin China
Brand Name LTPM China
Certification CE, GMP, SGS, BV
Model Number LTEC series
Product Details
Usage:
Capsule,tablets,gums,rubber,etc.
Power:
220v 50hz Single Phase
Transmission:
Electronic
Capacity:
200000pcs/h
Brand:
LeadTop
Line Length:
Optional
High Light:

16 ChannelsTablet Counting Filling Machine

,

GMP Stainless Steel Tablet Counter

,

300ml Bottles Steel Tablet Counter

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Export Standard Wooden Case
Delivery Time
25days
Payment Terms
T/T,L/C,D/P
Supply Ability
15sets/month
Product Description

Automatic Stainless Steel Pills Tablet Counter Electronic Tablet Counting Filling Machine 200000pcs/H



Product Application

Automatic Electronic Counting Machine is mainly used for bottle packing of tablets (including abnormal tablets), capsules, gels (including transparent gels and opaque gels) pills and similar solid granules. Highly accurate counting.

Using our own original high anti-dust sensor technology, the machine works accurately with good stability in heavy dust conditions.

Feeding evenly with quiver, special patent filling part protects materials from harm.

No bottle under the filling hopper, no materiel in the supply hopper, or the photoelectric sensor box is abnormal, the machine makes alarm.

The special filling hopper avoids the materials jam, small mouth bottle can quickly bottling. (Available as an option)

You can choose the advanced device of getting rid of powder and the device of getting rid of static electricity. (Available as an option)

Sound and light alarm. (Available as an option)

Detection options include: lack of products in the supply hopper, damaged tablet, weighing systems online. (Available as an option)

Fully compliant to GMP regulations.



Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) Accurate measuring to get excellent filling effect.

4) Running in a high automatization and intellectualization,no pollution

5) Suitable for a wide range of granules, such as tablets, capsules, gels, beans, hardwares, candy, etc.





Main Technical Data
Model LTEC-12 LTEC-16 LTEC-24 LTEC-32
Slide wheel 12 Channels 16 Channels 24 Channels 32 Channels
Size of Object Tablet: φ5-12mm Capsule: 00#-5# all kinds of soft capsule
Size of bottles 20-300ml
The diameter for bottles mouth 20-80mm
Output 4,000pcs/min 6,000pcs/min 8,000pcs/min 10,000pcs/min
Capacity 40bottles/min 60bottles/min 80bottle/min 100bottles/min
Power 0.9KW 0.9KW 1.35KW 1.35KW
Power supply 220V 60HZ
Air pressure 6kgs/c
Overall dimensions(mm) 1700×1700×1900 2000×1700×1900 2800×1700×1900 3200×1700×1900





16 Channels Tablet Counting Filling Machine Stainless Steel Tablet Counter 016 Channels Tablet Counting Filling Machine Stainless Steel Tablet Counter 1
