8 Channel Tablets Counting One Head Filling Machine 200000pcs/H
  • 8 Channel Tablets Counting One Head Filling Machine 200000pcs/H
  • 8 Channel Tablets Counting One Head Filling Machine 200000pcs/H

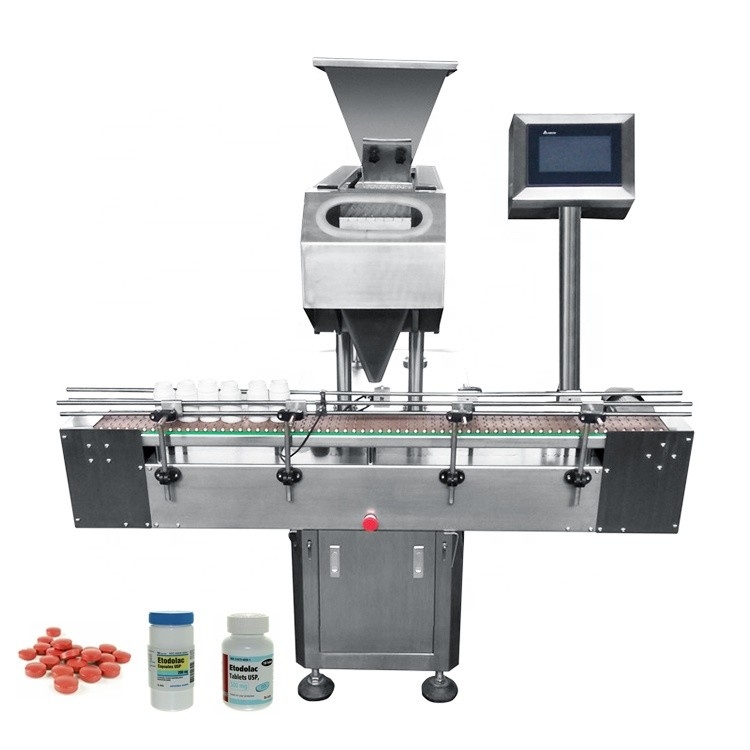

8 Channel Tablets Counting One Head Filling Machine 200000pcs/H

Place of Origin China
Brand Name LTPM China
Certification CE, GMP, SGS, BV
Model Number LTEC series
Product Details
Usage:
Capsule,tablets,gums,rubber,etc.
Power:
220v 50hz Single Phase
Transmission:
Electronic
Capacity:
200000pcs/h
Brand:
LeadTop
Line Length:
Optional
High Light:

8 Channel One Head Filling Machine

,

Photoelectric One Head Filling Machine

,

One Head Filling Machine 200000pcs/H

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Export Standard Wooden Case
Delivery Time
25days
Payment Terms
T/T,L/C,D/P
Supply Ability
15sets/month
Product Description

8 Channel Tablets Counting One Head Filling Machine 200000pcs/H



Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) Accurate measuring to get excellent filling effect.

4) Running in a high automatization and intellectualization,no pollution

5) Suitable for a wide range of granules, such as tablets, capsules, gels, beans, hardwares, candy, etc.



Details



Filling Nozzle

There is photoelectric sensor detect the bottle, bottle is stopped by rail, then fill granules, quantity reachs, filled bottle is conveyed away.



Vibrating Channels

8 vibrating channels works the same time.



Vibrating device

It is power of granules running to filling nozzle.





Machine Induction

Under the driving of the vibration, the pills pass through the regulating valve below the material container, moving forward in order and fall into counting tunnels. When the pill reaches raster holes, the counting photoelectric will produce a pulse signal and counting. The signal is grouped into the left and the right, accumulated and sent to the PLC. When the set quantity is reached, the flashboard will close. At the same time, the bottle to be filled is already in its position. The funnel cylinder board opens, and the counted pills fall into the bottle. Then the tunnel begins another counting, the positioning cylinder opens, and the filled bottle is sent to the next process. A new bottle is placed under the funnel, a new round of counting and filling starts.





Main Technical Data
Model LTEC-12 LTEC-16 LTEC-24 LTEC-32
Slide wheel 12 Channels 16 Channels 24 Channels 32 Channels
Size of Object Tablet: φ5-12mm Capsule: 00#-5# all kinds of soft capsule
Size of bottles 20-300ml
The diameter for bottles mouth 20-80mm
Output 4,000pcs/min 6,000pcs/min 8,000pcs/min 10,000pcs/min
Capacity 40bottles/min 60bottles/min 80bottle/min 100bottles/min
Power 0.9KW 0.9KW 1.35KW 1.35KW
Power supply 220V 60HZ
Air pressure 6kgs/c
Overall dimensions(mm) 1700×1700×1900 2000×1700×1900 2800×1700×1900 3200×1700×1900
