Premade Bag Packing Machine
>
|
| Place of Origin | CHINA |
| Brand Name | BHP-240Z |
| Certification | CE |
| Model Number | BHP-240Z |

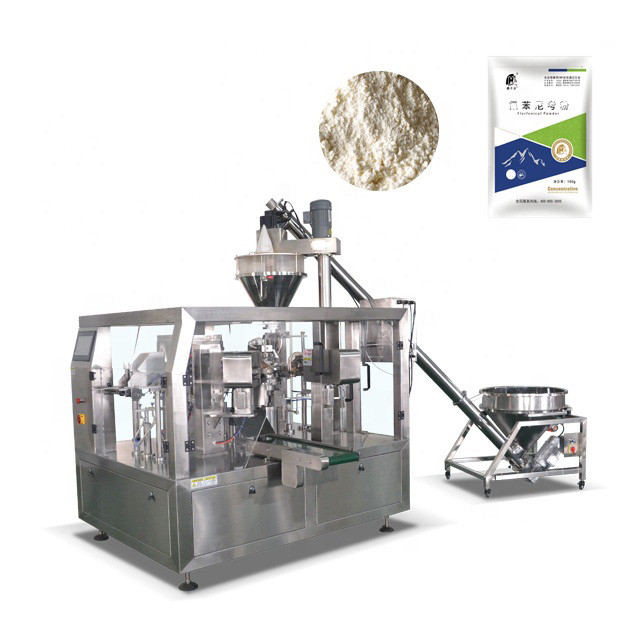

Automatic rotary medicine powder premade bag pack wheat flour powder filling packing machine
MAIN FEATURES
* Wide application : various shapes, state and nature of products (such as candy,chips,nuts,frozen dumplings,biscuits,mothballs,pet food,puffed food,hardware,plastic parts, etc.)
* Automatic rotary packing machine adopt precision indexing device and PLC to control each action and working station to make sure the machine operates easily and does accurately.
* Easy to operate: PLC controller, HMI system, fault indication on the touch screen.
* The speed of this machine is adjusted by frequency conversion with the range, and the actual speed depends on type of products and pouch.
* Automatic checking system can check bag situation, filling and sealing situation.
* The system shows 1.no bag feeding, no filling and no sealing. 2.no bag opening/opening error, no filling and no sealing 3.no filling, no sealing.
* Stainless steel 304 /other materials ensure sanitation and safety, meet the GMP standard.
* Internal grooved cam design: The echnology with high precision, suits for max. packing speed: 65cycles/min with stable running.
Automatic Rotary Medicine Powder Premade Bag Pack Wheat Flour Powder Filling Packing Machine
Advantage :
1. Easy to operate,adopt advanced PLC from Japan Mitsubishi, mate with touch screen and electric control system, the man-machine interface is friendly.
2. Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
3. Safety device: Machine stop at abnormal air pressure, heater disconnection alarm
Technical Specifications:
| Working position | eight-working position |
| Pouch material | Laminated film PE,PP |
| Pouch pattern | stand-up&zipper pouch |
| Pouch size | W:100-210mm L:100-350mm |
| Filling Scope | 10-5000g( The screw attachment is to be changed) |
|
Weight Accuracy
|
Package weight ≤ 100g, with an error≤±2% 100 — 500g,with an error≤±1% ≥500G error≤±0.5% |
| Speed | 10-45pouches/min(The speed depends on the product status and flling weight)) |
| Voltage | 380V 3phase 50HZ/60HZ |
| Total power | 8.5KW |
| Compress air | 0.6m3/min(supply by user) |
Application
GRANULES TYPE
• It adopt different types of powder.
• Powder:milk powder,seasoning,cocoa powder,pesticide,washing
powder,flour,etc.
POUCH TYPE
• It can adopt different types of pre-made pouches,such as Flat pouch, Stand-up pouch, Zipper pouch, Spout pouch, M gusset pouch, Paper pouch, Aluminium foil pouch, etc.
