Automatic Premade Preformed Prefabricated Bags Pouches Packing Machine
  • Automatic Premade Preformed Prefabricated Bags Pouches Packing Machine
  • Automatic Premade Preformed Prefabricated Bags Pouches Packing Machine
  • Automatic Premade Preformed Prefabricated Bags Pouches Packing Machine

Automatic Premade Preformed Prefabricated Bags Pouches Packing Machine

Place of Origin CHINA
Brand Name LTPM CHINA
Certification CE
Model Number HorizonTop-Series
Product Details
Type::
Packing Machine
Application:
Food,daily Chemical Etc
Automatic Grade::
Automatic
Dimension(L*W*H)::
4400mm*2200mm*3600mm
Additional Function:
Hanging Hole,special Shape
Packing Speed::
20-80 Bags/min
Control:
PLC+ Touch Screen+Inverter
Weight(kg):
4250
Highlight:

premade bag packing machine with warranty

,

automatic prefabricated pouches packing machine

,

preformed bags packing machine for pouches

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiation
Packaging Details
Wooden Case
Delivery Time
25
Payment Terms
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability
25 sets/ month
Product Description

Products Description:

This set of packaging equipment mainly includes 10 or 14 computer combination scales, 8-station pre-made bag feeding bag packaging machine host, Z-type feeder (including vibration feeder) + stainless steel working platform. It is suitable for packaging various flakes, blocks, granules and other dry irregular shape products, such as: sugar, coffee, salt, granular seasoning, fish foods, pet foods, fertilizer, beans, soybeans, mung beans, red beans, Peas, coffee beans, peanut kernels, cereals, grains, corn, rice, barley, candy, biscuits, sunflower seeds, nuts, cashews, pistachios, walnuts, almonds, pine nuts, frozen food, fish balls, meatballs, frozen shrimp, frozen dumplings, wontons, etc. And irregular shape materials, such as: dehydrated vegetables, preserved fruit, dried fruit, puffed food, potato chips, French fries, shrimp sticks, toys, hardware, etc.
This set of equipment can also be matched with other metering and filling devices to package different products, such as: liquid metering pump, packaging laundry detergent, hand sanitizer, sauce, ketchup, pasta sauce, jam, salad dressing, honey, barbecue sauce, Juice, Jelly, etc. It can also be equipped with a screw filling device to pack powder products, such as seasoning powder, pepper powder, chili powder, wheat flour, corn flour, rice flour, sweet potato powder, milk powder, soybean milk powder, coffee powder, washing powder, etc.
Work process:
The bag taking device takes the bag—the coder prints the date and batch number, and open the zipper—the bag opening device opens the bag—the filling device fills the material, the vibration device vibrates to enrich the material—the nitrogen gas is filled—the heat sealer seals the bag and punch hole —– close the zipper— Tidy the bag more beautiful and finished product output.

Technical Data:

Bag types

Composite plastic film, aluminum-plastic composite film, paper film prefabricated bags, four-side sealing bags, stand-up bags, side-folding bags, zipper bags, special-shaped bags.

Bag size

Width≤210mm,Length≤300mm

Products

Granules, powder, liquid paste, flakes, irregular materials.

Packing speed

20-80 bags/min

Compressed air

0.6-0.8MPa, 0.4m³/min

Voltage

AC380V 3-Phase, 50/60Hz.

Power

Host 8.5Kw.,auxiliary equipment: 3.5Kw.

Gross weight

The host machine is 750Kg., auxiliary equipment, such as ten-head electronic scale + Z-type feeder + stainless steel platform, about 650Kg. The whole set of equipment is about 1400Kg.

Dimension

Host size: Length 1950*Width 1400*Height 1520mm, if equipped with ten-head electronic scale + Z-type feeder + stainless steel platform, the total size is: Length 4400*Width 2200*Height 3600mm.



Features:

1) The whole set of equipment is made of high-quality stainless steel to ensure the safety and hygiene of the product, in line with GMP standards;


2) Using PLC+touch screen control system, the operation is simple and intuitive;


3) One machine with multi-purpose, this machine can be applied to various types of bags, such as: stand-up bags, side-folded bags, three-side sealed bags, four-side sealed bags, zipper bags, special-shaped bags, etc. Equipped with different measuring and filling devices, it can pack different materials.


4) The production date and batch number can be printed automatically;


5) Simple adjustment, it can be easily applied to bags of different sizes;


6) Automatically realize edge sealing and punching, which can punch round holes, flat holes, aircraft holes, etc.;


7) The edge banding is neat and strong, the standard is unified, and the appearance of the finished product is more beautiful.


Machine Detail:

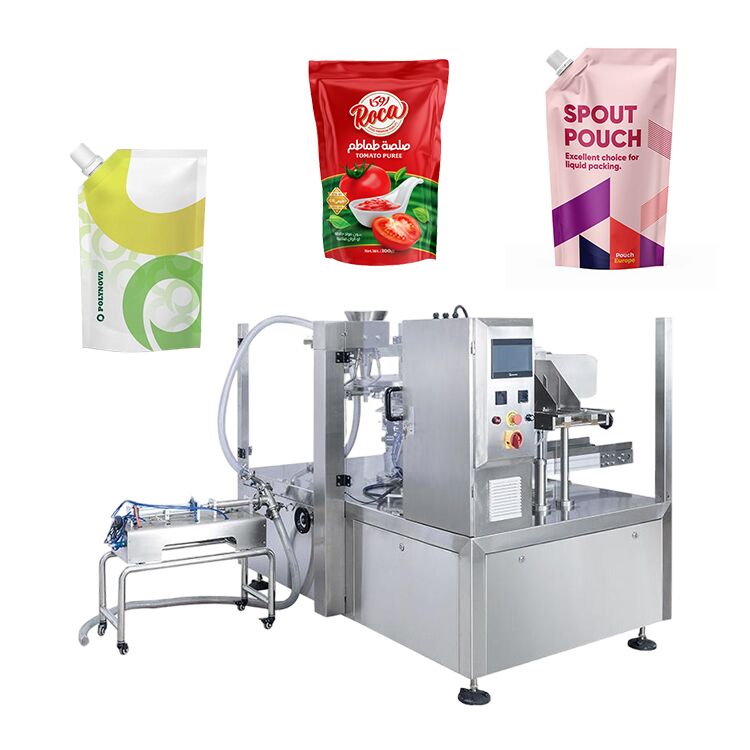

Automatic Premade Preformed Prefabricated Bags Pouches Packing Machine 0
