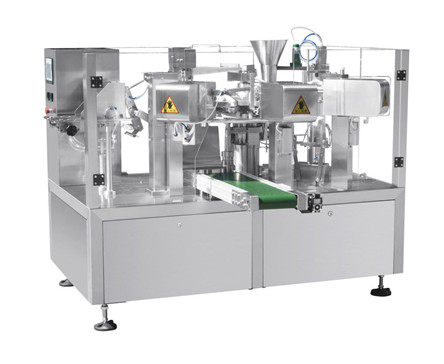

Premade Bag Packing Machine
>
|
| Place of Origin | CHINA |
| Brand Name | BHP-240Z |
| Certification | CE |
| Model Number | BHP-240Z |
1. It uses stainless steel 304 shell for food grade required.
2. Automatic detection. No pouch or pouch is not opened completely, no filling, no sealing.
3. Horizontal Infeed conveyor suits for bags with zipper, max. put 300pcs each time.
4. Zipper Openner System: Servo motor (Yaskawa / Japan) controlled.
5. Independent temperature control system (Omron/Japan).
6. PLC adjust bag width clamping: Only needs 2mins by auto PLC for adjust different bag width sizes.
7. Automatic lubrication system: PLC control the lubrication time,automatically lubricate the machine parts instead of by manual.
8. It includes ribbon type date code: 3 lines * 17 characters.
9. Guarding: Glass Door Alarm / Air Pressure Abnormal
10. Internal grooved cam design: The technology with high precision, suits for max. packing
speed: 50 cycles/min with stable running.
Advantage :
1. Easy to operate,adopt advanced PLC from Japan Mitsubishi, mate with touch screen and electric control system, the man-machine interface is friendly.
2. Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
3. Safety device: Machine stop at abnormal air pressure, heater disconnection alarm
Technical Specifications:
|
Working position |
eight-working position |
|
Pouch material |
Laminated film PE,PP |
|
Pouch pattern |
stand-up&zipper pouch |
|
Pouch size |
W:100-210mm L:100-350mm |
|
Filling Scope |
10-5000g( The screw attachment is to be changed) |
|
Weight Accuracy
|
Package weight ≤ 100g, with an error≤±2% 100 — 500g,with an error≤±1% ≥500G error≤±0.5% |
|
Speed |
10-45pouches/min(The speed depends on the product status and flling weight)) |
|
Voltage |
380V 3phase 50HZ/60HZ |
|
Total power |
8.5KW |
|
Compress air |
0.6m3/min(supply by user) |
