Premade Bag Packing Machine
>
|
|
| Place of Origin | CHINA |
| Brand Name | BHP-240Z |
| Certification | CE |
| Model Number | BHP-240Z |

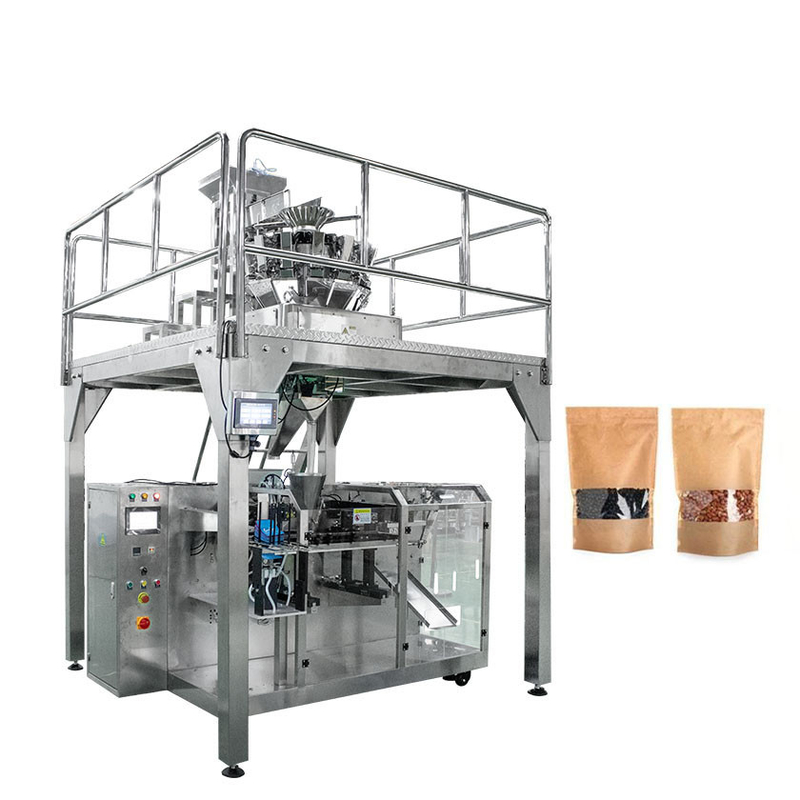

Automatic Packaging Multi-Function Premade Bag Granular Powder Pouch Packing Machine
Main Features
1. Multi-head combined weigher, improve metering speed and accuracy.
2. 7inch touch screen, easy operation and multiple language for choice.
3. Imported PLC system, machine performance is stable and easy for parameters adjusting.
4. With a memory function for storage ten sets of parameters. Easy to change packing product.
5. Separate PID temperature controller, suitable for various packing materials.
6. Continuous mechanical structure for premade bag sealing process in smooth status.
7. Machine automatically finish the process of bag openning, metering, filling and sealing.
8. Suitable for different shape of premade bag, doypack pouch sealing and packing.
Advantage :
1. Easy to operate,adopt advanced PLC from Japan Mitsubishi, mate with touch screen and electric control system, the man-machine interface is friendly.
2. Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
3. Safety device: Machine stop at abnormal air pressure, heater disconnection alarm
4. The width of the bags could be adjusted by electrical motor.
Technical Specifications:
|
Working position |
eight-working position |
|
Pouch material |
Laminated film PE,PP |
|
Pouch pattern |
stand-up&zipper pouch |
|
Pouch size |
W:100-210mm L:100-350mm |
|
Filling Scope |
10-5000g( The screw attachment is to be changed) |
|
Weight Accuracy
|
Package weight ≤ 100g, with an error≤±2% 100 — 500g,with an error≤±1% ≥500G error≤±0.5% |
|
Speed |
10-45pouches/min(The speed depends on the product status and flling weight)) |
|
Voltage |
380V 3phase 50HZ/60HZ |
|
Total power |
8.5KW |
|
Compress air |
0.6m3/min(supply by user) |
