16 Channels Pharmaceutical Capsule Counter 60bottles/Min
  • 16 Channels Pharmaceutical Capsule Counter 60bottles/Min
  • 16 Channels Pharmaceutical Capsule Counter 60bottles/Min
  • 16 Channels Pharmaceutical Capsule Counter 60bottles/Min

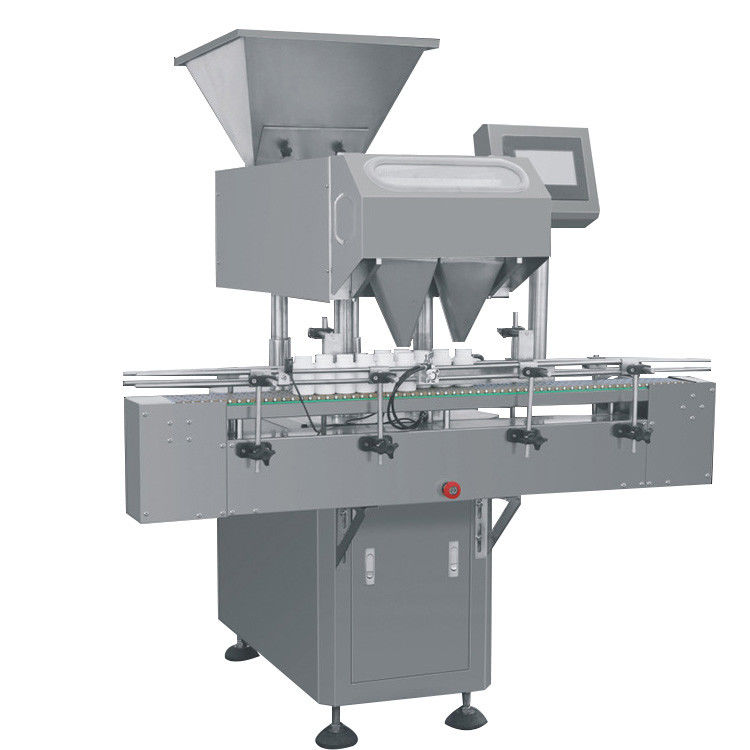

16 Channels Pharmaceutical Capsule Counter 60bottles/Min

Place of Origin China
Brand Name LTPM China
Certification CE, GMP, SGS, BV
Model Number LTEC series
Product Details
220v 50hz Single Phase
Line Length:
High Light:

16 Channels Pharmaceutical Capsule Counter


60bottles/Min Pharmaceutical Capsule Counter


BV Pharmaceutical Capsule Counter

Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Export Standard Wooden Case
Delivery Time
Payment Terms
Supply Ability
Product Description



  • This product is applicable in pharmaceutical, food, health-care industry; it can count accurately and fill round tablet, shaped tablet, capsules, transparent soft gelatin capsules, pill or other solid drug or granular filling into container.
  • High speed. This product has 16 counting channels, 1 filling funnel; the maximum speed reaches 60 bottles per min.
  • The machine would give auto-alarm when the bottles are insufficient or the bottles blocked. The machine would pause there. When the problems are solved, the machine can be normal work status again. It doesn't need certain people to watch it at any time.
  • Key pneumatic parts, especially integrated solenoid valve and cylinder for closing door are from Japan CKD, to ensure filling accuracy
  • You can set the quantity of the drugs (15~9999) on the touch screen. This can monitor the dropping status of drugs on the tracks at any time.


  • According to GMP regulation, parts in contact with medicine material are made of AISI316 stainless steel, machine body made of AISI304 stainless steel. Easy to disassemble, convenient to clean and maintain
  • The machine has several protection devices, during production, no-man watch is possible
  • You just need to change the lifting buttons on the touch screen when changing different height bottles

Feeding unit

Use 3-sep electromagnetic vibrator, frequency is variable, to separate granules rapidly

The 3-sep vibrators avoid granule overlapping

3-step dust collection design, the dust is removed when granules dropped, to avoid dust contamination

Counting unit

Use IR (infrared ray) dynamic scan technology, good counting accuracy

The IR scan eye has automatic light compensation function; limit warning & shutdown function



Main Technical Data
Model LTEC-12 LTEC-16 LTEC-24 LTEC-32
Slide wheel 12 Channels 16 Channels 24 Channels 32 Channels
Size of Object Tablet: φ5-12mm Capsule: 00#-5# all kinds of soft capsule
Size of bottles 20-300ml
The diameter for bottles mouth 20-80mm
Output 4,000pcs/min 6,000pcs/min 8,000pcs/min 10,000pcs/min
Capacity 40bottles/min 60bottles/min 80bottle/min 100bottles/min
Power 0.9KW 0.9KW 1.35KW 1.35KW
Power supply 220V 60HZ
Air pressure 6kgs/c
Overall dimensions(mm) 1700×1700×1900 2000×1700×1900 2800×1700×1900 3200×1700×1900


16 Channels Pharmaceutical Capsule Counter 60bottles/Min 0
