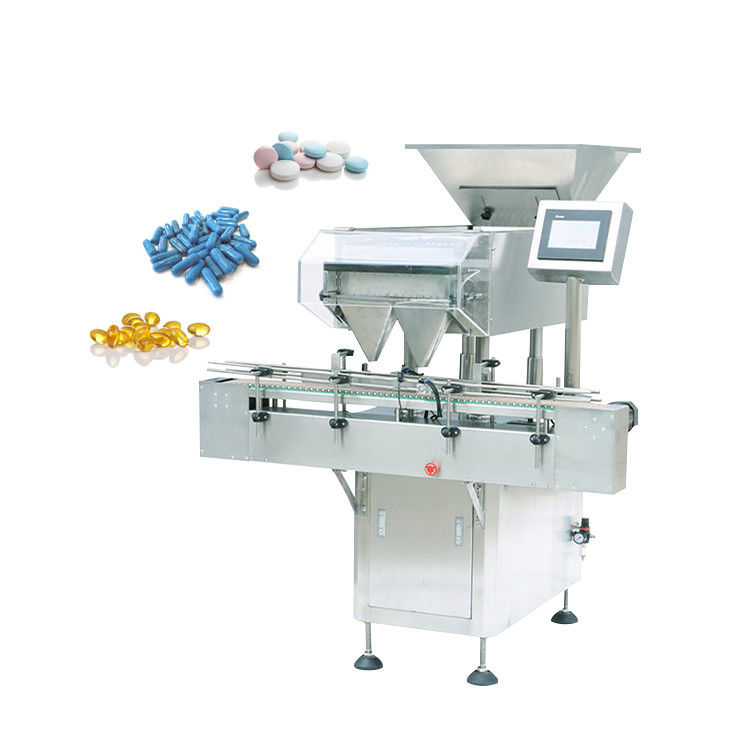

Lightweight Double Heads Automatic Counting Machine 32 Channels 10000pcs/Min
  • Lightweight Double Heads Automatic Counting Machine 32 Channels 10000pcs/Min
  • Lightweight Double Heads Automatic Counting Machine 32 Channels 10000pcs/Min
  • Lightweight Double Heads Automatic Counting Machine 32 Channels 10000pcs/Min

Lightweight Double Heads Automatic Counting Machine 32 Channels 10000pcs/Min

Place of Origin China
Brand Name LTPM China
Certification CE, GMP, SGS, BV
Model Number LTEC series
Product Details
Usage:
Capsule,tablets,gums,rubber,etc.
Power:
220v 50hz Single Phase
Transmission:
Electronic
Capacity:
200000pcs/h
Brand:
LeadTop
Line Length:
Optional
Highlight:

Double Heads Automatic Counting Machine

,

32 Channels Automatic Counting Machine

,

10000pcs/Min Automatic Counting Machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Export Standard Wooden Case
Delivery Time
25days
Payment Terms
T/T,L/C,D/P
Supply Ability
15sets/month
Product Description

Product Application



This capsule counting machine adopts advanced vibration and multi-channel feeder, computer control, dynamic scan counting, transfer the bottle automatically, system test automatically. The machine With Error alarm, Stop automatically function and other advanced technology. This machine designed with GMP standard. Compose the light, electric machinery to one set, which is suitable for tablet or capsule counting and filling in pharmaceutical or food business.



Features

1) Nice appearance, exquisite workmanship, ease operation.



2) Stowage seat and measuring plate are designed as one unit to make measuring plate and stowage rod without deviation phenomenon,avoid friction phenomenon between stowage rod and measuring plate, improve its precision highly, expand the machine's life .



3) Ineligible capsule can be eliminated automatically(qualified rate not included), the medicine in the capsule can be recycled and be reused, increase greatly economic benefit.



4) easy dismantling , installation and clean, different mould can be replaced manually on the same machine



5) Dust collector and vacuum pipe as well as waste air pipe are installed in the inner of the machine , avoid the air pipe becoming hard, broken and leakage , it is more convenient to clean the operating platform. The medicine can not contact with organic material meet the GMP the requirement



6) The cap of stowage rod is made of stainless steel to replace original plastic cap to void breaking phenomenon; decrease the screws and caps on the platform



7)Adopt the PLC,touch screen,the touch screen can set the password.Automatically set the parameter.printing data,etc function Can automatically alarm,automatically stop when the machine encounter a breakdown or lack material,the wearing parts are all imported Add the mold blowing air,sucking air function,insure the mold hole without dust when fill the capsule



Main Technical Data
Model LTEC-12 LTEC-16 LTEC-24 LTEC-32
Slide wheel 12 Channels 16 Channels 24 Channels 32 Channels
Size of Object Tablet: φ5-12mm Capsule: 00#-5# all kinds of soft capsule
Size of bottles 20-300ml
The diameter for bottles mouth 20-80mm
Output 4,000pcs/min 6,000pcs/min 8,000pcs/min 10,000pcs/min
Capacity 40bottles/min 60bottles/min 80bottle/min 100bottles/min
Power 0.9KW 0.9KW 1.35KW 1.35KW
Power supply 220V 60HZ
Air pressure 6kgs/c
Overall dimensions(mm) 1700×1700×1900 2000×1700×1900 2800×1700×1900 3200×1700×1900



Lightweight Double Heads Automatic Counting Machine 32 Channels 10000pcs/Min 0
