16 Channels Tablet Counter Machine Capsule Counter Machine 6000pcs/Min
  • 16 Channels Tablet Counter Machine Capsule Counter Machine 6000pcs/Min

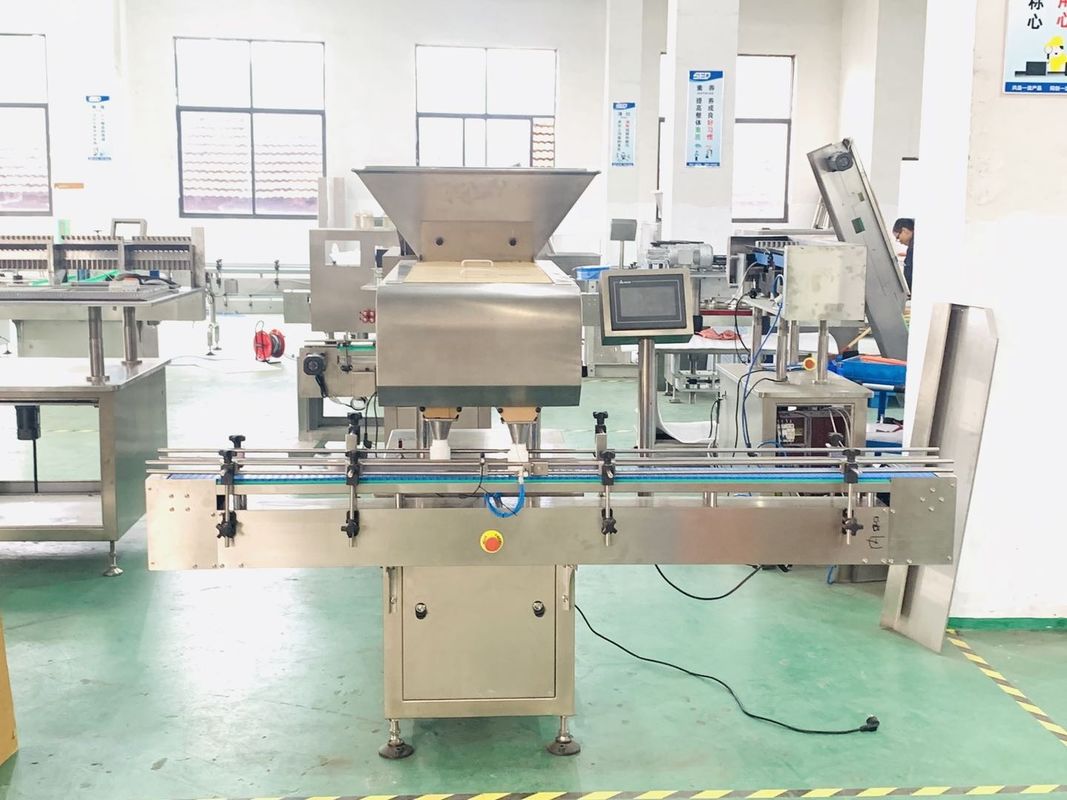

16 Channels Tablet Counter Machine Capsule Counter Machine 6000pcs/Min

Place of Origin China
Brand Name LTPM China
Certification CE, GMP, SGS, BV
Model Number LTEC series
Product Details
Usage:
Capsule,tablets,gums,rubber,etc.
Power:
220v 50hz Single Phase
Transmission:
Electronic
Capacity:
200000pcs/h
Brand:
LeadTop
Line Length:
Optional
High Light:

16 Channels Tablet Counter Machine

,

Capsule Counter Machine 6000pcs/Min

,

SGS Capsule Counter Machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Export Standard Wooden Case
Delivery Time
25days
Payment Terms
T/T,L/C,D/P
Supply Ability
15sets/month
Product Description



FEATURES AT A GLANCE

1. Strong compatibility, high accuracy, wide application range, can count capsules

2. Vibratory feeding, unique patent flap dispensing mechanism does not damage drugs

3. High degree of intelligence, with multiple detection and alarm control functions such as no bottle count, fault self-test, etc.

Digital Automatic Counter

►The number of pills to be counted can be set up among 0-9999

►Stainless steel material for whole machine body, which meets GMP standards.Easy to operate and no special training required.

►Precision pill counting, equipped with special Electrical Eye Protection device.Rotary counting design, with fast and smooth operation.

►The interior of the machine is equipped with deduster to avoid the dust effect to the machine.

►Vibration feeding design, the vibration frequency of the particle hopper can be adjusted with stepless based on the needs of pill output.

Infrared Automatic Counter

►The number of pills to be counted can be set up among 0-200

►Stainless steel material for whole machine body, which meets GMP standards.Easy to operate and no special training required.

►Precision pill counting, equipped with special Electrical Eye Protection device.Rotary counting design, with fast and smooth operation.

►The interior of the machine is equipped with deduster to avoid the dust effect to the machine,

►Vibration feeding design, the vibration frequency of the particle hopper can be adjusted with stepless based on the needs of pill output.



Main Features

  • With touch screen and PLC,operation is very easy
  • Avoid the materials jam
  • Hopper mouth of the special structure, to prevent the materials jam, small mouth bottle can quickly bottling
  • Protect materials from harm
  • Feeding evenly with quiver, special patent filling part, no breakage of the material.
  • Detection and sorting function
  • No bottle will not count and fill. Automatically remove bottles of filling abnormalities and broken tablets.
  • Self-diagnose errors and stop working to make alarm at errors.
  • Anti-dust
  • Using our own original high anti-dust sensor technology, the machine works
  • accurately with good stability in heavy dust conditions.
Main Technical Data
Model LTEC-12 LTEC-16 LTEC-24 LTEC-32
Slide wheel 12 Channels 16 Channels 24 Channels 32 Channels
Size of Object Tablet: φ5-12mm Capsule: 00#-5# all kinds of soft capsule
Size of bottles 20-300ml
The diameter for bottles mouth 20-80mm
Output 4,000pcs/min 6,000pcs/min 8,000pcs/min 10,000pcs/min
Capacity 40bottles/min 60bottles/min 80bottle/min 100bottles/min
Power 0.9KW 0.9KW 1.35KW 1.35KW
Power supply 220V 60HZ
Air pressure 6kgs/c
Overall dimensions(mm) 1700×1700×1900 2000×1700×1900 2800×1700×1900 3200×1700×1900





16 Channels Tablet Counter Machine Capsule Counter Machine 6000pcs/Min 0
