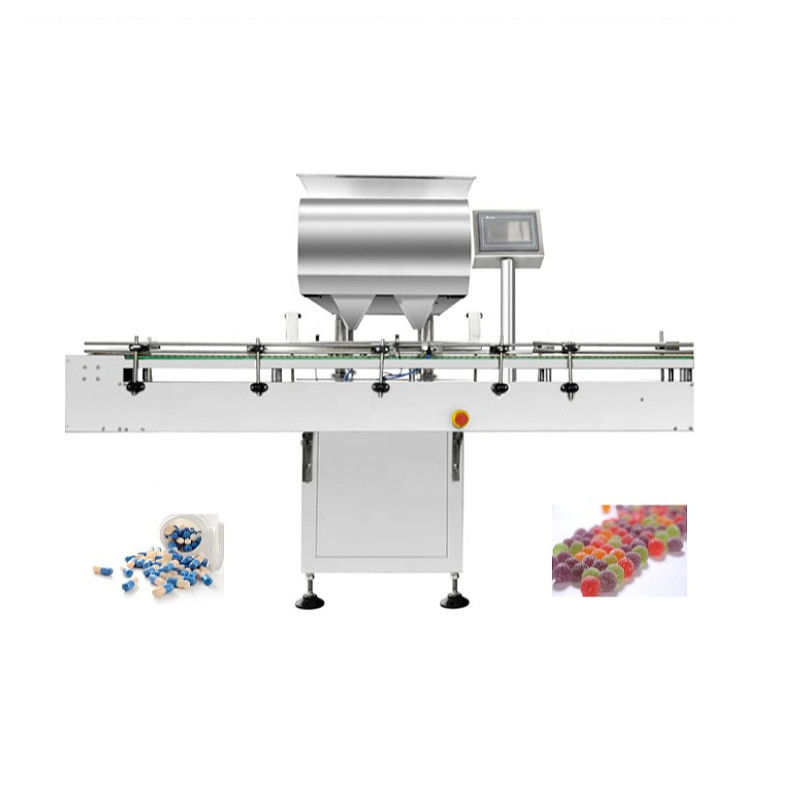

8000pcs/Min Pharmacy Vibrating Capsule Counting Machine 24 Channels
  • 8000pcs/Min Pharmacy Vibrating Capsule Counting Machine 24 Channels
  • 8000pcs/Min Pharmacy Vibrating Capsule Counting Machine 24 Channels

8000pcs/Min Pharmacy Vibrating Capsule Counting Machine 24 Channels

Place of Origin China
Brand Name LTPM China
Certification CE, GMP, SGS, BV
Model Number LTEC series
Product Details
Usage:
Capsule,tablets,gums,rubber,etc.
Power:
220v 50hz Single Phase
Transmission:
Electronic
Capacity:
200000pcs/h
Brand:
LeadTop
Line Length:
Optional
High Light:

Pharmacy Vibrating Capsule Counting Machine

,

24 Channels Capsule Counting Machine

,

8000pcs/Min Capsule Counting Machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Export Standard Wooden Case
Delivery Time
25days
Payment Terms
T/T,L/C,D/P
Supply Ability
15sets/month
Product Description

Description

This machine uses the most advanced anti-high dust electronic counting technology. Tablets (including shaped tablets), hard capsules, soft capsules (transparent, opaque) pellets, and other solid particles ranging in size from 3 to 12 mm can be counted and dispensed. Can be bottled, boxed, bagged. Fully compliant with GMP requirements, especially suitable for research institutions, hospitals, new small pharmaceutical factories, health products factories



Machine Details

(1) Strong compatibility, high accuracy, wide application range, can count and bottle tablets (including shaped tablets), capsules, soft capsules (transparent, opaque) pills

(2) It has strong applicability and adopts the company's original anti-high dust photoelectric sensor technology, which can work stably under the condition of high dust.

(3) Vibratory feeding, unique patent flap dispensing mechanism does not damage drugs

(4) High degree of intelligence, with multiple detection and alarm control functions such as no bottle count, fault self-test, etc.

(5) Fully automatic operation, intelligent joint control with upper and lower processes, good coordination, no need for special operation, saving labor

(6) Small footprint and low cost of use

(7) It is convenient to change the variety, and it is convenient and quick to dismantle the clearing field without any tools.

(8) The structure is exquisite, there is no expensive wearing parts, and the maintenance cost is low.



Machine Details

  • High power photoelectric detection device

Adpoting electronic counting technology of high dust resisitance,still running normally in high dust environment, accuracy rate >99.5%

  • Multi-stage vibration blanking device

Can be used to separate and count the large, irregular and viscous materials effectively.

  • Flip board strcture

The top and bottom closed design obtains the national new patent,dose not damage the material when working.

  • Material

Contact with the material all use 316 stainless steel material

  • Touch screen

Touch screen can be used to set the parameters according to the need.

  • See bottlw photoelectricity eye

Count accurate, do not appear omission phenomenon.

  • The electric appliance

Adopts the world famous brand, the centralized wiring,theconvienience maintenance.

  • Dust collection

Collect poeder centrally to prevent pollution.



Main Technical Data
Model LTEC-12 LTEC-16 LTEC-24 LTEC-32
Slide wheel 12 Channels 16 Channels 24 Channels 32 Channels
Size of Object Tablet: φ5-12mm Capsule: 00#-5# all kinds of soft capsule
Size of bottles 20-300ml
The diameter for bottles mouth 20-80mm
Output 4,000pcs/min 6,000pcs/min 8,000pcs/min 10,000pcs/min
Capacity 40bottles/min 60bottles/min 80bottle/min 100bottles/min
Power 0.9KW 0.9KW 1.35KW 1.35KW
Power supply 220V 60HZ
Air pressure 6kgs/c
Overall dimensions(mm) 1700×1700×1900 2000×1700×1900 2800×1700×1900 3200×1700×1900



8000pcs/Min Pharmacy Vibrating Capsule Counting Machine 24 Channels 0
