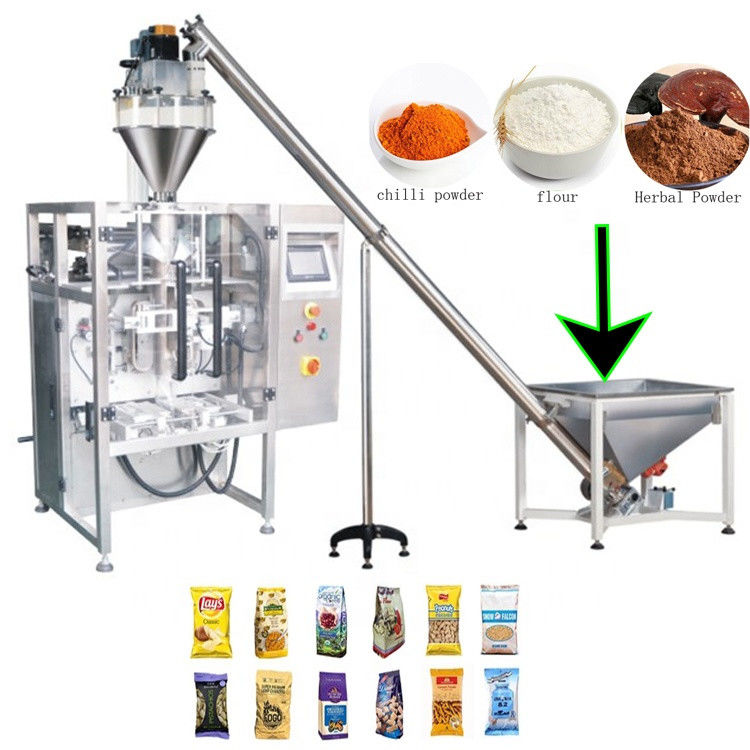

5kg Automatic Detergent Powder Pouch Machine 150mm
  • 5kg Automatic Detergent Powder Pouch Machine 150mm
  • 5kg Automatic Detergent Powder Pouch Machine 150mm

5kg Automatic Detergent Powder Pouch Machine 150mm

Place of Origin Zhejiang Province,China
Certification CE, GMP, SGS, BV
Model Number DXD-Series
Product Details
Pillow Packaging Machine
Max.Film Width:
Max Capacity Of Packing:
20-120 Pcs/ Min
Film Thickness:
Film Thickness
Bag Length:
60-300 ( Do Not Exceed This Size )
Packing Width:
High Light:

5kg detergent powder pouch machine


150mm detergent powder pouch machine


5kg automatic packaging machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
Export Standard Wooden Case
Delivery Time
25 days
Payment Terms
L/C, D/A, D/P, T/T, MoneyGram
Supply Ability
45 sets/month
Product Description

Runxiang 1kg -5kg Bag Automatic Powder Laundry Coffee Milk Washing Detergent Powder Packing Machine

Product Description

Product Application:


This device can finish the work such as measuring, filling, suitable for measuring the liquid or illiquid powder granular materials;

Such as milk powder, protein powder, flour, solid beverage, cocoa powder, chicken powder,sugar, food additives, beverage, pharmaceutical raw materials, dyes, essence, etc.


Main Features:

1 Automatic weighing products,production bags,printing dates,sealing,and packaging are automatically completed at one time.
2 Chinese and English touch screen display, intuitive and simple operation.
3 PLC computer control system,the operation is more stable, and any parameters can be adjusted without stopping.
4 Ten sets of parameters can be stored, and the replacement variety is more accurate.
5 Using servo motor pull, the positioning is more accurate.
6 Independent temperature control system with an accuracy of ±1 °C.
7. The horizontal and vertical sealing temperatures are independently controlled, and can be applied to various packaging materials such as composite film and PE film.
8 Packaging styles are diverse, back seal, gusset, four sides hot, four side seal, standing bag, even bag, punching and so on.
9 The working environment is clean and the noise is small.

This equipment is configured as double transport membrane mechanism: the film resistance is small, the film transport speed is fast, etc.


Equipment process flow:

Turn on the power supply and set the temperature to constant temperature → set the packaging machine parameters

(pocket size and packaging weight) → manual feeding to the storage hopper and vibration feeding to the screw hoist

→ screw meter → packaging machine → print production date → Bag making→filling material→inflating→sealing→packaging→cutting→packaging finished product outputprocess;

Technical Parameters:
Method of Measurement Screw metering
Range of Measurement 10-5000g
Packing Speed 40-80(bag/min)
Bag Size (W):70-350mm (L):70-510mm
Total Power 5.5KW
Voltage 380V or 220V or 110v
Machine Weight 800kg
Machine Size L1478×W1280×H2150mm



Advantage of Vertical Packing Machine:

· PLC controller with touch screen interface

· Servo-driven end seal jaws

· Servo-driven film transport

· Hot printer and film feeding system synchronous

· Quickly changing one-piece bag former

· Eye mark sensor for film tracking

· Stainless steel frame


About Machine:


5kg Automatic Detergent Powder Pouch Machine 150mm 0

5kg Automatic Detergent Powder Pouch Machine 150mm 1
