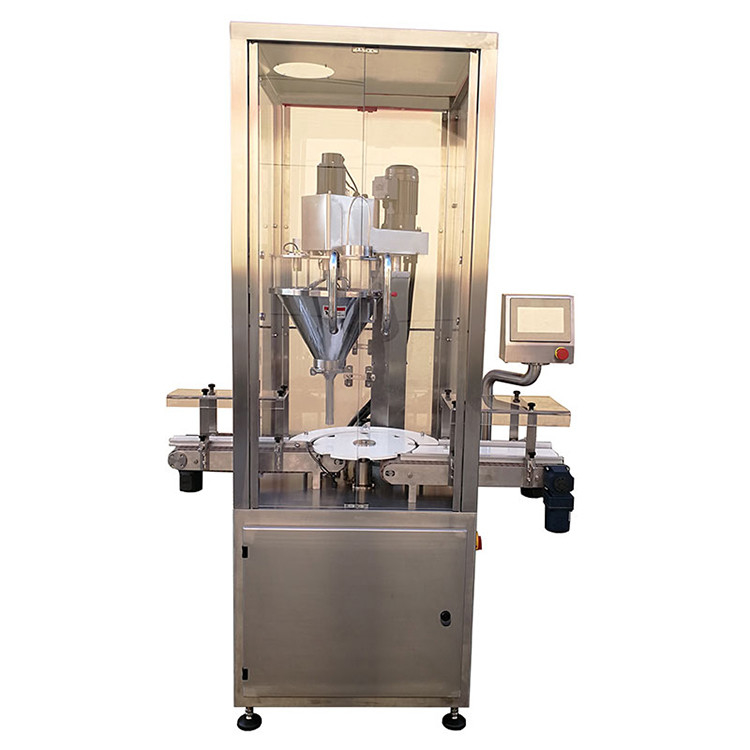

Flour Powder Filling Packing Machine Industrial Powder Auger Filler
  • Flour Powder Filling Packing Machine Industrial Powder Auger Filler
  • Flour Powder Filling Packing Machine Industrial Powder Auger Filler
  • Flour Powder Filling Packing Machine Industrial Powder Auger Filler
  • Flour Powder Filling Packing Machine Industrial Powder Auger Filler
  • Flour Powder Filling Packing Machine Industrial Powder Auger Filler
  • Flour Powder Filling Packing Machine Industrial Powder Auger Filler

Flour Powder Filling Packing Machine Industrial Powder Auger Filler

Place of Origin Zhejiang Province,China
Brand Name LTPM CHINA
Certification CE, GMP, SGS, BV
Model Number SingFill-Series
Product Details
Weight:
350 KG
Packing Weight:
10~5000g
Filling Speed:
20 - 40 Bottles/min
Air Supply:
6 Kg/cm2 0.05m3/min
Voltage:
3P AC208-415V 50/60Hz
Packing Precision:
≤500g, ≤±1%;>500, ≤±0.5%
Overall Dimension:
1840*1070*2420mm
Total Power:
2.3Kw
High Light:

Flour Powder Filling Packing Machine

,

Industrial Powder Filling Packing Machine

,

Powder Auger Filler Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Export Standard Wooden Case
Delivery Time
25 days
Payment Terms
L/C, D/A, D/P, T/T, MoneyGram
Supply Ability
45 sets/month
Product Description

This Machine Is a Complete, Economical Solution To Your Filling Production Line Requirements.Can Measuring And Filling Powder And Granular. It Consists Of The Filling Head, An Independent Motorized Chain Conveyor Mounted On a Sturdy, Stable Frame Base, And All Necessary Accessories To Reliably Move And Position Containers For Filling, Dispense The Required Amount Of Product, Then Quickly Move The Filled Containers Away To Other Equipment In Your Line (e.g., Cappers, Labelers, Etc.).It Fits More To The Fluidic Or Low-Fluidity Materials, Like Milk Powder, Albumen Powder, Pharmaceuticals, Condiment, Solid Drink, White Sugar, Dextrose, Coffee, Agriculture Pesticide, Granular Additive, And So On.

Flour Powder Filling Packing Machine Industrial Powder Auger Filler 0

Machine Parameters
Model
SingFill-1-S
SingFill-1-M
Dosing Mode
Directly Dosing By Auger
Filling Weight
1 - 500g
10 – 5000g
Filling Accuracy
≤ 100g, ≤±2%;100 – 500g, ≤±1%
≤ 500g, ≤±1%; >500g, ≤±0.5%
Filling Speed
15 – 40 Bottles Per Min
Power Supply
3P AC208-415V 50/60Hz
Air Supply
6 Kg/Cm2 0.05m3/Min
Total Power
1.2Kw
1.6Kw
Total Weight
160kg
300kg
Overall Dimensions
1500×760×1850mm
2000×970×2030mm
Hopper Volume
25L(Enlarged Size 35L)
50L(Enlarged Size 75L)



Model
SingFill-1-D100
SingFill-1-D160
Container Size
φ20-100mm, H 15-150mm
φ30-160mm , H50-260mm
Filling Weight
1 – 500g
10 – 5000g
Filling Accuracy
≤ 100g, ≤±2%; 100 – 500g,≤±1%
≤ 500g, ≤±1%; >500g, ≤±0.5%
Filling Speed
20 - 40 bottles/min
20 - 40 bottles/min
Power Supply
3P AC208-415V 50/60Hz
3P AC208-415V 50/60Hz
Air Supply
6 kg/cm2 0.05m3/min
6 kg/cm2 0.05m3/min
Total Power
1.8Kw
2.3Kw
Total Weight
250kg
350kg
Overall Dimensions
1400×830×2080mm
1840×1070×2420mm
Hopper Volume
25L(Enlarge Size 35L)
50L(Enlarged Size 65L)



Flour Powder Filling Packing Machine Industrial Powder Auger Filler 1
This Type Can Do Measuring And Filling Work. Due To The Special Professional Design, It Is Suitable For The Fluidic Or Low-Fluidity Materials, Like Milk Powder, Albumen Powder, Rice Powder, Coffee Powder, Solid Drink, Condiment, White Sugar, Dextrose , Food Additive, Fodder, Pharmaceuticals, Agriculture Pesticide, And So On.


Features

1. The Split Hopper Could Be Washed Easily Without Tools.
2. Servo Motor Drive Screw.
3.Stainless Steel Structure,Contact Parts Ss304
4.Include Handwheel Of Adjustable Height.
5.Replacing The Auger Parts, It Is Suitable For Material From Super Thin Powder To Granule.
Flour Powder Filling Packing Machine Industrial Powder Auger Filler 2
Air Holes
Flour Powder Filling Packing Machine Industrial Powder Auger Filler 3
Observation Glass
Flour Powder Filling Packing Machine Industrial Powder Auger Filler 4
Feeding And Stirring
Flour Powder Filling Packing Machine Industrial Powder Auger Filler 5
Feeding Port
Flour Powder Filling Packing Machine Industrial Powder Auger Filler 6
Feeding Motor
