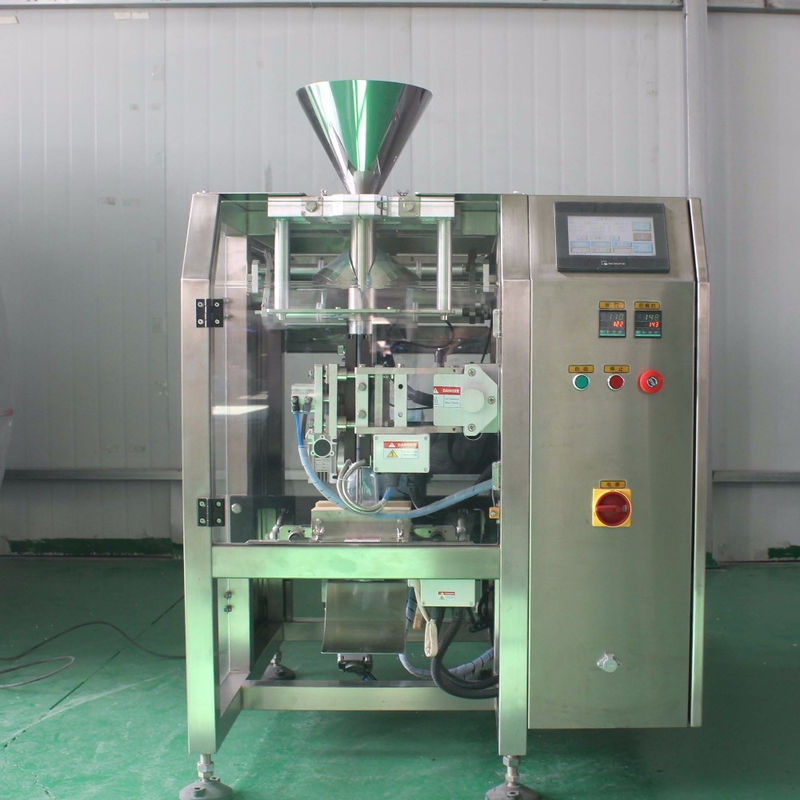

VFFS Automatic Powder Bagging Machine Packing Equipment 5000g
  • VFFS Automatic Powder Bagging Machine Packing Equipment 5000g
  • VFFS Automatic Powder Bagging Machine Packing Equipment 5000g

VFFS Automatic Powder Bagging Machine Packing Equipment 5000g

Place of Origin Zhejiang Province,China
Brand Name LTPM CHINA
Certification CE, GMP, SGS, BV
Model Number RotaTop-Series
Product Details
Working Position:
Eight-working Position
Pouch Material:
Laminated Film PE、PP
Pouch Pattern:
W:100-210mm L:100-350mm
Filling Scope:
10-5000g( The Screw Attachment Is To Be Changed)
Speed:
10-45 Pouches/min(The Speed Depends On The Product Status And Flling Weight))
Voltage:
380V 3phase 50HZ/60HZ
High Light:

5000g powder bagging machine

,

VFFS powder bagging machine

,

VFFS powder packing equipment

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Export Standard Wooden Case
Delivery Time
25 days
Payment Terms
L/C, D/A, D/P, T/T, MoneyGram
Supply Ability
45 sets/month
Product Description

New Product Automatic Packing Machine Vertical Powder Packing Machine Small VFFS Packing Machine

Machine introduction:

General Description new product Automatic Packing Machine vertical powder packing machine small VFFS packing machine



l All the work of bag making, measuring, material filling, sealing, counting and code printing can be done automatically.

l Photoelectric and tracing system or PLC system can be provided without your specific requirements. The PLC controller has the advantages such as setting the length of the bag, the output alarm and the speed and quantity with buttons.

l Print automatically the 1-3 lines code and shelf life with ink wheel code printer Paper /PE, PT/PE, PET/plated AL/PE, PET/PE, BOPP film, tea-leaf filtering paper and other heatable sealed laminates films etc. This series of machine were designed for the automatic package of non-sticky powder,granular materials in foodstuff and pharmacy such as coffee,salt,sugar,plant seeds,drier and etc.





Main function:

1. Automatically check pouch open status, it will not fill and seal when pouch is not opened fully. It avoids the wasting of pouch and raw material and save cost.

2. Machine working speed can be adjusted continuously with frequency converter

3. SIEMENS PLC adopted, the control system is easy to operated with friendly HMI interface.

4. Machine will alarm when the air pressure is abnormal and stop working with overload protect and safety device.

5. Machine can work with dual-fill, filling with two types of material, such as solid and liquid, liquid and liquid.

6. Machine can work with pouch width range from 100-200mm, by adjusting the width of clips.

7. Adopting advanced bearing, where no need to add oil and less pollution for product.

8. All the product and pouch contact parts are made with stainless steel or the material according with the food hygienic requirements, guarantee hygiene and security of the food.

9. Rotary packing machine can work with different filler to pack solid, powder and liquid.

10. With pre-made pouch, the pattern and sealing on the pouch is perfect. The finished product looks advanced.

11. Machine can work with complex film, PE, PP material premade pouch and paper bag.



Technical Parameters:

Method of Measurement Cup type



Range of Measurement

5-330ml

5-80ml (Six cups on double trays)

50-330ml ( Four cups on double trays)

0-5ml (fixed cup on single tray )



Packing Speed

20-40(bag/min)

30-50(bag/min)

40-60(bag/min)



Bag Size

(W):30-120mm

(L):30-155mm

Bag size can be lengthened according to customer requirement

Total Power 1600W
Voltage 380V or 220V or made accordingly
Machine Weight 250kg
Machine Size 930x730x1700mm



VFFS Automatic Powder Bagging Machine Packing Equipment 5000g 0



About Machine's Detail:

VFFS Automatic Powder Bagging Machine Packing Equipment 5000g 1

VFFS Automatic Powder Bagging Machine Packing Equipment 5000g 2



VFFS Automatic Powder Bagging Machine Packing Equipment 5000g 3

VFFS Automatic Powder Bagging Machine Packing Equipment 5000g 4
