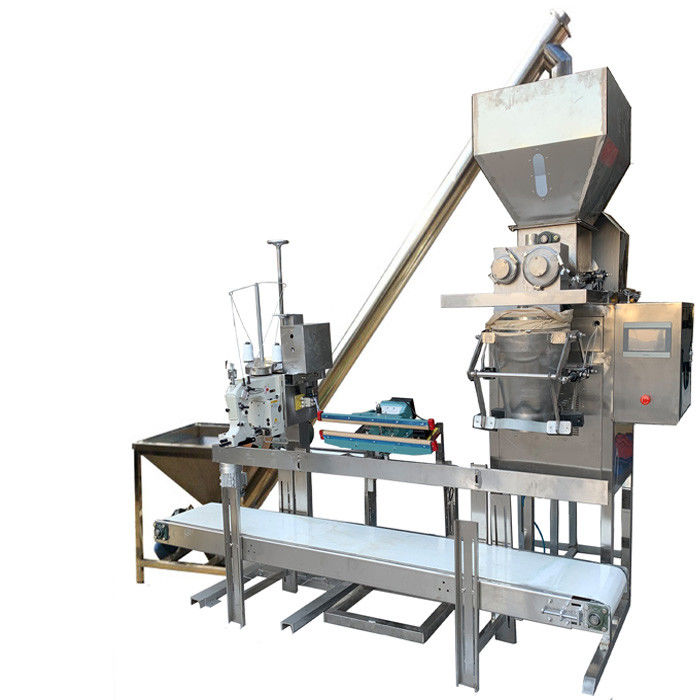

220V 50HZ Tea Bag Filling Machine 25Kg Grain Packaging Machine
  • 220V 50HZ Tea Bag Filling Machine 25Kg Grain Packaging Machine
  • 220V 50HZ Tea Bag Filling Machine 25Kg Grain Packaging Machine

220V 50HZ Tea Bag Filling Machine 25Kg Grain Packaging Machine

Place of Origin ZheJiang,China(Mainland)
Brand Name LTPM CHINA
Certification CE
Model Number LT-350K
Product Details
Bundling Speed:
15-25bags/min(depend On Case Size)
Bundling Size:
Max:240*150*300 MM Min:50*60*90MM
Package Size:
PE Width:30-80 MM Thickness: 30-80 MM
Power Supply:
220 V/50HZ
Total Power:
1.5 KW
Air Pressure:
0.6-08MPa
Weight:
500KG
Transportation Size:
1300*250*800MM
Machine Size:
1100*800*1600MM
High Light:

25Kg tea bag filling machine

,

220V 50HZ tea bag filling machine

,

25Kg grain packaging machine

Payment & Shipping Terms
Minimum Order Quantity
1Set
Price
USD 18,000 -20,000 Per Set
Packaging Details
packed into Export Standard Wooden case which can afford long time Sea shipment and anti-moisture function.
Delivery Time
30 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
25 Sets per month
Product Description



Automatic Bag Bean Powder 25 Kg Powder Packing Machine With Touch Screen



Automatic bag bean powder 25 kg powder packing machine with touch screen



Product Description:



Automatic bag bean powder 25 kg powder packing machine with touch screen

The semi-automatic filling and packaging machine can automatically complete the measurement, filling and so on. Designed according to national GMP standards, it is suitable for packaging powdery materials that are easy to flow or have poor fluidity, such as milk powder, milk tea, feed, rice flour, flour, solid beverage, glucose, rice flour, washing powder, solid medicine , pesticides, fertilizers, powdered additives, dyes, etc.



The packaging scale adopts the gross weight weighing method, which is mainly composed of a feeding device, a metering device, a scale frame, a bag-holding device and so on.

1. Function: electronic sensor weighing, PLC.

2.Action Process: The material in the auxiliary silo is transported by the horizontal screw to ensure that the dust is not leaked to the maximum extent; the horizontal screw is designed with a sandwich set to ensure that the material generated when the material falls into the package is reversed through the interlayer. Then, it falls into the packaging bag under the action of the gravity of the material itself, so as to prevent the material from running into the air through the gap of the bag holder; the outside of the bag holder is additionally equipped with a dust removing port, which will run out from the gap between the bag mouth and the bag holder. A very small amount of dust is collected from the dust collector and filtered. The cut-off door is installed on the discharge opening of the vertical trough, when the weighing is finished, the cut-off door is automatically closed to prevent the material from dripping and affecting the accuracy. Automatic start, automatic peeling, automatic air volume compensation. If the weight of the material in the bag is too poor, the packaging machine will give an alarm.

3. The weighing PLC should have calibration, automatic tracking of zero point, peeling and other functions. The operator issues commands through the buttons on the weighing control cabinet and the function can be determined according to the weighing process status and adjusted by the pumping check calibration (platform scale with indexing value ≤ 50g).

4. Power Failure Protection: with power-off protection function, after a sudden power failure, the system will automatically save the state, and the material door will return to the initial state, which will not cause material overflow and blockage.

5. Data transfer between the weighing control cabinet and the RIO can be done via a serial connection (RS485).

6. The handler software includes user dialogs (process and configuration parameters, test and inspection methods, etc.), weighing data control, process monitoring, fault detection and signaling systems.

7. The arc door feeding mode is divided into fast and slow feeding mode.

8. There are class, Nissan, and cumulative production information automatic storage functions.

9. Bag type: woven bag, polypropylene plastic bag, etc

10. Equipment Operating Conditions:

Operating Time: 8000 hours / year

Ambient Temperature: 10-40°C



Technical Parameters:

Packing Machine Technical Parameters
Model JY-F25 JY-F1
Packaging range 5kg-25kg 20-50kg 1g-2500g 1kg-10kg
Packing speed 120-240 bags / hour 200-1200 bags / hour
Dimensions 830*1150*2600 800* 830 *1900
Power supply AC380•50HZ 4.22KW AC380•50HZ 0.9KW
Control method Touch screen Singlechip / Touch screen
Weighing error ±0.2-2% ±1%



The above product information is for reference , according to the material properties (size, shape, fluidity, dust), speed, accuracy, specifications, output, etc., choose the appropriate model, please consult the sales staff first.

Hoist:

1.Used in conjunction with the packaging machine, controlled by the packaging machine.

2.Set with a return switch for easy cleaning.

3.Silo is equipped with a vibrator, and the feeding is smoother.

4.Technical Parameters:

Hoist Technical Parameters
Model JY-F25 JY-F1
Pipe diameter 159mm 114mm
Standard Delivery Rate 2-5t/h 0.5-3t/h
Lifting Height 2600mm(can be customized) 1600mm (can be customized)
Dimensions 2500*800*2900 2300 *800 ×*2100
Silo Capacity 100-300kg 100-300kg
Power Supply AC380V•3KW AC380V•1.1KW





FAQ:



1.Q:How to order?

A:Step1,please tell us what kind of materail do you want to pack,what kind of machine material do you need and the output per hour/day;

Step 2,then we will make a quote and PI for you to confirm the order detail;

Step 3,when we confirmed everything,can arrange the payment;

Step 4,finally we deliver the machine within the stipulated time.

2.Q:When will make delivery?

A:Delivery time:10 to 15 days after pay the deposit.

3.Q:After -sales Service

The warranty period is one year.Ensure that the goods supplied meet the quality specifications and performance of the contract in all respects.Ensure that the equipment has been properly installed and adjusted to meet the contractual requirement after the entire system is in operation.Provide quantitative packaging scales with advanced design and excellent materials. The main components are selected from famous domestic and foreign manufacturers.If the quality or specification of the goods is found to be inconsistent with the contract, or the goods are defective, the buyer has the right to exchange the parts and return goods.



About our production:

220V 50HZ Tea Bag Filling Machine 25Kg Grain Packaging Machine 0

220V 50HZ Tea Bag Filling Machine 25Kg Grain Packaging Machine 1
