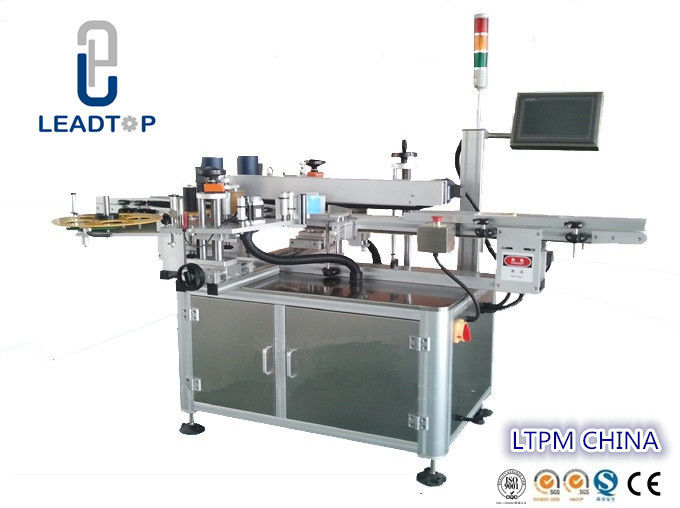

800W 60HZ Automatic Labelling Machine
  • 800W 60HZ Automatic Labelling Machine
  • 800W 60HZ Automatic Labelling Machine

800W 60HZ Automatic Labelling Machine

Place of Origin China
Brand Name LTPM China
Certification CE, GMP
Model Number MT
Product Details
Label Speed:
≤35 M/min
Label Specifications:
Glassine Backing Paper , Opaque Label (The Application Of Carton Can Be Customized According To Customer’s Demand)
Power Supply:
AC220V 50/60HZ Single Phase
High Light:

800W 60HZ Automatic Labelling Machine

,

LTPM Automatic Labelling Machine

,

800W automatic round bottle labeling machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Export standard wooden case
Delivery Time
25days
Payment Terms
L/C, T/T
Supply Ability
25sets/month
Product Description

Product Description

1.can be applied to the round and square bottle labeling of industries such as pharmacy , food , daily chemical and the like.

2.Optional automatic rotary bottle uncrambler machine, can be directly connected to the front production line, automatic bottle feeding into the labeling machine, increase efficiency

3.It can be equipped with ribbon printer machine, which can print production date and batch number on line, reduce the packaging process of bottle and improve production efficiency.



Specification

1) Control system: SIEMENS/Panasonic/Vigor PLC control system, with stable operation and extremely low failure rate.



2) Operation system: Intelligent touch screen, directly visual interface easy operation, with Chinese and English language, also rich with help function and fault display function.



3) Labeling system: The whole labeling engine use German Avery brand , only SKILT with this kinds labeling engine in China, with rather high Competitive Advantage;



4) Alarm function: Such as label spill, label broken or other malfunction during machine working all will alarm and stop working.



5) Machine Material: Machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust.



6) Optional function : Zebra Print Apply system on-line / Multi-label applicator



Application

It is suitable for labeling round bottles such as PET bottles, plastic bottles, glass bottles and metal bottles. widely used in cosmetic, beverages, food, medicine and other industries, greatly improving productivity and labeling quality.



Specifications:

The standard system Servo Motor
Capacity 20-130 carton/min
Operating Direction Left or right
Label speed ≤35 m/min
Tags volume inner diameter 76 mm
Tags volume outer diameter 350 mm (max)
Label Specifications Glassine backing Paper , opaque label (The application of carton Can be customized according to customer’s demand)
Labeling accuracy ±1.0mm (subject to the roughness of the plane)
Weight 200KGS
Total motor power 800W
Power supply AC220V 50/60HZ Single phase
Size appearance (mm) 2200 (L) 1800 (W) 1500(H)


800W 60HZ Automatic Labelling Machine 0

800W 60HZ Automatic Labelling Machine 1
800W 60HZ Automatic Labelling Machine 2

800W 60HZ Automatic Labelling Machine 3

800W 60HZ Automatic Labelling Machine 4
