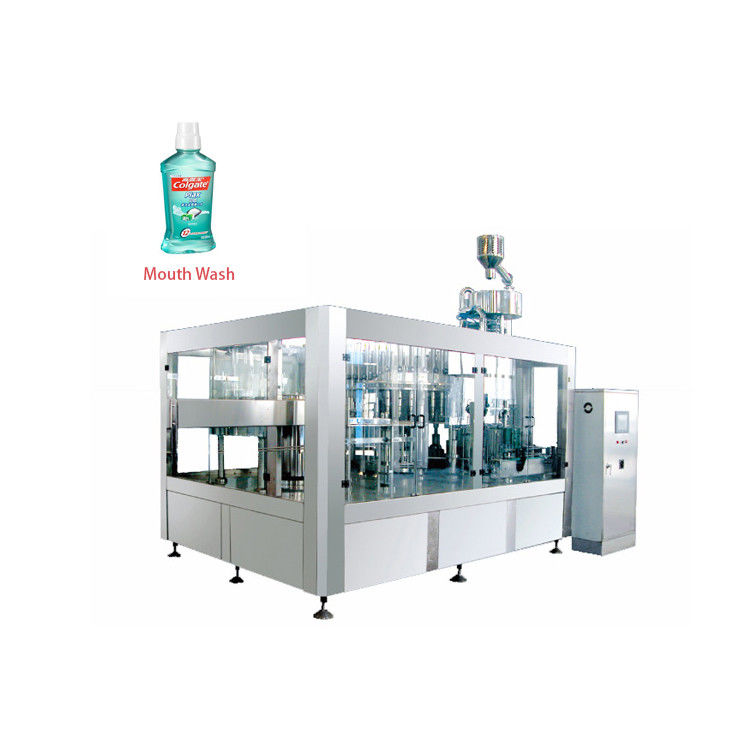

LTXG Glass Plastic Bottle Packing Machine 3kw Washing Part

Place of Origin China
Brand Name LEADTOP
Certification CE certification
Model Number LTXG-2/1
Product Details
Model:
LTXG-2/1
Range:
5ml-100ml
Speed:
30-40bottles/minute
Measurement Precision:
±1%
Net Weight:
700kg
Contour Sizes:
2400×1640×1580mm
Weight:
Depend On Size
Packaging Type:
Case
High Light:

LTXG plastic bottle packing machine

,

3kw plastic bottle packing machine

,

3kw glass bottle packing machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
discuss personally
Packaging Details
wooden box
Delivery Time
25days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
25 days/month
Product Description

This unit is a combined multi-functional unit that integrates washing, filling and capping. It is one of the most ideal small and medium-sized beverage machinery equipment in China. The whole machine adopts advanced man-machine interface operation, PLC control, variable frequency stepless speed regulation and other automatic control technology. It has automatic shutdown at low temperature, automatic control of feeding and returning, with no bottle and no cover, bottle waiting, bottle bottle stop, The cover is automatically closed when the cover is not closed.



Four Part Of Machine:
1.Washing Part,
2.Filling part,
3.Capping part
4.Star wheel part.


The height of the bottle washing machine ,filling machine and cap screwing machine has been adjusted before they are carried out of the factory. They can suitable for different sizes bottles in the designing scale. Empty bottles are conveyed to the bottle washing machine with air conveying system through bottle entering spider .The bottle will turn up 180o ---washing bottle ----dropping water –bottle turn up 180o ,the bottle mouth is upward .The bottle is carried to the filling machine through transferring spider and settle down at the part of bayonet of bottle mouth of the filling machine. .And it switches with the filling valve. If there is a bottle ,the filling begins .If there is not a bottle , the valve closes. After the filling ends, the filled bottle is carried to the cap screwing machine through the transferring spider of the work table of the cap screwing machine .The capped bottle is conveyed to the next process (equipment) with the bottle exiting spider through the exhaust bottle belt.



Technical parameters:

Capacity
2500BPH (500ml)
Bottle Height
150~310mm
Bottle Diameter
50~96mm(diameter)
Bottle Type
PET bottle
Cap
HDPE Cap
Washing Head
8
Washing Capacity
1000kgs/hour
Washing Pressure
0.2-0.4Mpa
Filling Heads
8
Capping Heads
3
Rated Voltage
220V/380V,50/60HZ, 3 phase
Main Motor Power
1.5kw
Total Motor Power
3kw
Overall dimension
2000*1800*2100mm
Weight
1800Kg



Machine Details:

LTXG Glass Plastic Bottle Packing Machine 3kw Washing Part 0LTXG Glass Plastic Bottle Packing Machine 3kw Washing Part 1LTXG Glass Plastic Bottle Packing Machine 3kw Washing Part 2LTXG Glass Plastic Bottle Packing Machine 3kw Washing Part 3LTXG Glass Plastic Bottle Packing Machine 3kw Washing Part 4
