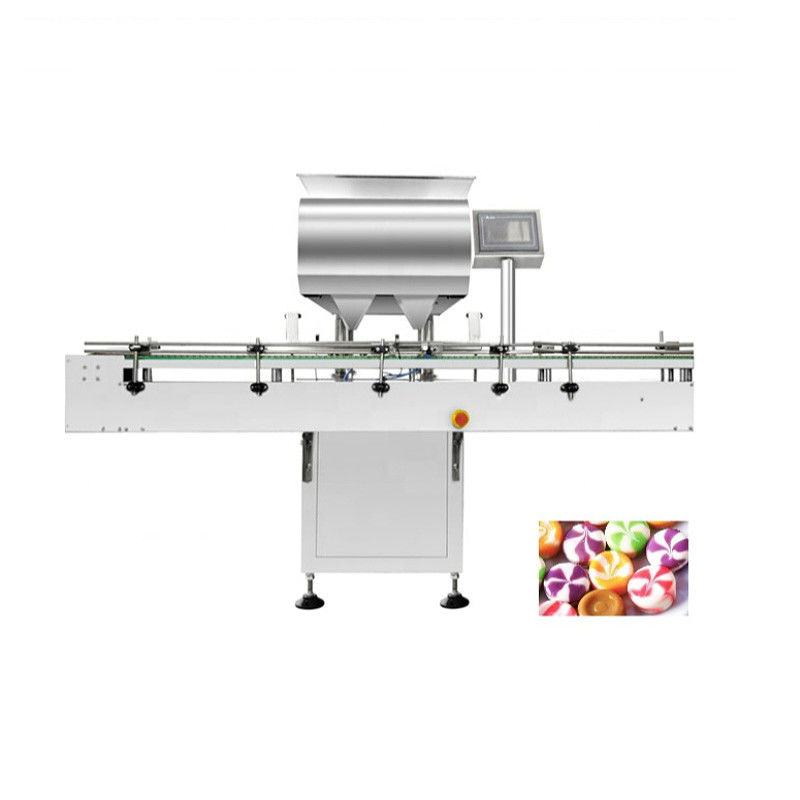

LTEC 32 Capsule Counting Machine 220V 60HZ Automatic Tablet Counting Machine
  • LTEC 32 Capsule Counting Machine 220V 60HZ Automatic Tablet Counting Machine

LTEC 32 Capsule Counting Machine 220V 60HZ Automatic Tablet Counting Machine

Place of Origin China
Brand Name LTPM China
Certification CE, GMP, SGS, BV
Model Number LTEC series
Product Details
Usage:
Capsule,tablets,gums,rubber,etc.
Power:
220v 50hz Single Phase
Transmission:
Electronic
Capacity:
200000pcs/h
Brand:
LeadTop
Line Length:
Optional
High Light:

LTEC 32 capsule counting machine

,

220V 60HZ capsule counting machine

,

220V 60HZ automatic tablet counting machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Export Standard Wooden Case
Delivery Time
25days
Payment Terms
T/T,L/C,D/P
Supply Ability
15sets/month
Product Description

Simple Instruction



The machine delivers medicine smoothly and evenly in three classes of vibration. It adopts the most advanced international CCD sensitive technology, which has high resolution to make up disadvantages of common photoelectric devices many domestic manufacturers use. CCD can counteract dust accumulated on the fluorescent screen and adjust work state automatically to ensure accuracy of counting. Its air regulator ensures reliability and stability of pneumatic components in work. Self-diagnostic system monitors the whole running process of the equipment to further guarantee correctness of counting. The machine also has inspection function that can detect broken medicine. The machine not only has reliable running but fast and easy changeover. Its control system can store working parameters of various medicaments and its human machine interface is user-friendly. Generally operators can grasp fluently.



Feature:



(1)Strong compatibility,It can count and bottle various kind of solid preparation or sol solid granules for example,tablet (including heteromorphism tablet), capsule, soft capsule(transparent and non-transparent), pill etc.

(2)Vibration cutting: Channel vibration under homogeneous materials, unique patent agencies blanking, and turning out material is steady, not damage

(3)Highly Anti-dust :Adopting the anti high dust photoelectric sensing technology only developed by our company, it also can work stably under the high dust circumstance.

(4)Correct counting : With automatic photoelectric sensor counting, the error of bottling is less than nation standard.

(5)Special structure of the discharge spout, can prevent blocking drugs, small bottle can fast bottling (optional)

(6)High intelligence: It has various alarms and control functions like no bottle no count, check fault automatically and so on.



Main Technical Data
Model LTEC-12 LTEC-16 LTEC-24 LTEC-32
Slide wheel 12 Channels 16 Channels 24 Channels 32 Channels
Size of Object Tablet: φ5-12mm Capsule: 00#-5# all kinds of soft capsule
Size of bottles 20-300ml
The diameter for bottles mouth 20-80mm
Output 4,000pcs/min 6,000pcs/min 8,000pcs/min 10,000pcs/min
Capacity 40bottles/min 60bottles/min 80bottle/min 100bottles/min
Power 0.9KW 0.9KW 1.35KW 1.35KW
Power supply 220V 60HZ
Air pressure 6kgs/c
Overall dimensions(mm) 1700×1700×1900 2000×1700×1900 2800×1700×1900 3200×1700×1900
