LTEC Automatic Counting Machine Pill SGS Electronic Capsule
  • LTEC Automatic Counting Machine Pill SGS Electronic Capsule
  • LTEC Automatic Counting Machine Pill SGS Electronic Capsule

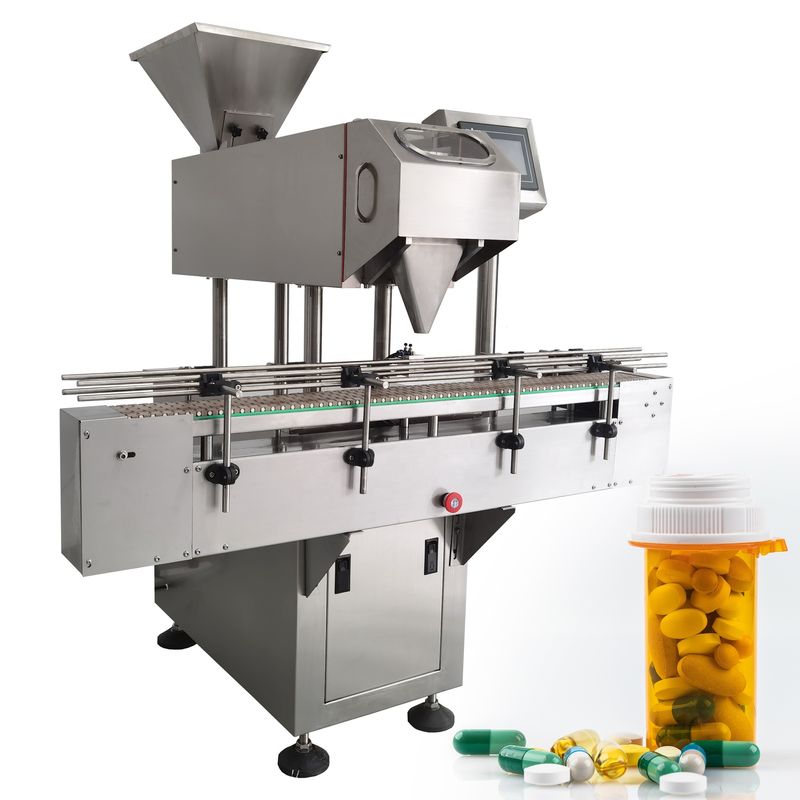

LTEC Automatic Counting Machine Pill SGS Electronic Capsule

Place of Origin China
Brand Name LTPM China
Certification CE, GMP, SGS, BV
Model Number LTEC series
Product Details
Model:
LTEC-16
Usage:
Capsule,tablets,gums,rubber,etc.
Power:
220v 50hz Single Phase
Transmission:
Electronic
Capacity:
200000pcs/h
Brand:
LeadTop
Line Length:
Optional
High Light:

SGS Automatic Counting Machine

,

LTEC Automatic Counting Machine

,

SGS pill counting machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Export Standard Wooden Case
Delivery Time
25days
Payment Terms
T/T,L/C,D/P
Supply Ability
15sets/month
Product Description



This machine uses the most advanced anti-high dust electronic counting technology. Tablets (including shaped tablets), hard capsules, soft capsules (transparent, opaque) pellets, and other solid particles ranging in size from 3 to 12 mm can be counted and dispensed. Can be bottled, boxed, bagged. Fully compliant with GMP requirements, especially suitable for research institutions, hospitals, new small pharmaceutical factories, health products factories

Main Feature

(1) It has strong compatibility, and can count and bottle solid preparations or solid particles such as tablets (including shaped tablets), capsules, soft capsules (transparent, opaque), pills;

(2) Vibrating blanking: 24 channels of vibration uniform feeding, special patented laminating mechanism, material discharge, uniform and stable discharge, no damage to drugs;

(3) Anti-high dust: It adopts the company's original anti-high dust photoelectric sensor technology, which can work stably in the case of high dust;

(4) Accurate counting: photoelectric sensor automatically counts, the bottling error is less than the national standard;

(5) The special structure of the leaking nozzle can prevent the drug from being blocked, and the small bottle with the bottle mouth can also be quickly bottled (optional)

(6) High degree of intelligence, with multiple detection and alarm control functions such as no bottle count, fault self-test;

(7) Function matching: automatic detection of bottleless photoelectric sensor, automatic shutdown

(8) Simple operation: intelligent design, various operating parameters are set as needed

(9) Convenient maintenance: the operator can operate with simple training, and it is simple and convenient to disassemble, clean and replace parts, without tools

(10) Sealed and dustproof: Configure the dust box to reduce dust pollution (optional).

Main Specifications

Electronic counting machine (wide channel , three step vibration)

Applicable bottle type: round, square plastic bottle

Filling the object: 000~5# capsule, soft capsule, Φ5.5~25 plain tablets, shaped tablets, sugar-coated tablets, Φ3~25 pills

Production capacity: 20 ~ 90 bottles / minute (related to bottle specifications, loading, drug specifications)

Bottle capacity setting range: 2-9999

Power and power: AC220V 50Hz 1.5kw

Accuracy: >99.5% (better than industry standards)

Air source: 0.6Mpa

Dimensions: 1760 * 1650* 1650mm

Weight: 580kg

Main configuration List

NO. Name Manufacturer
1 Motor TQG (Taiwan)
2 Look at the bottle photoelectric eye Matsushita, Japan
3 Counting light head Taiwanese billion light
4 Pneumatic Components Shanghai Star
5 Emergency stop switch Schneider
6 HMI Taiwanese Delta
7 Master chip Imported British ARM Electronics
8 Switching power supply Schneider



LTEC Automatic Counting Machine Pill SGS Electronic Capsule 0
