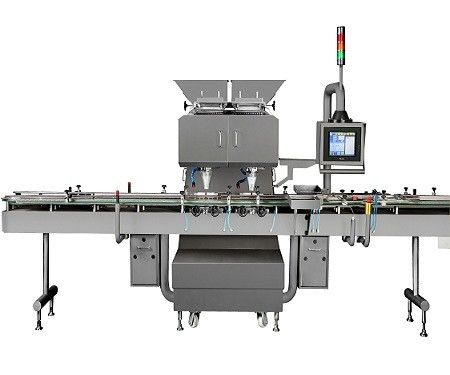

LTEC 12 Automatic Counting Machine Tablet GMP Multi Channel
  • LTEC 12 Automatic Counting Machine Tablet GMP Multi Channel
  • LTEC 12 Automatic Counting Machine Tablet GMP Multi Channel

LTEC 12 Automatic Counting Machine Tablet GMP Multi Channel

Place of Origin China
Brand Name LTPM China
Certification CE, GMP, SGS, BV
Model Number LTEC series
Product Details
High Light:

LTEC 12 Automatic Counting Machine

,

GMP Automatic Counting Machine

,

GMP automatic tablet counting machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Export Standard Wooden Case
Delivery Time
25days
Payment Terms
T/T,L/C,D/P
Supply Ability
15sets/month
Product Description



Electronic automatic tablet counter with Multi 12 Channel and Omron System



Quick Detail:



LTEC-12 Multi channel Counting machine with vibrating function

Passed CE Certification up to GMP Standard

Newly Developed Software Controlling System suitable for different batch of production

It needs no changing parts while switch product size.





Introduction:



The device for intelligent high precision automatic capsule counting machine, new patented capsule grain number device can automatically any (even, odd, prime number accurate number grain filling bottle. The novel structure has the advantages of small volume, stable operation low noise, is the small and medium-sized pharmaceutical companies, health care products factory, hospital preparation room, the ideal automatic counting in bottle equipment.

LTEC 12 Automatic Counting Machine Tablet GMP Multi Channel 0

Characteristic:



1: Vertical track compensation type count (patented technology), the number of grain accuracy can be almost 100%, to avoid the traditional vibration or rotary type of the error of the number of large error.



2: Vertical track compensation technology (patent) count in the same types of capsule can achieve rapid setting any number of bottling capsule number, no need to replace the mold is very fast and convenient.



3: The host uses frequency conversion speed control can realize the soft start speed

adjustment is sensitive and reliable and can bear the big starting torque.



4: The bottle conveying belt type, for the customer after the connection of the connection can be fast connection Auxiliary equipment (machine, capping machine, etc.).







Applications:



    wide application and use of the Company's original anti-dust photoelectric detection of high technology, can count Tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque), pill count to bottling;

LTEC 12 Automatic Counting Machine Tablet GMP Multi Channel 1



Specifications:



Model Name LTEC-12
Application

Filled capsule(00-5#)

Soft Gelatin capsule

chewing gum

tablet

other solid object under machine range

Hopper Volume 40L
Capacity 10-50bottles/min
Filling Quantity 10-9999pcs/bottle (adjustable)
Bottle Size

Diameter: 30-75mm

Height:40-250mm

Counting Size

Thickness: 3-10mm

Diameter: 3-15mm

Length: 3-25mm

Compressed air 0.5Mpa
Conveyor Belt Length 2400mm
Machine Weight 650kg
Machine Size L × W × H (mm) 1450 × 1100 × 1400
