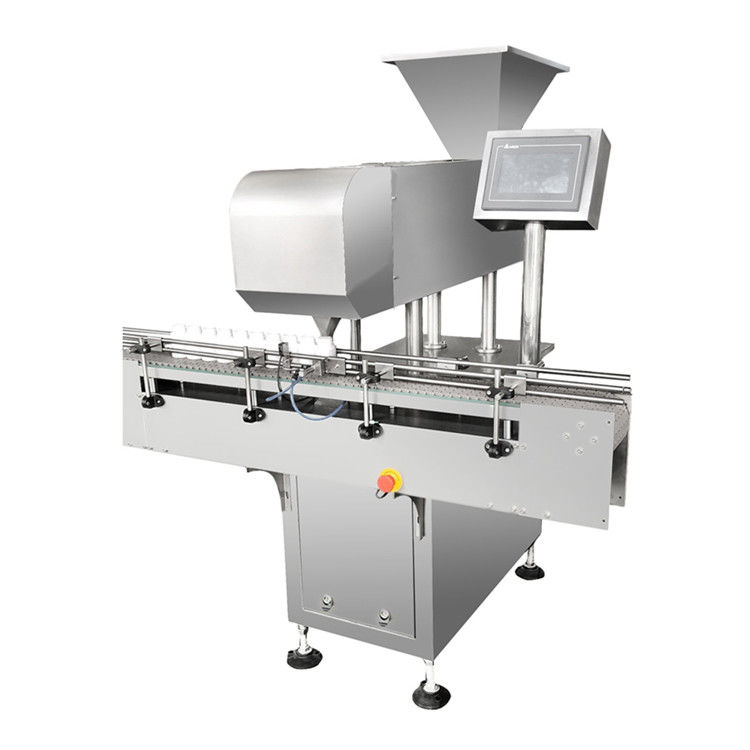

1100mm Auto Tablet Capsule Counting Machine GMP 12 Channels
  • 1100mm Auto Tablet Capsule Counting Machine GMP 12 Channels
  • 1100mm Auto Tablet Capsule Counting Machine GMP 12 Channels

1100mm Auto Tablet Capsule Counting Machine GMP 12 Channels

Place of Origin CHINA
Certification CE
Model Number LTEC series
Product Details
Capsule Counting Machine
Model No.:
Working Objects:
Filled 00#0#1#2#3#4#
Production Capacity:
500-600 Pcs/minute
Power Supply:
220V 50HZ
Overall Dimensions:
High Light:

1100mm tablet capsule counting machine


GMP tablet capsule counting machine


GMP auto tablet counting machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
wooden case
Delivery Time
10 days
Payment Terms
T/T, L/C, D/P, Western Union
Supply Ability
60 sets/month
Product Description



1. Automatically stop counting when lack of bottles.

2. Automatically stop counting when finish one Amount Counting.

3.The machine with whole body stainless steel up to GMP Standard.

4. Good over looking with touch panel operation instead of bottom control.

5. Easy adjustable and easy changeable formats suitable for all kinds of hard gelatin capsules.

6. High speed tablet counting and packing machine is composed of automatic bottle unpacking machine, automatic variable frequency double head tablet counting

7. (pellet) machine, automatic variable frequency paper stopper and capping machine, electromagnetic induction aluminum foil sealing machine and vertical labeling machine.
8. It is suitable for the whole process of counting, filling, filling, capping, sealing and labeling of tablets, pills, capsules and other special-shaped tablets in pharmaceutical, food,

9. daily chemical and other industries.


Main Features


1-Good compatibility. It can count the tablet (including special-shaped tablets), capsule, soft capsule (transparent, opaque), pill, and other solid preparations or solid particles.

2-It adopts the anti-dust photoelectric sensor technology, which can work stably in the case of high dust.

3-It has a special structure of the leaking nozzle, which can prevent material jams, and the bottle with a small mouth can also quickly filling.

4-The materials feeding is even and stable to protect materials from harm, and ensure the bottling is accurate.

5-It has many detection and alarm control functions such as no bottle and no count, fault self-test, and so on.

6-It has a photoelectric sensor automatic inspection function. It will automatically stop when there is no bottle.


Main Technical Data


Model LTEC-12 LTEC-16 LTEC-24 LTEC-32
Slide wheel 12 Channels 16 Channels 24 Channels 32 Channels
Size of Object Tablet: φ5-12mm Capsule: 00#-5# all kinds of soft capsule
Size of bottles 20-300ml
The diameter for bottles mouth 20-80mm
Output 4,000pcs/min 6,000pcs/min 8,000pcs/min 10,000pcs/min
Capacity 40bottles/min 60bottles/min 80bottle/min 100bottles/min
Power 0.9KW 0.9KW 1.35KW 1.35KW
Power supply 220V 60HZ
Air pressure 6kgs/c
Overall dimensions(mm) 1700×1700×1900 2000×1700×1900 2800×1700×1900 3200×1700×1900





1100mm Auto Tablet Capsule Counting Machine GMP 12 Channels 01100mm Auto Tablet Capsule Counting Machine GMP 12 Channels 1


Competitive Advantage:


1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho(Distributor)
