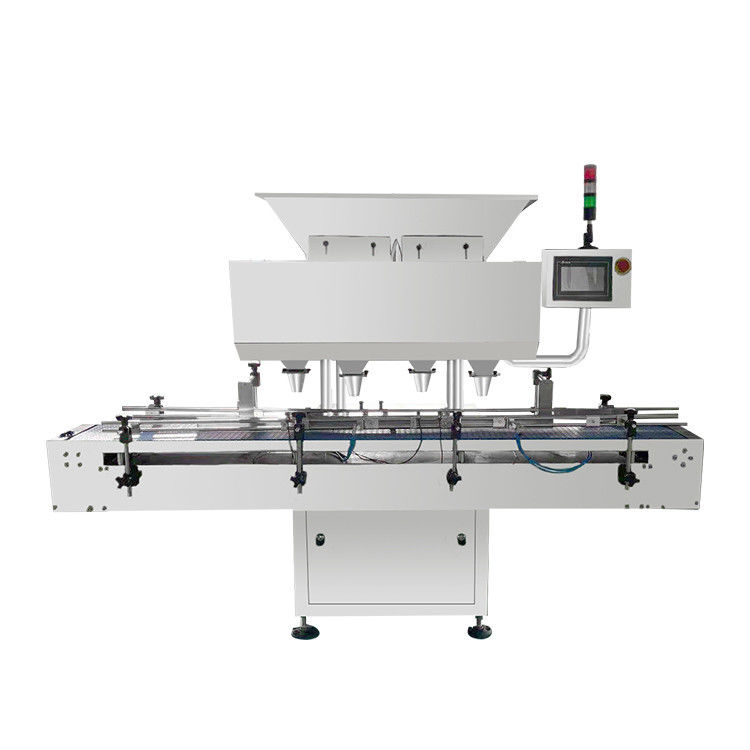

LTEC 32 Automatic Counting Machine
  • LTEC 32 Automatic Counting Machine
  • LTEC 32 Automatic Counting Machine

LTEC 32 Automatic Counting Machine

Place of Origin China
Brand Name LTPM China
Certification CE, GMP, SGS, BV
Model Number LTEC-Series
Product Details
Applicable Material:
#000-5 Capsule, Soft Capsule
Marketing Type:
Hot Product 2021
Voltage:
380/220V 50Hz
Warranty:
5 Years
Power (kW):
0.6KW
Applicable Industries:
Manufacturing Plant, Medical, Pharmaceutical, Healthcare Food
Pressure:
0.6Mpa
Usage:
Tablet Counting And Filling
High Light:

40L Automatic Counting Machine

,

LTEC 32 Automatic Counting Machine

,

LTEC 32 automatic tablet counting machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Export Standard Wooden Case
Delivery Time
25days
Payment Terms
T/T,L/C,D/P
Supply Ability
15sets/month
Product Description

Description:



The counter can count and package solid particles such as pills, tablets, capsules (transparent or opaque hard capsules, soft capsules). It is suitable for tablets, capsules, pills of 3mm to 20mm size. This machine is widely used in scientific research institutions, hospitals, pharmaceutical plants, laboratories, and health care products factories, in line with GMP requirements.



Features

- Good compatibility

You can count of the bottle of tablets(including special-shaped tablets), capsules, soft capsules (transparent, opaque), pills and other solid preparation or solid particles.



- Vibration feeding

16 alleyways vibration uniform feeding. Particular patent flap dispensing mechanism. Outputting uniformly smooth, without damaging the drugs;



- Count accuracy

Photosensor count automatically. Bottling error is less than the national standard



- Function supporting

Automatic detection of photoelectric sensor for lack of bottle, automatic stop.



- Avoid the materials jam

Hopper mouth of the special structure, to prevent the materials jam, small mouth bottle can quickly bottling.



- Protect materials from harm

Feeding and outputting all well-distributed and stable. Special patent separate bottle structure, protect materials from harm. Ensure accurate bottling.



Applications:


Capsule Counter use new patented capsule counting system that could count any quantity of capsule (including even, uneven and prime number), operation full automatic and high accuracy, also have compact structure and low noise as well.


Specifications:



Model Name LTEC-32
Application

Filled capsule(00-5#)

Soft Gelatin capsule

chewing gum

tablet

other solid object under machine range

Hopper Volume 2*40L
Capacity 12,000pcs/min
Filling Quantity 10-9999pcs/bottle (adjustable)
Bottle Size

Diameter: 30-75mm

Height:40-250mm

Counting Size

Thickness: 3-10mm

Diameter: 3-15mm

Length: 3-25mm

Compressed air 0.5Mpa
Conveyor Belt Length 3400mm
Machine Weight 950kg
Machine Size L × W × H (mm) 1900 × 3000 × 1670





Competitive Advantage:



  1. Compatibility, high accuracy, wide application and use of the Company's original anti-dust photoelectric detection of high technology, can count Tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque), pill count to bottling;
  2. Vibratory cutting drugs do not damage;
  3. A high degree of intelligence, with no bottle is not the number of self-fault detection alarm and many other control functions;
  4. Compact structure, stability and durability, and no regular replacement parts, small footprint, the use of low-cost;
  5. To facilitate the replacement of species, can automatically take-off and landing, demolition cleared without any tools, convenient and quick;
  6. Chinese dialogue control panel, can store 10 ~ 20 group of species parameters, adjusted to facilitate the use of special;
  7. Fully automatic operation, with the Upper and Lower Union Road, intelligent control of processes, coordination, and no special operation, labor-saving devices.
  8. Low prices, especially for small-volume, variety and more manufacturers use.
  9. Control chip imported to the United States, photoelectric sensors for Taiwan's imports.

LTEC 32 Automatic Counting Machine 0

LTEC 32 Automatic Counting Machine 1

LTEC 32 Automatic Counting Machine 2
