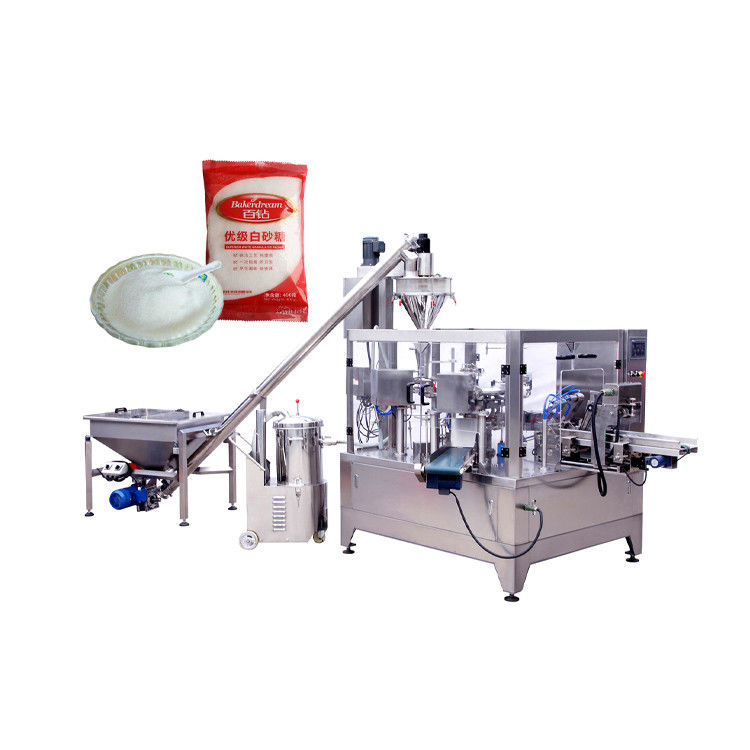

1kg Premade Bag Packing Machine 8.5kw Zipper Pouch Packing Machine
  • 1kg Premade Bag Packing Machine 8.5kw Zipper Pouch Packing Machine
  • 1kg Premade Bag Packing Machine 8.5kw Zipper Pouch Packing Machine
  • 1kg Premade Bag Packing Machine 8.5kw Zipper Pouch Packing Machine

1kg Premade Bag Packing Machine 8.5kw Zipper Pouch Packing Machine

Place of Origin Zhejiang Province,China
Brand Name LTPM CHINA
Certification CE, GMP, SGS, BV
Model Number RotaTop-Series
Product Details
Working Position:
Eight-working Position
Pouch Material:
Laminated Film PE、PP
Pouch Pattern:
W:100-210mm L:100-350mm
Filling Scope:
10-5000g( The Screw Attachment Is To Be Changed)
Speed:
10-45pouches/min(The Speed Depends On The Product Status And Flling Weight))
Voltage:
380V 3phase 50HZ/60HZ
High Light:

1kg Premade Bag Packing Machine

,

8.5kw Premade Bag Packing Machine

,

8.5kw zipper pouch packing machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Export Standard Wooden Case
Delivery Time
25 days
Payment Terms
L/C, D/A, D/P, T/T, MoneyGram
Supply Ability
45 sets/month
Product Description

RotaTop-250 Automatic 1 Kg Pouch Tea Bag Packing Machine

Working Process:

1. Giving bag:Power on, suction tip adsorbs the bag, the arm folder clamps the dial folder on the first working position.
2.Coding: The machine run to the second working position, it codes the bag.
3. Opening bag:The machine run to the third working position, it opens the bag.
4.Filling: The machine runs to the fourth working position, it fills the bag.
5.Sealing: The machine runs to the fifth working position, it checks if the bag is filled with material, then it seals the bag.
6.Forming & output packages: The machine runs to the sixth working position, it cools the bag mouth and forms& output packages. The above process carried out simultaneously by cycle



Main Features:

1.Multi-head combined weigher, improve metering speed and accuracy.
2.7 inches touch screen, easy operation and multiple language for choice.
3.Imported PLC equipment, machine performance is stable and easy for parameters adjusting.
4.With a memory function for storage 10 sets of parameters. Easy to change different packing product and package sizes.
5.Separate PID temperature controller, suitable for various packing materials.
6.Multi-union roll film pulling system makes film running more smooth.
7.Double servo film-dragging structure, enable stable bag forming for perfect bag shape.
8.Sophisticated sealing framework achieve the consistency of bag sealing and cutting.





Service:

· Debugging of equipment until everything is functional;

· If any issues happened, you can contact us to fine out a solution by phone call or online face to face communication in 12 hours;

· Training of equipment maintenance and operating personally;

· Our engineers & technician are available to be send to your countries for services if you agree pay the expenditure;

· 36 months warranty (Electric accessories)

Technical Parameters:

Working position
eight-working position
Pouch material
Laminated film PE,PP
Pouch pattern
stand-up&zipper pouch
Pouch size
W:100-210mm L:100-350mm
Filling Scope
10-5000g( The screw attachment is to be changed)
Weight Accuracy
Package weight ≤ 100g, with an error≤±2% 100 — 500g,with an error≤±1% ≥500G error≤±0.5%
Speed
10-45pouches/min(The speed depends on the product status and flling weight))
Voltage
380V 3phase 50HZ/60HZ
Total power
8.5KW
Compress air
0.6m3/min(supply by user)
Size
1900*1570*1700mm



1kg Premade Bag Packing Machine 8.5kw Zipper Pouch Packing Machine 0
