GMP Horizontal Packing Machine 17mm Doypack Pouch Filling Machine
  • GMP Horizontal Packing Machine 17mm Doypack Pouch Filling Machine
  • GMP Horizontal Packing Machine 17mm Doypack Pouch Filling Machine

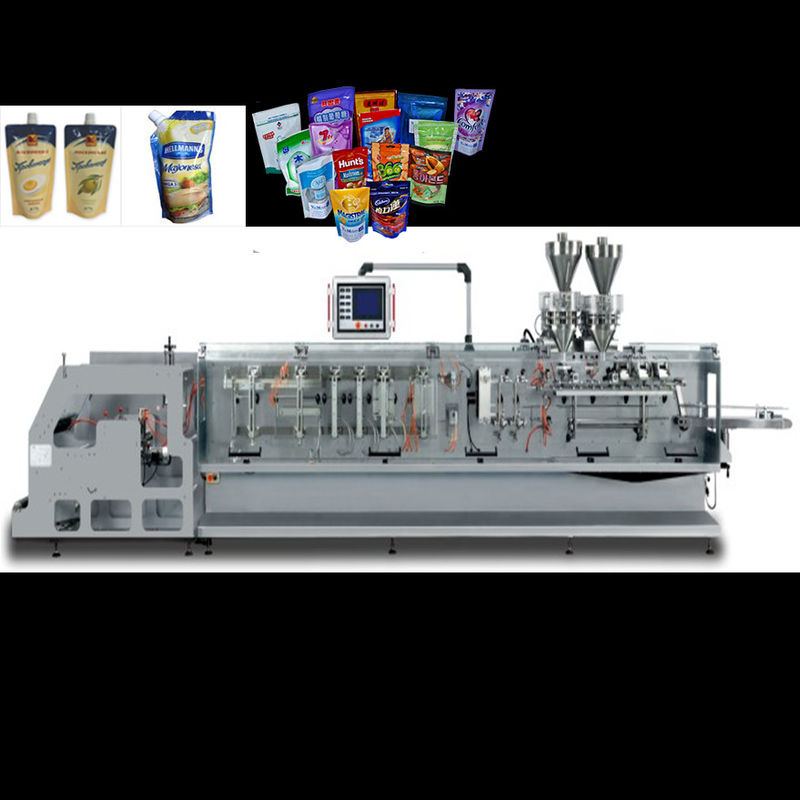

GMP Horizontal Packing Machine 17mm Doypack Pouch Filling Machine

Place of Origin China
Brand Name LTPM China
Certification CE, GMP
Model Number LTK68C
Product Details
High Light:

GMP horizontal packing machine

,

17mm horizontal packing machine

,

GMP doypack pouch filling machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Export standard wooden case
Delivery Time
25days
Payment Terms
L/C, T/T
Supply Ability
25sets/month
Product Description



Multi-Function Automatic Powder Liquid Granule Zipper Doypack Pouch Horizontal Packing Machine





Quick Detail:





Print head Dia: 55micron/65micron

Print Height: :2-17mm (adjustable)

Print Lines: 1-4lines under 36 points square.

Enlarge Times: 1-9

Print Speed: 2.5m/s

Operation System: 10.4 inches touch screen

Maintenance Period: every 2000hours.



Description:





1. High efficiency, High Speed, Fully Automatic, Highly Intelligent

2. It adopts Module Style Design with low power supply electricity system.

3. The hardware is highly integrated with reasonable structure for anti-interference purpose.

4. The printing content can be changed and amended while printing, no need to stop the production.

5. For special requirements, our Software can be highly customerized by clients.

6. It adopts advanced Ball Style viscosity controlling technology for detecting and adjusting the viscosity of     ink.





Applications:





BHD series is designed for doypack packaging need, it can make standard doypack pouches, as well as with special additional functions like zipper, hanging hole, spout or special shapes. It also has big size and duplex series, which can meet packaging requirement of big volume and high speed.





Specifications:





Pouch Width 90-180mm 100-240mm
Pouch Length 110-250mm 120-320mm
Max Volume 1000ml 1500ml
Speed 40-60pouch /min 50-60pouch /min
Accuracy 0.5-2g 0.5-2g
Electricity Consumption 9kw 11kw
Air Consumption 300NL/min 400NL/min
Weight 2100kg 2800KG
Size (L×W×H) 6600x1100x1500mm 8700mm×1250mm×1550mm





Suitable procuct:



1). Granule: It is suitable for weighing of granule, slice, roll or irregular shape materials such as candy, seed, jelly, fries, coffee granule, peanut, puffy food, biscuit, chocolate, nut, yogurt pet food, frozen foods, etc. It is also suitable for weighing small hardware and plastic component.



2). Powder product: food, medicial chemical and other powder product.





Our Product:





GMP Horizontal Packing Machine 17mm Doypack Pouch Filling Machine 0

GMP Horizontal Packing Machine 17mm Doypack Pouch Filling Machine 1

GMP Horizontal Packing Machine 17mm Doypack Pouch Filling Machine 2



FAQ:

GMP Horizontal Packing Machine 17mm Doypack Pouch Filling Machine 3
