5.5Kw Blister Packing Machine
  • 5.5Kw Blister Packing Machine
  • 5.5Kw Blister Packing Machine

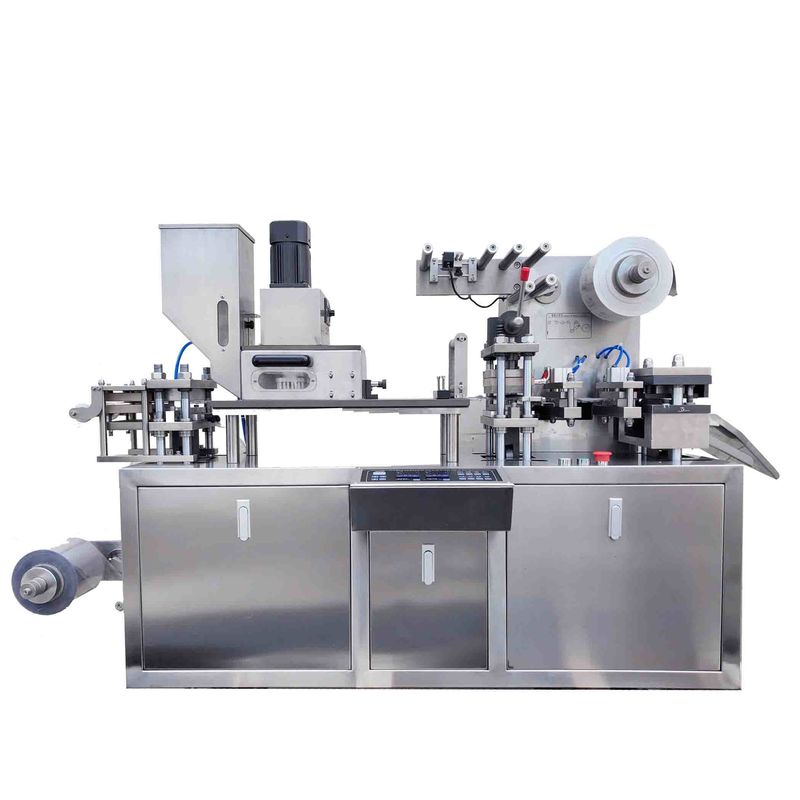

5.5Kw Blister Packing Machine

Place of Origin China
Brand Name LTPM CHINA
Certification CE
Model Number DPP-88
Product Details
Warranty:
5 Years
Condition:
New
Voltage:
380/220V 50Hz
Weight:
750kg
Applicable Industries:
Food And Medical
Core Components:
Engine
Application:
Chemical, Food, Machinery & Hardware, MEDICAL,Other
Driven Type:
Electric
High Light:

650kg Blister Packing Machine

,

5.5Kw Blister Packing Machine

,

5.5Kw pill blister pack machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Wooden Case
Delivery Time
In 25 days after receiving the deposit
Payment Terms
30% TT as deposit and 70% before shipping
Supply Ability
25 sets
Product Description

Introduction:


1. This machine adopts the latest model of high-power transmission, the row chain drive the transmission shaft, which eliminates the other gear transmission error and noise.
2. Electrical adopts the imported control systems, which can be customizing by the user. Equipped with the short shot up leakage device, missing particle detection and removed device (Omron Sensor). Adopts imported inverter.
3. This machine adopts optoelectronic system: PVC, PTP, tropical aluminum packaging and automatic feeding, waste selvage automatic material receiving device, which ensure the long-distance multi-site synchronization stability.
4. This machine adopts sub-portfolio structure: PVC informing, feeding,hot sealing; Tropical aluminum cold forming, hot sealing, blanking
5. This machine can be equipped with re-provision photoelectric detection and corrected device, equipped with imported stepper motor, photo printing and packaging, which will optimize the grades of packaging.
6. Application: capsule, tablets, pill, injection and other medicine and food, electronic components blister sealed packaging.





Specifications:



Model 88
Blanking frequency(times/min) 15-40
Sheet's quantity of one blanking(sheets) 1
Capacity(sheets/hour) 900-2100
Adjustable scope of feed travel 10-110
Max Forming(mm) 120*110*15mm
Capacity of air compressor((m3/min) ) ≥0.25
Power supply 380V 50Hz 5.5Kw
Wrapper specification(mm) PVC for medicine(mm) 120×(0.15-0.5)
Aluminum foil 120×(0.02-0.035)
Overall dimensions(mm) 1650*500*1100mm
Weight(Kg)   650





Competitive Advantage:



1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho(Distributor)
