220V 50Hz Pharmaceutical Tablet Press Machine 17mm Max Filling Depth
  • 220V 50Hz Pharmaceutical Tablet Press Machine 17mm Max Filling Depth

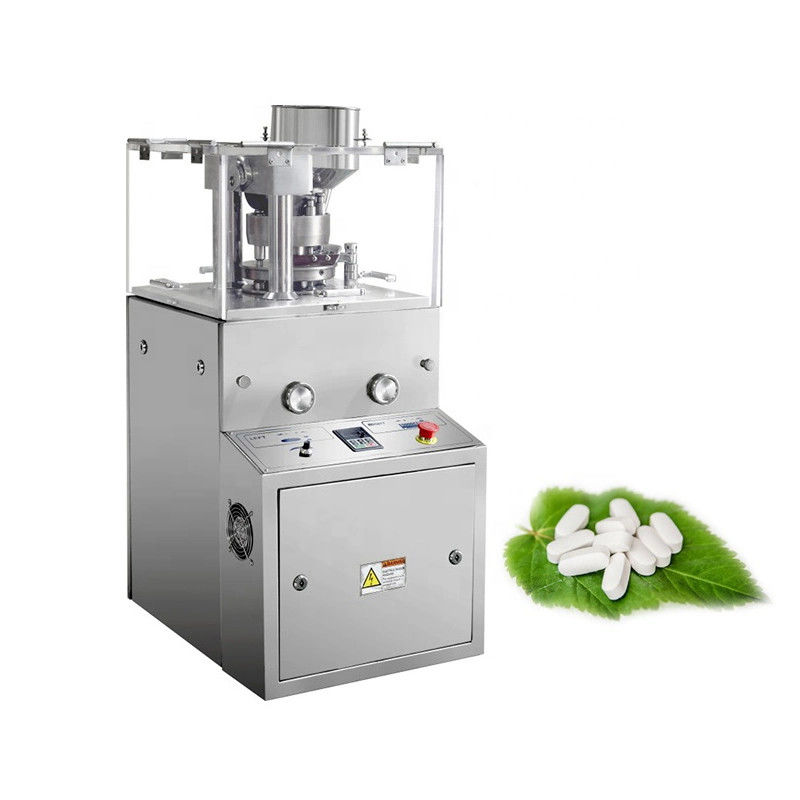

220V 50Hz Pharmaceutical Tablet Press Machine 17mm Max Filling Depth

Place of Origin China
Brand Name LTPM CHINA
Certification CE Certificate
Model Number ZP-Series
Product Details
Max Thickness Of Tablet:
7mm
Dimension:
1300×1400×1850 Mm
Max Filling Depth:
17mm
Power:
220V/50Hz
Weight:
2000kg
Safety System:
Emergency Stop Button
Max Tablet Diameter:
28mm
High Light:

Stainless PLC Tablet Compression Machine

,

Tablet Press Machine 17mm

,

220V Tablet Compression Machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiation
Packaging Details
Wooden Case
Delivery Time
In 35 days after receiving the deposit
Payment Terms
30% TT as deposit and 70% before shipping
Supply Ability
25 sets/ month
Product Description

Product Description:

This machine is a perfect fit for the production of small scale pharmaceutical tablets. It offers the production of tablets via two distinctive steps, namely main pressing and pre-pressing. The components used are easy to fix and disassemble which promotes an easier and faster cleaning process. It is easy to use and maintain, and runs in a reliably stable and durable manner. The machine meets all the guidelines for Good Manufacturing Practice (GMP). It is capable of discretional pressing of round tablets, engraved tablets, and multiple types of irregular tablets (such as candy, calcium tablets, etc.) with double-sided letter printing and is widely preferable by the industries such as pharmaceutical, chemical, food, electronic, and powder metallurgy.

220V 50Hz Pharmaceutical Tablet Press Machine 17mm Max Filling Depth 0

Features:

  • Product Name: Tablet Press Machine
  • Operation System: Touch Screen
  • Dimension: 1300×1400×1850 Mm
  • Safety System: Emergency Stop Button
  • Material: Stainless Steel
  • Tablet Compacting Machine: Yes
  • Tablet Pressing Machine: Yes
  • Tablet Press Machine: Yes


Technical Parameters:

Tablet Press Machine Technical Parameters
Max Production Capacity 60000-85000 Tablets/hour
Material Stainless Steel
Control System PLC Control
Power 220V/50Hz
Max Thickness of Tablet 7mm
Max Filling Depth 17mm
Weight 2000kg
Rotational Speed 14-30 Rpm
Max Pressure 80KN


Applications:

The Tablet Pressing Machine from LTPM CHINA is a practical and cost-effective tablet forming machine for industrial use. Model ZP-Series is certified with CE and comes with a minimum order quantity of 1 set. The price is negotiable and the packaging details are wooden case. The delivery time is in 35 days after receiving the deposit and the payment terms are 30% TT as deposit and 70% before shipping. The supply ability is 25 sets/ month.

The operation system is touch screen and the power is 220V/50Hz. The weight of the machine is 2000Kg and the max thickness of the tablet is 7mm. The dimension of the machine is 1300×1400×1850 Mm.



Customization:

Tablet Compression Machine, Tablet Pressing Machine, Tablet Forming Machine
  • Brand Name: LTPM CHINA
  • Model Number: ZP-Series
  • Place of Origin: China
  • Certification: CE Certificate
  • Minimum Order Quantity: 1 Set
  • Price: Negotiation
  • Packaging Details: Wooden Case
  • Delivery Time: In 35 days after receiving the deposit
  • Payment Terms: 30% TT as deposit and 70% before shipping
  • Supply Ability: 25 sets/ month
  • Product Name: Tablet Press Machine
  • Weight: 2000kg
  • Control System: PLC Control
  • Max Thickness of Tablet: 7mm


FAQ:

Q1: What is the brand name of this tablet press machine?
A1: The brand name of this tablet press machine is LTPM CHINA.

Q2: What is the model number of this tablet press machine?
A2: The model number of this tablet press machine is ZP-Series.

Q3: Where is this tablet press machine made?
A3: This tablet press machine is made in China.

Q4: What certification does this tablet press machine have?
A4: This tablet press machine has CE certification.

Q5: What is the minimum order quantity for this machine?
A5: The minimum order quantity for this tablet press machine is 1 set.
