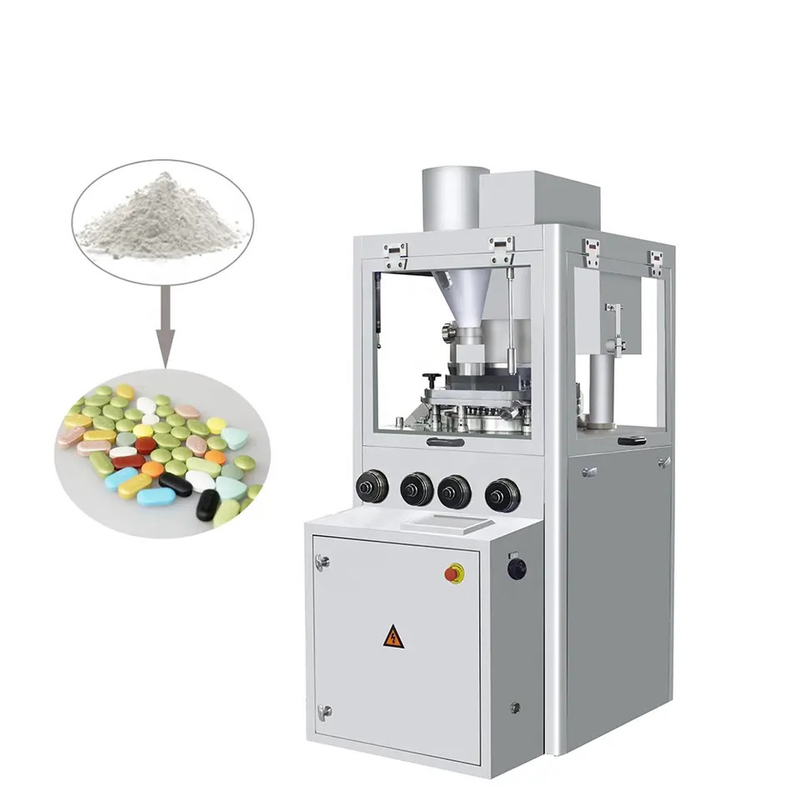

Tablet Press Machine
>
|
|
| Place of Origin | China |
| Brand Name | LTPM CHINA |
| Certification | CE |
| Model Number | ZP-Series |
1. Adopts PLC control with auto protective function;
2. Touch screen operation. Operation menu is easy to understand;
3. Force-feeding unit with a good applicability to powder;
4. Central auto lubrication system;
5. Main and pre-pressing, tablets formed twice.
6. Force-feeding system is capable to increase the feeding ability and prevent thick granules separating from fine granules effectively.
7. All the parts are easy to be fixed, disassembled and cleaned.
Technical Data
(The following is the data of each series of super-large production models.)
| No. of stations | 26 |
| Tooling type | D |
| Output range (Tablets/h) | 34000~171000 |
| Rotation speed range (rpm) | 22~110RPM |
| Main pressure | 100KN |
| Pre-pressure | 16KN |
| Max. filling depth | 20mm |
| Max tablet diameter | Φ25mm |
| Max length of irregular tablet | 25 mm |
| Diameter of die | Φ38.1mm |
| Diameter of punch | 25.35mm |
| Pitch circle diameter | 370mm |
| Length of punch | 133.6mm |
| Main motor power | 7.5kw |
| Dimension of machine L*W*H(mm) | 820*1100*1750mm |
| Weight | 1600kg |
